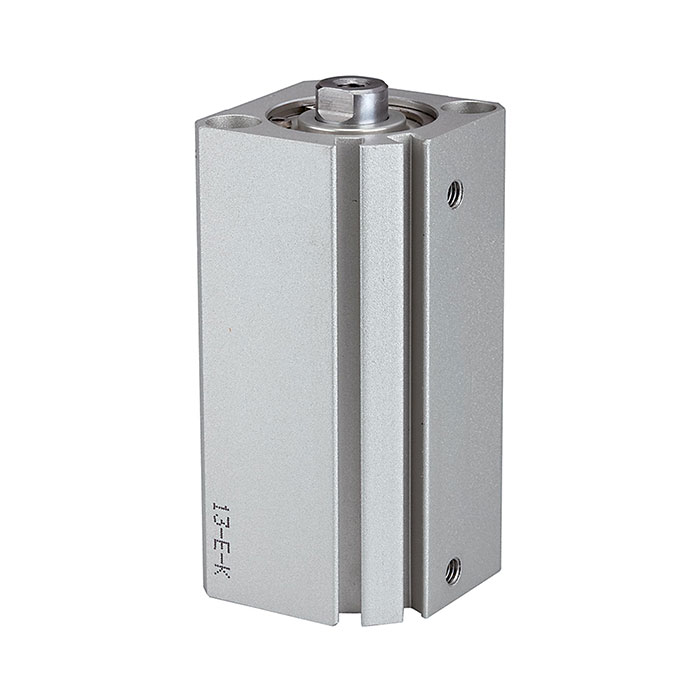

RIEGLER Short stroke cyl., double-acting, Piston Ø 25, Stroke 70, M5x0,8
Type number: 12.DMI.25070
EAN: 4047322317832
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short-stroke cylinder "ACQ" double-acting, solenoid, internal thread, piston Ø 25, stroke 70, connection M5x0.8, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 25 mm |
| Design | 2 |
| Function | double-acting |
| Stroke | 70 mm |
| Piston rod Ø | 12 mm |
| Piston rods IG | M6x1.0 |
| Connection | M5x0.8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
