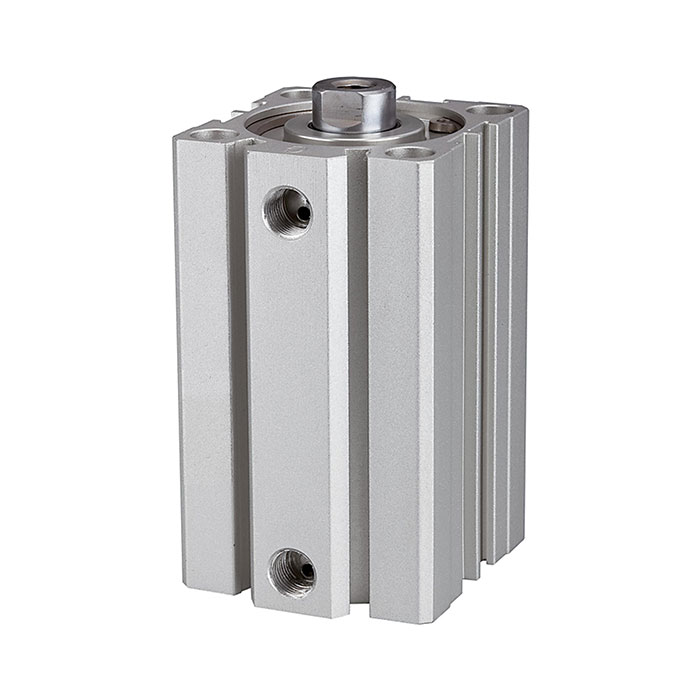

RIEGLER Short stroke cyl., double-acting, Piston Ø 32, Stroke 55, G 1/8
Type number: 12.DMI.32055
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder "ACQ" double-acting, solenoid, internal thread, piston Ø 32, stroke 55, connection G 1/8, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 32 mm |
| Design | 3 |
| Function | double-acting |
| Stroke | 55 mm |
| Piston rod Ø | 16 mm |
| Piston rods IG | M8x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
