RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 25, G 1/4
Type number: 12.DMI.50025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

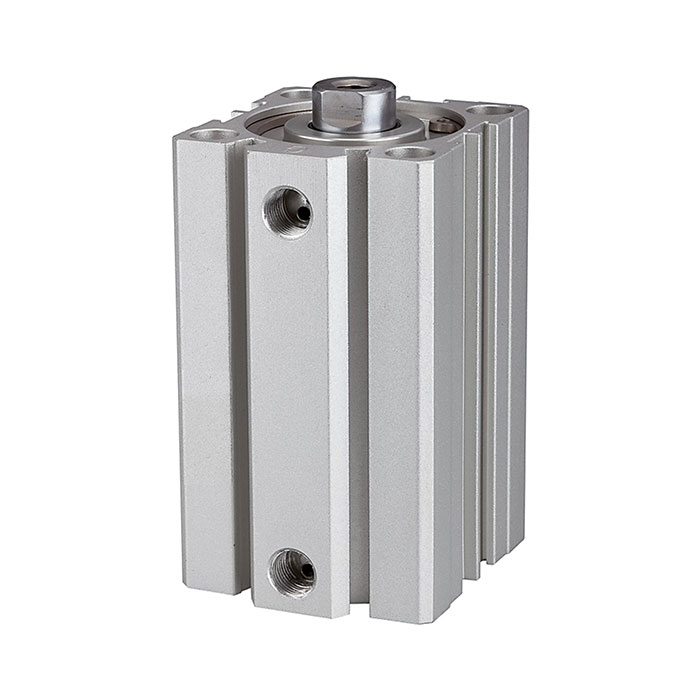

RIEGLER Short-stroke cylinder "ACQ" double-acting for automation technology, max. 10 bar, G 1/4 - Type 12.DMI.50025
The RIEGLER short-stroke cylinder "ACQ" double-acting, piston Ø 50, stroke 25, G 1/4 offers compact pneumatic drive solutions for confined installation spaces. with NBR seals. The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. G 1/4 connection thread - suitable for common industry standards. With piston Ø 50 mm, stroke 25 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 3 |
| Function | double-acting |
| Stroke | 25 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
