RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 75, G 1/4
Type number: 12.DMI.50075
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder "ACQ" double-acting, solenoid, internal thread, piston Ø 50, stroke 75, connection G 1/4, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 3 |
| Function | double-acting |
| Stroke | 75 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=5e82d9c)
|
Type number: 235.101 |
9.20 € | |
![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=89d98ee)
|
Type number: 235.102 |
21.13 € | |
![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=9fd93a4)
|
Type number: 235.103 |
18.77 € | |
![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=6d19833)
|
Type number: 235.104 |
21.13 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=ba2945a)
|
Type number: 235.105 |
18.77 € | |
![[115872] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 50](/web/image/product.template/200605/image_128/%5B115872%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050?unique=7dc0a23)
|
Type number: 437.506 |
5.52 € | |

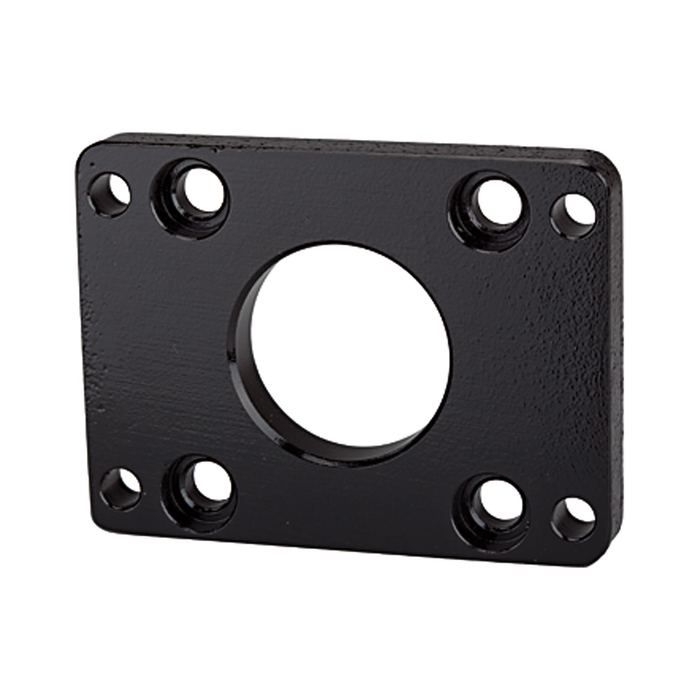

![[115882] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 50](/web/image/product.template/200615/image_128/%5B115882%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050?unique=8fdc296)
|
Type number: 437.516 |
7.27 € | |

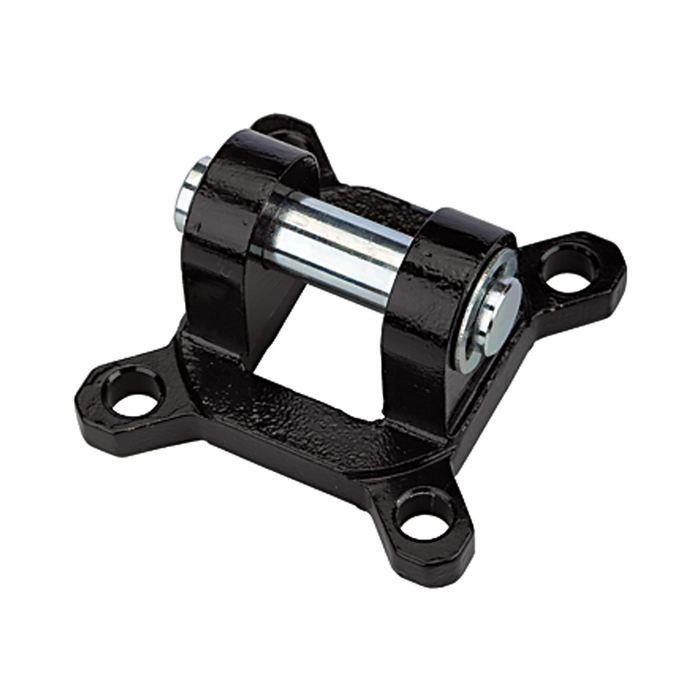

![[115892] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 50](/web/image/product.template/200625/image_128/%5B115892%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%2050?unique=28263b6)
|
