RIEGLER Short stroke cyl., double-acting, Piston Ø 63, Stroke 20, G 1/4
Type number: 12.DMI.63020
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder "ACQ" double-acting, solenoid, internal thread, piston Ø 63, stroke 20, connection G 1/4, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 63 mm |
| Design | 3 |
| Function | double-acting |
| Stroke | 20 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

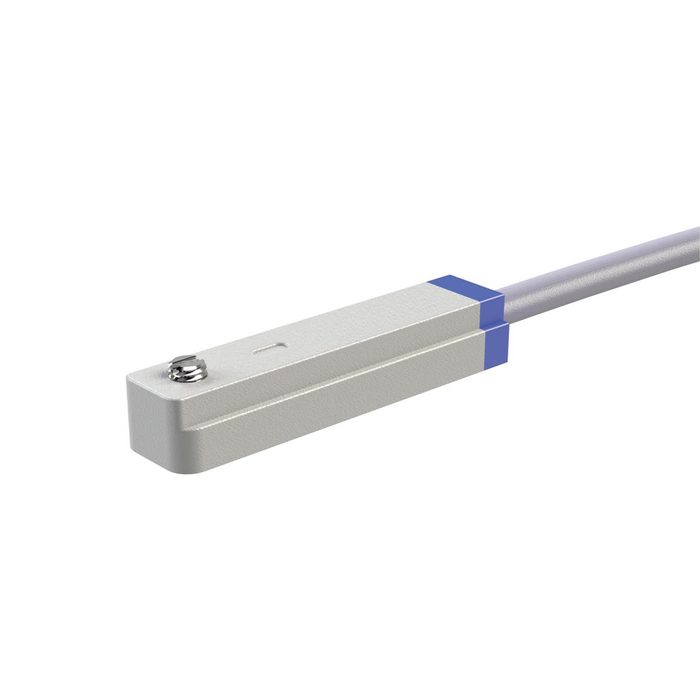

![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=5e82d9c)
|
Type number: 235.101 |
9.20 € | |
![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=89d98ee)
|
Type number: 235.102 |
21.13 € | |

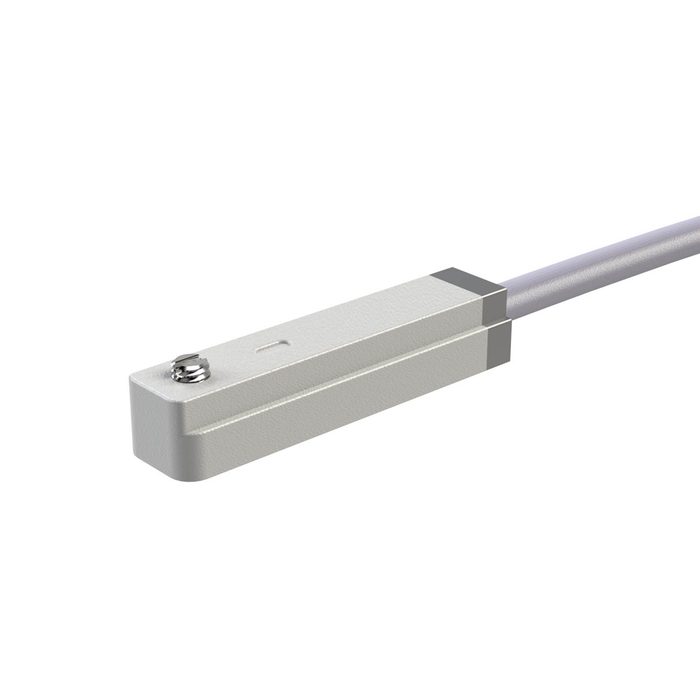

![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=9fd93a4)
|
Type number: 235.103 |
18.77 € | |
![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=6d19833)
|
Type number: 235.104 |
21.13 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=ba2945a)
|
Type number: 235.105 |
18.77 € | |
![[115873] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 63](/web/image/product.template/200606/image_128/%5B115873%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2063?unique=6dee0ae)
|
Type number: 437.507 |
6.60 € | |

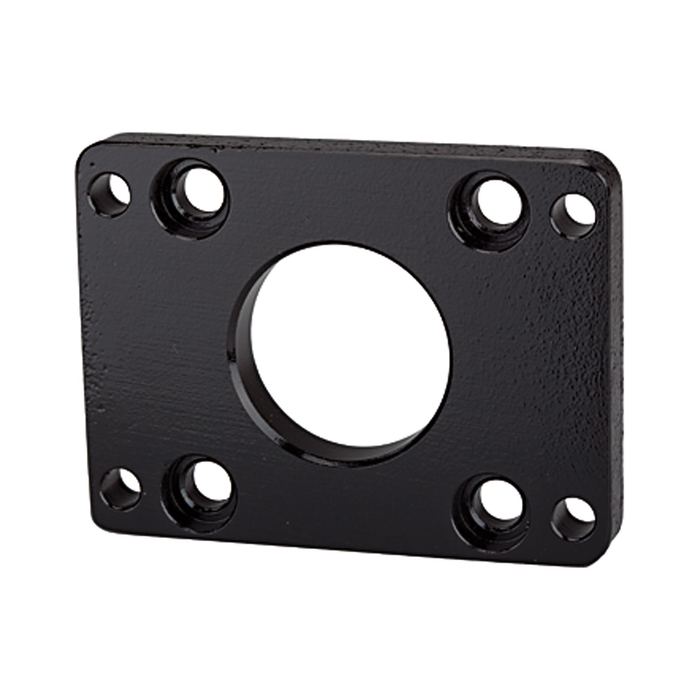

![[115883] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 63](/web/image/product.template/200616/image_128/%5B115883%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2063?unique=b2a0d05)
|
Type number: 437.517 |
9.53 € | |

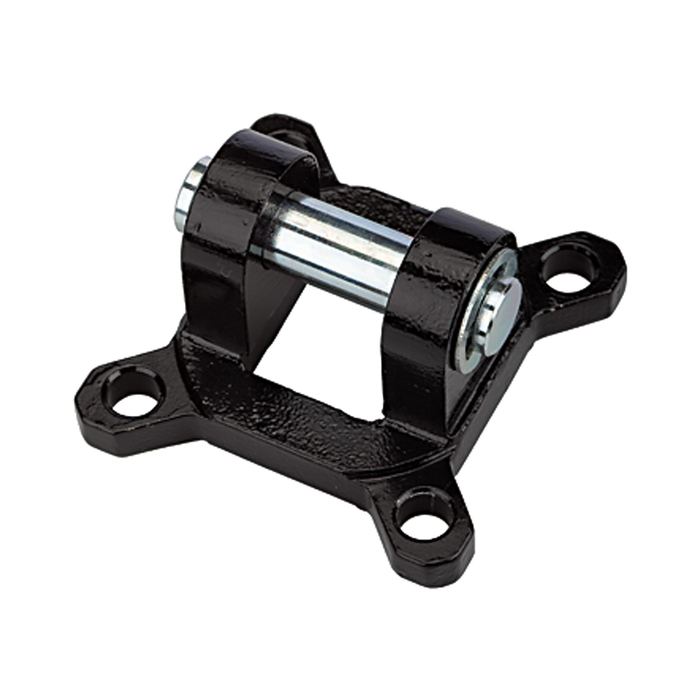

![[115893] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 63](/web/image/product.template/200626/image_128/%5B115893%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%2063?unique=d87cb96)
|
Type number: 437.527 |
12.04 € | |
![[115907] RIEGLER Fork head »Y« for short stroke cylinder, Piston Ø 50-63](/web/image/product.template/200640/image_128/%5B115907%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2050-63?unique=f313f65)
|
Type number: 438.10D63CQ |
23.48 € | |
![[116943] RIEGLER Sensor »CS1« Kurzhubzyl. »ACQ«/»ASQ«, REED, 2-Draht, M8, NO](/web/image/product.template/267777/image_128/%5B116943%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Kurzhubzyl.%20%C2%BBACQ%C2%AB-%C2%BBASQ%C2%AB%2C%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=614329c)
|
Type number: 235.100-1 |
11.63 € | |
