RIEGLER Angled connection »value line«, for hose 10/8 mm, AF 11
Type number: 13.800-10-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkelverbinder »value line«, für Schlauch 10/8 mm, SW 11, Betriebsdruck max. 18 bar, Messing vernickelt
| Max. operating pressure | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature max. | 200 °C |
| Recommended hose | PA, PE, PU |
| SW | 11 mm |
| for hose | 10/8 mm |
| L1 | 25.5 mm |
| L2 | 25.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | without |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

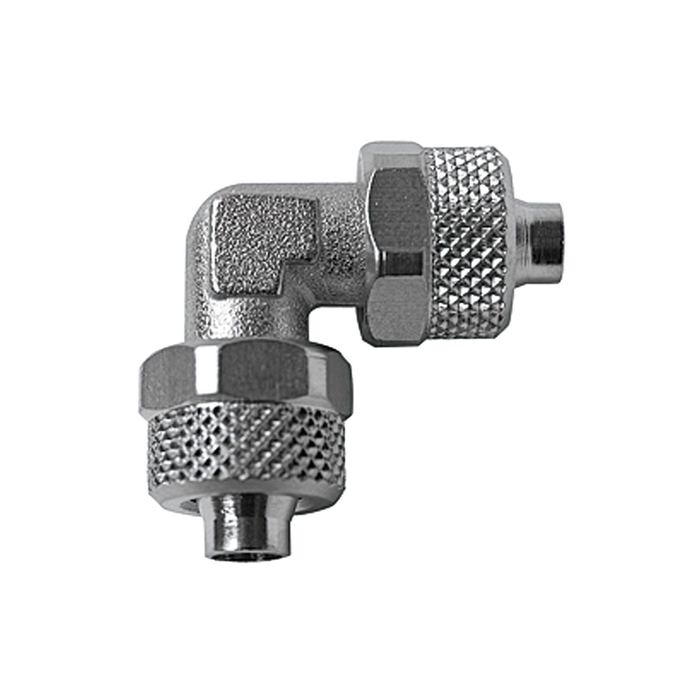

![[115239] RIEGLER Angled connection »value line«, for hose 6/4 mm, AF 8](/web/image/product.template/199096/image_128/%5B115239%5D%20RIEGLER%20Angled%20connection%20%C2%BBvalue%20line%C2%AB%2C%20for%20hose%206-4%20mm%2C%20AF%208?unique=4a5c0b5)
|
