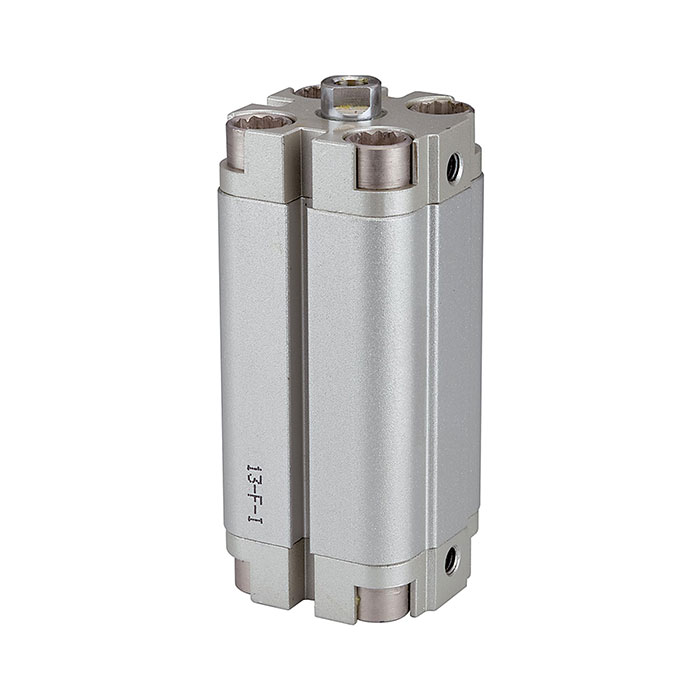

RIEGLER Compact cylinder, double-acting, Piston Ø 12, Stroke 5, M5x0,8
Type number: 13.DM.12005
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact cylinder "ACP" double-acting for automation technology, max. 10 bar, M5x0.8 - Type 13.DM.12005

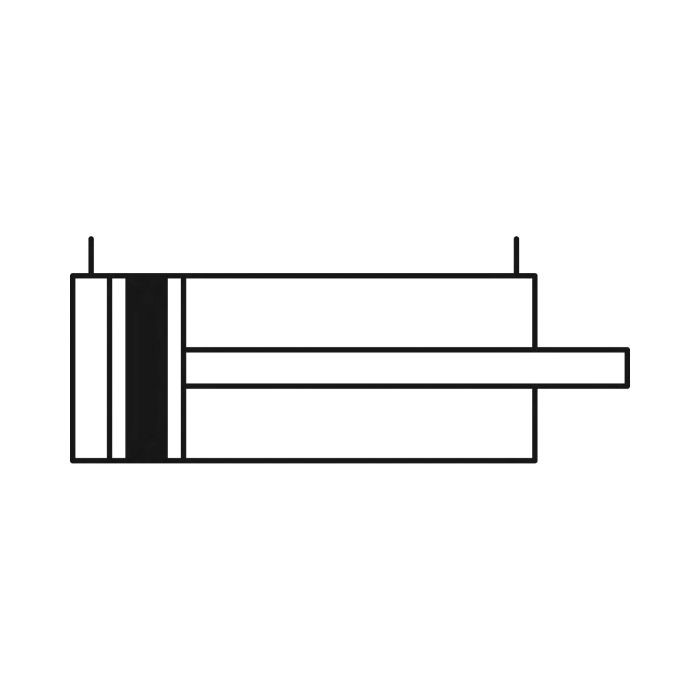

The RIEGLER compact cylinder "ACP" double-acting, piston Ø 12, stroke 5, M5x0.8 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. with NBR seals. The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread M5x0.8 - suitable for common industry standards. With piston Ø 12 mm, stroke 5 mm, piston rod stainless steel 1.1191 - for powerful linear actuator solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACP series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 12 mm |
| Function | double-acting |
| Stroke | 5 mm |
| Piston rod Ø | 6 mm |
| Piston rods IG | M3x0.5 |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.1191 |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Thread piston rod | Internal thread on the piston rod |
