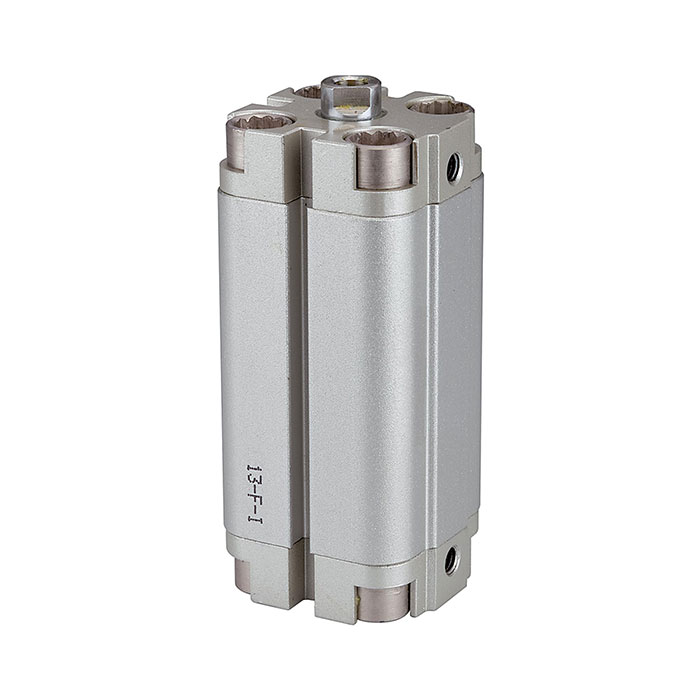

RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 10, G 1/8

Price:

50.04 €
    ​
English (US)
  2. Shop
  3. Compact Cylinders - ACP Series
  4. RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 10, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 90, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 90, G 1/8
51.54 € 51.54 €
RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 20, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 20, G 1/8
53.05 € 53.05 €

RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 10, G 1/8

https://www.filcom-technik.de/web/image/product.template/198874/image_1920?unique=4a2d809

Type number: 13.DM.50010

EAN: 4047322321808

50.04 € 50.04 EUR 50.04 € VAT Included

70.08 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us

    Product no. :

    115358

    EAN :

    4047322321808

    Category :

    Compact Cylinders - ACP Series

    Weight :

    0.65 kg

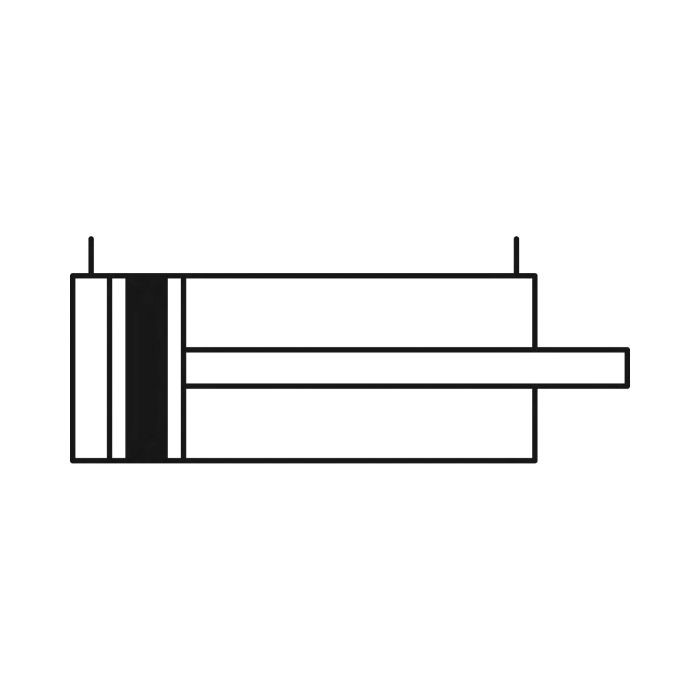

    Compact cylinder "ACP", double-acting, solenoid, piston Ø 50, stroke 10, connection G 1/8, working pressure 1-10 bar, temp. -20 °C to 70 °C

    Temperature range min. -20 °C
    Temperature range max. 70 °C
    Sealing material NBR
    Series ACP series
    Working pressure min. 1 bar
    Working pressure max. 10 bar
    Pipe Aluminum
    Piston Ø 50 mm
    Function double-acting
    Stroke 10 mm
    Piston rod Ø 16 mm
    Piston rods IG M8x1.25
    Connection G 1/8
    Piston rod Steel
    Piston Aluminum
    Class name EASY
    Magnet with magnet
    Thread piston rod Internal thread on the piston rod
    ​
