RIEGLER Extension piece short »value line«, G 3/8 o., G 1/2 i.
Type number: 230.07-N-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Extension piece short "value line" for pipeline construction, max. 60 bar - Type 230.07-N-E
The RIEGLER extension piece short "value line" G 3/8 a., G 1/2 i., MS nickel-plated is a high-quality accessory from the RIEGLER range. Designed for a maximum operating pressure of 60 bar. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| SW | 24 mm |

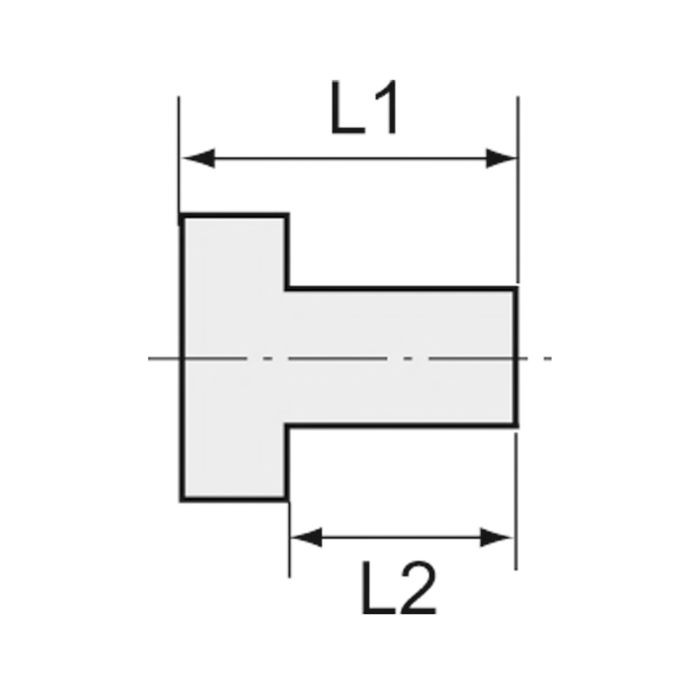

| L1 | 27 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/2 |
| External thread | G 3/8 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
