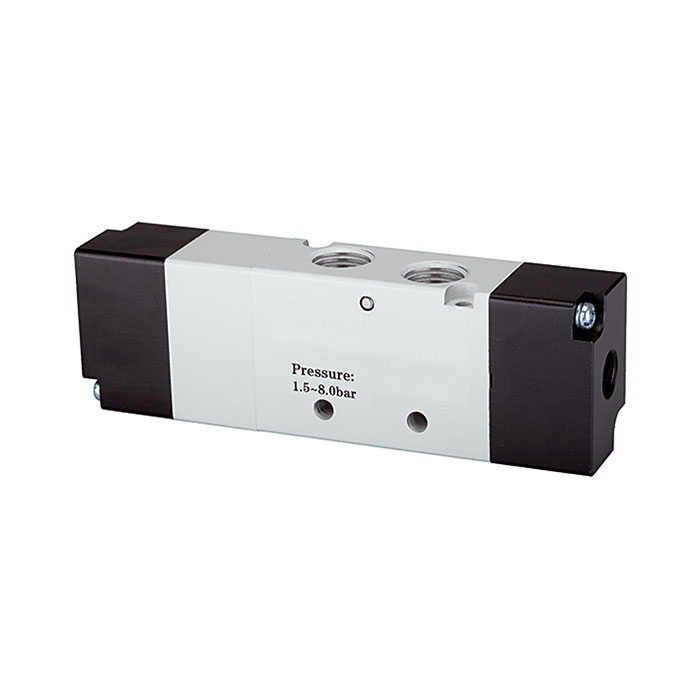

RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 1/4
Type number: 516.7004
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/3-way valve for pneumatic control, max. 8 bar, G 1/4 - Type 516.7004
The RIEGLER 5/3-way valve, pneumatic, "4A" center exhaust, G 1/4, 950 l/min controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 1.5 bar to 8 bar. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 950 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 950 l/min |
| Function | 5/3 |
| Actuation | Center vented |

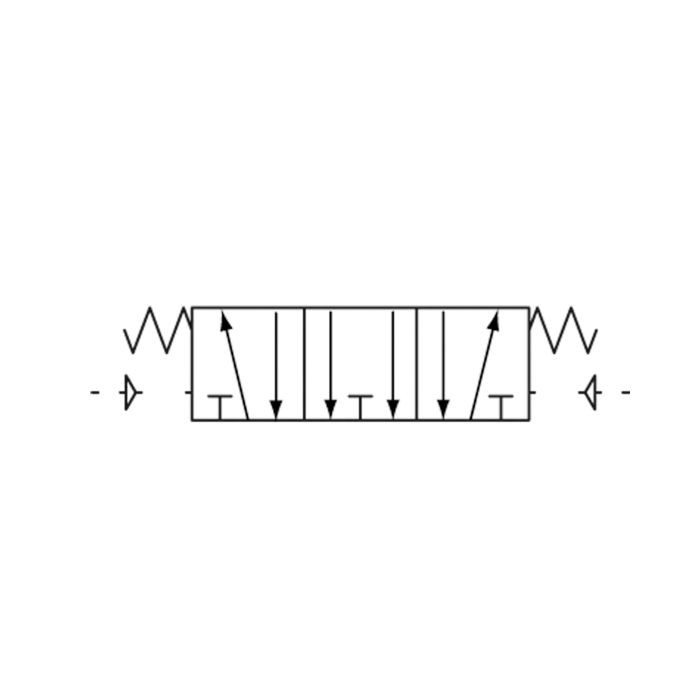

| Symbol | 30 |
| BG | 300 |
| Venting connection | G 1/4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116079] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 1/2](/web/image/product.template/200812/image_128/%5B116079%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20G%201-2?unique=606126a)
|
Type number: 516.7006 |
107.24 € | |
![[116076] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 1/4](/web/image/product.template/200809/image_128/%5B116076%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20G%201-4?unique=f7023d0)
|
Type number: 516.7003 |
44.89 € | |
![[116074] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 1/8](/web/image/product.template/200807/image_128/%5B116074%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20G%201-8?unique=1481cbe)
|
Type number: 516.7001 |
42.80 € | |
![[116075] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 1/8](/web/image/product.template/200808/image_128/%5B116075%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20G%201-8?unique=fd49f10)
|
Type number: 516.7002 |
44.89 € | |
![[116078] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, G 3/8](/web/image/product.template/200811/image_128/%5B116078%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20G%203-8?unique=3093f9f)
|
Type number: 516.7005 |
48.56 € | |
![[116073] RIEGLER 5/3-way valve, Pneumatic, »4A«, Centre vented, M5](/web/image/product.template/200806/image_128/%5B116073%5D%20RIEGLER%205-3-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20Centre%20vented%2C%20M5?unique=ab0af8a)
|
Type number: 516.7000 |
42.80 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116246] RIEGLER Multi-base plate, 5/2-5/3-way valves, 2 positions, G 1/4, G 3/8](/web/image/product.template/200979/image_128/%5B116246%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%202%20positions%2C%20G%201-4%2C%20G%203-8?unique=c430201)
|
Type number: 5520.02-38 |
15.18 € | |
![[116250] RIEGLER Multi-base plate, 5/2-5/3-way valves, 3 positions, G 1/4, G 3/8](/web/image/product.template/200983/image_128/%5B116250%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%203%20positions%2C%20G%201-4%2C%20G%203-8?unique=45717a7)
|
Type number: 5520.03-38 |
22.98 € | |

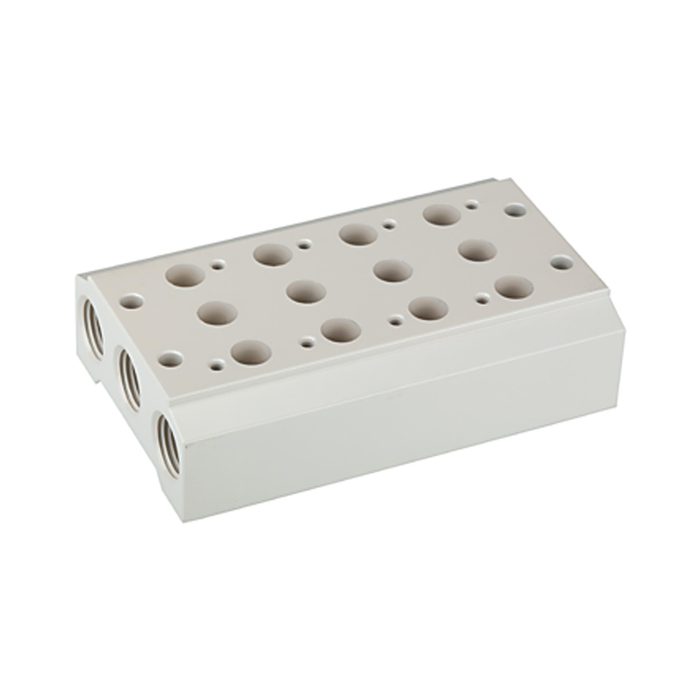

![[116254] RIEGLER Multi-base plate, 5/2-5/3-way valves, 4 positions, G 1/4, G 3/8](/web/image/product.template/200987/image_128/%5B116254%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%204%20positions%2C%20G%201-4%2C%20G%203-8?unique=70bfb8a)
|
Type number: 5520.04-38 |
30.36 € | |
![[116258] RIEGLER Multi-base plate, 5/2-5/3-way valves, 5 positions, G 1/4, G 3/8](/web/image/product.template/200991/image_128/%5B116258%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%205%20positions%2C%20G%201-4%2C%20G%203-8?unique=dfaf67f)
|
Type number: 5520.05-38 |
38.18 € | |
![[116262] RIEGLER Multi-base plate, 5/2-5/3-way valves, 6 positions, G 1/4, G 3/8](/web/image/product.template/200995/image_128/%5B116262%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%206%20positions%2C%20G%201-4%2C%20G%203-8?unique=0a55c92)
|
Type number: 5520.06-38 |
45.54 € | |

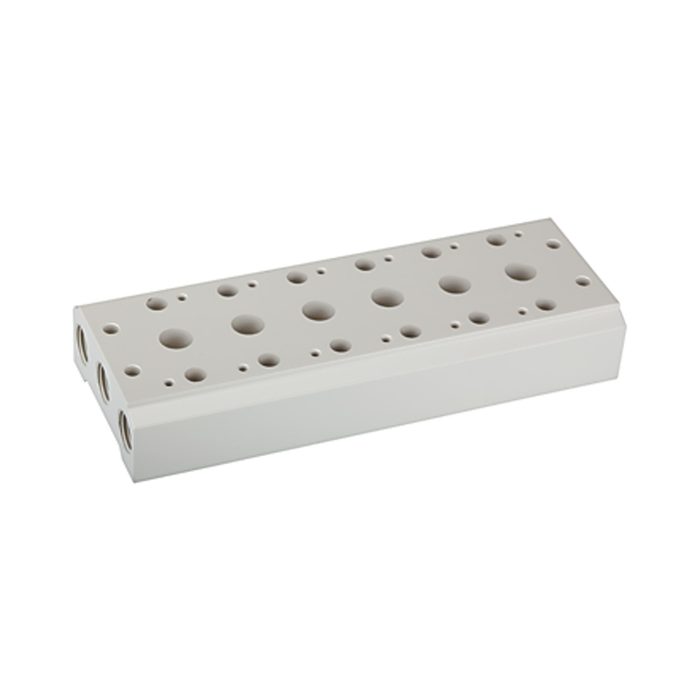

![[116266] RIEGLER Multi-base plate, 5/2-5/3-way valves, 7 positions, G 1/4, G 3/8](/web/image/product.template/200999/image_128/%5B116266%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%207%20positions%2C%20G%201-4%2C%20G%203-8?unique=02e7fff)
|
