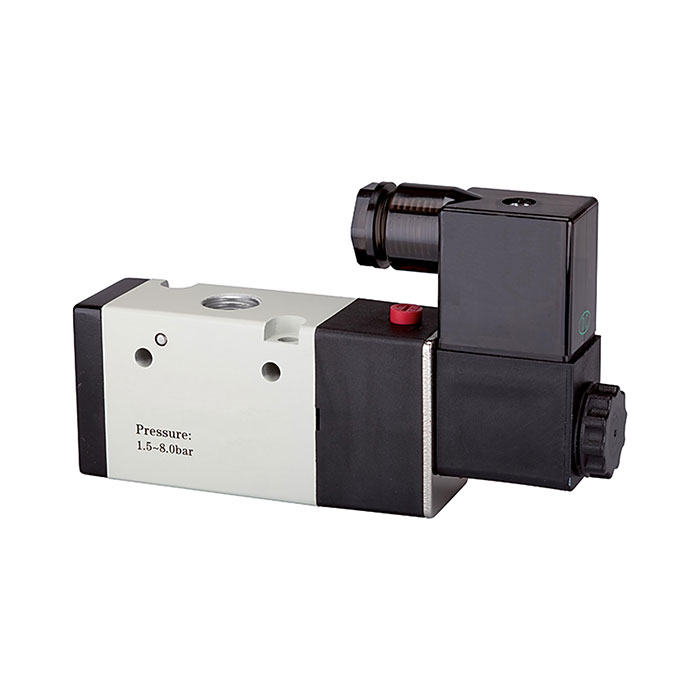

RIEGLER 3/2-way valve, electropneumatic »3V« monostable, NO, 230 V, 50 Hz
Type number: 517.1103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
116096EAN :
4047322310154Category :
Valves Electropneumatically OperatedWeight :
0.21 kgRIEGLER 3/2-way valve electropn. for pneumatic control, max. 8 bar, G 1/4 - Type 517.1103
The RIEGLER 3/2-way valve electropneumatic, monostatic, NO, G 1/4, 230 V, 50 Hz, 850 l/min controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 1.5 bar to 8 bar. The temperature range is between -20 °C and 70 °C. G 1/4 connection thread - suitable for common industry standards. The flow rate is 850 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Operating voltage 230 V, 50 Hz, protection class IP 65. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Protection class | IP 65 |
| Electrical connection | Cable plug form B according to ISO 4400 |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Working pressure min. | 1.5 bar |
| Valve body | Aluminum alloy |
| Manual override | latching/touching |
| Flow rate | 850 l/min |
| Function | 3/2 NO |
| Actuation | monostable |
| Symbol | 32 |
| BG | 200 |
| Tension | 230 V, 50 Hz |
| Venting connection | G 1/4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
