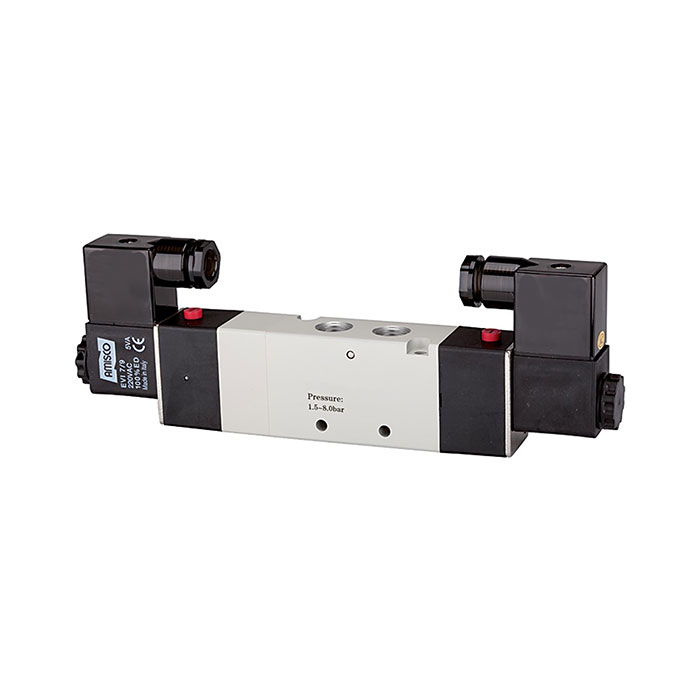

RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz
Type number: 517.3302
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
116174EAN :
4047322311007Category :
Valves Electropneumatically OperatedWeight :
0.34 kg5/3-way valve, electropneumatic, »4V«, Centre vented, G 1/8, 230 V, 50 Hz, Operating pressure 1.5-8 bar, Temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Protection class | IP 65 |
| Electrical connection | Cable plug form B according to ISO 4400 |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Working pressure min. | 1.5 bar |
| Valve body | Aluminum alloy |
| Manual override | latching/touching |
| Flow rate | 550 l/min |
| Function | 5/3 |
| Actuation | Center vented |
| Symbol | 38 |
| BG | 200 |
| Tension | 230 V, 50 Hz |
| Venting connection | G 1/8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116172] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200905/image_128/%5B116172%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=b47dc2e)
|
Type number: 517.3300 |
94.70 € | |
![[116173] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200906/image_128/%5B116173%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=fb83282)
|
Type number: 517.3301 |
94.70 € | |
![[116175] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200908/image_128/%5B116175%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=348e49e)
|
Type number: 517.3303 |
99.07 € | |
![[116176] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200909/image_128/%5B116176%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=d46abda)
|
Type number: 517.3304 |
107.90 € | |
![[116177] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200910/image_128/%5B116177%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=b5de4b6)
|
Type number: 517.3305 |
107.90 € | |
![[116178] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 230 V, 50 Hz](/web/image/product.template/200911/image_128/%5B116178%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%20230%20V%2C%2050%20Hz?unique=2cb6747)
|
Type number: 517.3306 |
148.21 € | |
![[116165] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200898/image_128/%5B116165%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=656e581)
|
Type number: 517.3200 |
94.70 € | |
![[116171] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200904/image_128/%5B116171%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=97da604)
|
Type number: 517.3206 |
148.21 € | |
![[116166] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200899/image_128/%5B116166%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=b28db9b)
|
Type number: 517.3201 |
94.70 € | |
![[116167] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200900/image_128/%5B116167%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=ae63684)
|
Type number: 517.3202 |
99.07 € | |
![[116168] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200901/image_128/%5B116168%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=eb9e5ae)
|
Type number: 517.3203 |
99.07 € | |
![[116169] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200902/image_128/%5B116169%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=64b6cb2)
|
Type number: 517.3204 |
107.90 € | |
![[116170] RIEGLER 5/3-way valve, electropneumatic, »4V« Centre vented, 24 V DC](/web/image/product.template/200903/image_128/%5B116170%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20%C2%BB4V%C2%AB%20Centre%20vented%2C%2024%20V%20DC?unique=6691742)
|
Type number: 517.3205 |
107.90 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

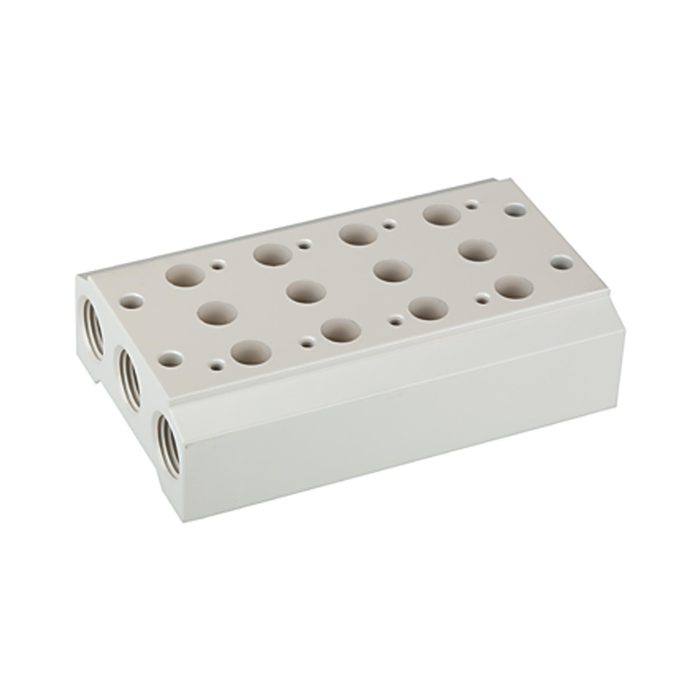

![[116244] RIEGLER Multi-base plate, 5/2-5/3-way valves, 2 positions, G 1/8, G 1/4](/web/image/product.template/200977/image_128/%5B116244%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%202%20positions%2C%20G%201-8%2C%20G%201-4?unique=3de4d99)
|
Type number: 5520.02-14 |
10.47 € | |
![[116248] RIEGLER Multi-base plate, 5/2-5/3-way valves, 3 positions, G 1/8, G 1/4](/web/image/product.template/200981/image_128/%5B116248%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%203%20positions%2C%20G%201-8%2C%20G%201-4?unique=a665a5e)
|
Type number: 5520.03-14 |
15.70 € | |
![[116252] RIEGLER Multi-base plate, 5/2-5/3-way valves, 4 positions, G 1/8, G 1/4](/web/image/product.template/200985/image_128/%5B116252%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%204%20positions%2C%20G%201-8%2C%20G%201-4?unique=2d6d4d0)
|
Type number: 5520.04-14 |
20.92 € | |
![[116256] RIEGLER Multi-base plate, 5/2-5/3-way valves, 5 positions, G 1/8, G 1/4](/web/image/product.template/200989/image_128/%5B116256%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%205%20positions%2C%20G%201-8%2C%20G%201-4?unique=59d4aac)
|
Type number: 5520.05-14 |
26.16 € | |
![[116260] RIEGLER Multi-base plate, 5/2-5/3-way valves, 6 positions, G 1/8, G 1/4](/web/image/product.template/200993/image_128/%5B116260%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%206%20positions%2C%20G%201-8%2C%20G%201-4?unique=ca3109d)
|
Type number: 5520.06-14 |
31.39 € | |

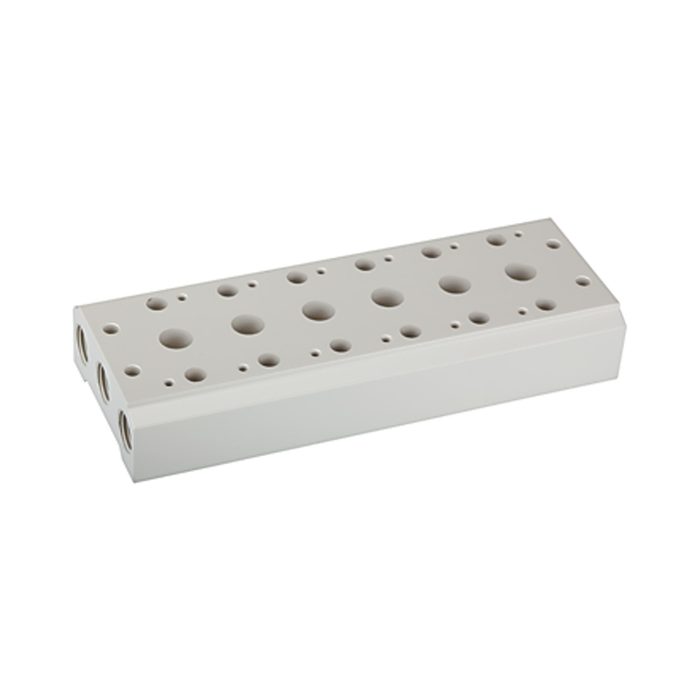

![[116264] RIEGLER Multi-base plate, 5/2-5/3-way valves, 7 positions, G 1/8, G 1/4](/web/image/product.template/200997/image_128/%5B116264%5D%20RIEGLER%20Multi-base%20plate%2C%205-2-5-3-way%20valves%2C%207%20positions%2C%20G%201-8%2C%20G%201-4?unique=64748c3)
|
