RIEGLER 2/2-way solenoid valve NC, directly operated, 24 V DC, G 1/2
Type number: MV 1514
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of brass, for industrial systems, max. 10 bar - Type MV 1514
The RIEGLER 2/2-way MV., MS, NC, direct acting, 24 V DC, G 1/2, PN 0-10 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 10 bar. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/2 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| NW | 5 |
| Design | 1 |
| A | 85 mm |
| B | 52 mm |
| C | 87 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

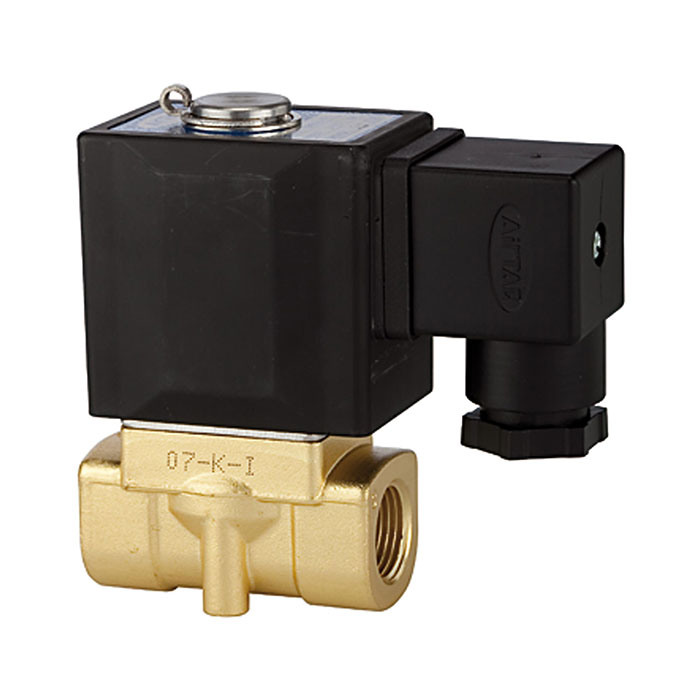

![[116529] RIEGLER 2/2-way solenoid valve NC, directly operated, 24 V DC, G 1/4](/web/image/product.template/202247/image_128/%5B116529%5D%20RIEGLER%202-2-way%20solenoid%20valve%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%201-4?unique=c267753)
|
Type number: MV 1512 |
39.60 € | |

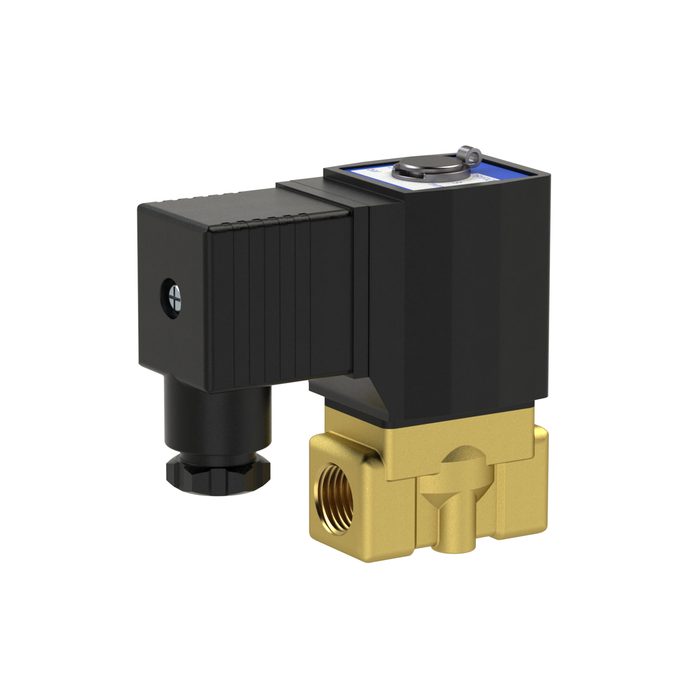

![[116527] RIEGLER 2/2-way solenoid valve NC, directly operated, 24 V DC, G 1/8](/web/image/product.template/202245/image_128/%5B116527%5D%20RIEGLER%202-2-way%20solenoid%20valve%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%201-8?unique=7ef3af8)
|
Type number: MV 1511 |
39.60 € | |
![[116531] RIEGLER 2/2-way solenoid valve NC, directly operated, 24 V DC, G 3/8](/web/image/product.template/202249/image_128/%5B116531%5D%20RIEGLER%202-2-way%20solenoid%20valve%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%203-8?unique=b0d6cb2)
|
Type number: MV 1513 |
58.63 € | |
