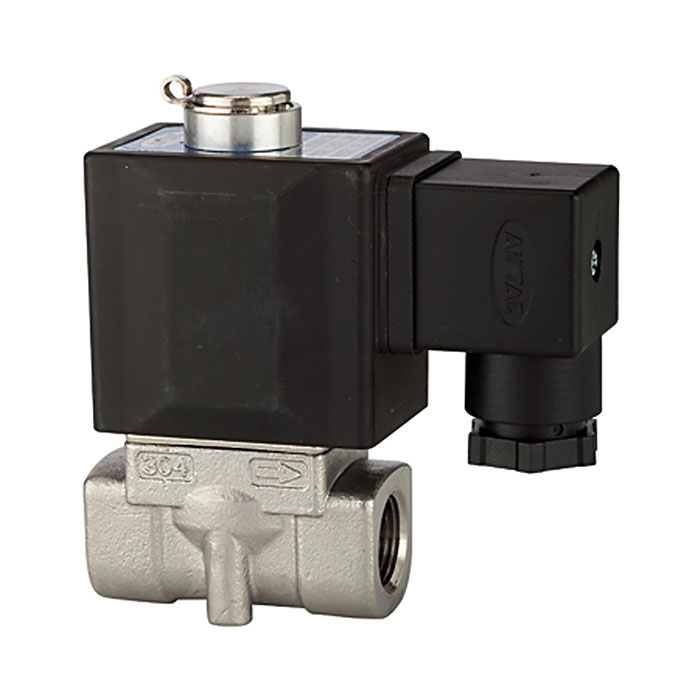

RIEGLER 2/2-way solenoid valve NO, directly operated, 24 V DC
Type number: MV 1534 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 7 bar - Type MV 1534 ES
The RIEGLER 2/2-way valve, ES, NO, direct acting, 24 V DC, G 1/2, PN 0-7 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with FPM seals. The operating pressure range is 0 bar to 7 bar. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 7 bar |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4301 |
| Thread | G 1/2 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| NW | 5 |
| Design | 2 |
| A | 85 mm |
| B | 52 mm |
| C | 92 mm |
| Class name | STAINLESS STEEL |
