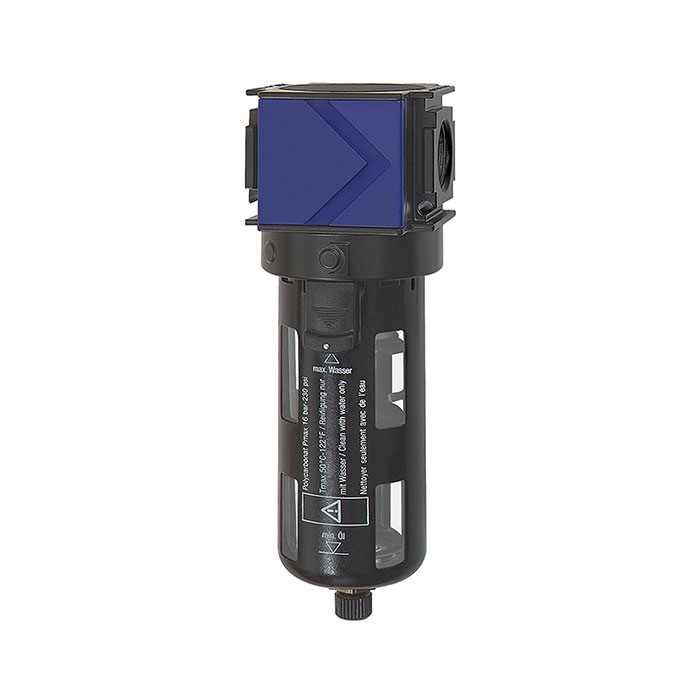

RIEGLER Filter »variobloc«, PC container, Protective cage, Size 1, G 3/8
Type number: VF 23 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter "variobloc" with polycarbonate bowl and protective cage, BG 1, G 3/8, PE max. 16 bar, manual drain valve
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 3/8 |
| Flow rate | 2000 l/min |
| Condensate drain | manually |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[124763] RIEGLER Filter »variobloc«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/202408/image_128/%5B124763%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=761e6fe)
|
Type number: VF 22 S |
65.18 € | |
![[124773] RIEGLER Filter »variobloc«, PC container, Protective cage, Size 2, G 1](/web/image/product.template/202412/image_128/%5B124773%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%202%2C%20G%201?unique=e27de6b)
|
Type number: VF 26 S |
107.23 € | |
![[124767] RIEGLER Filter »variobloc«, PC container, Protective cage, Size 2, G 1/2](/web/image/product.template/202410/image_128/%5B124767%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%202%2C%20G%201-2?unique=12adeb6)
|
Type number: VF 24 S |
71.17 € | |
![[124770] RIEGLER Filter »variobloc«, PC container, Protective cage, Size 2, G 3/4](/web/image/product.template/202411/image_128/%5B124770%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-4?unique=55ff87b)
|
Type number: VF 25 S |
71.17 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

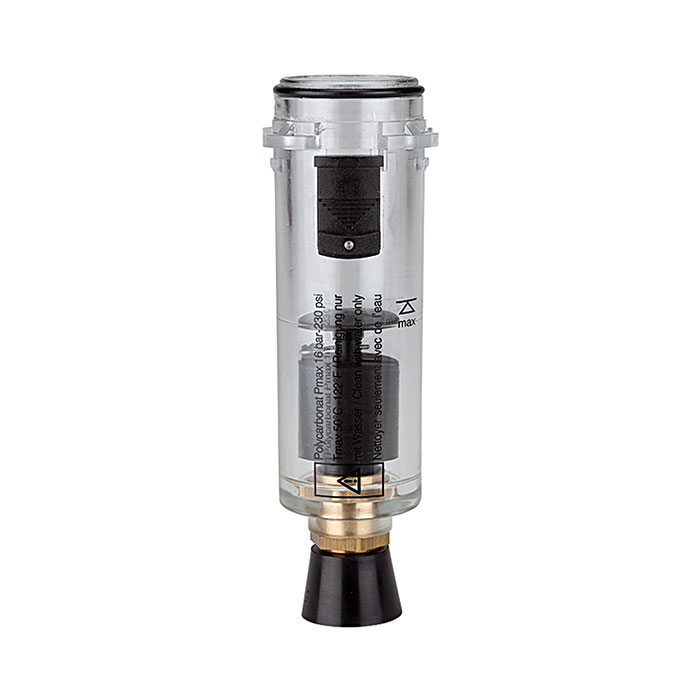

![[100664] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140099/image_128/%5B100664%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=8c7c309)
|
Type number: VZ 511 |
34.19 € | |
![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=47d413f)
|
Type number: VZ 551 |
42.90 € | |

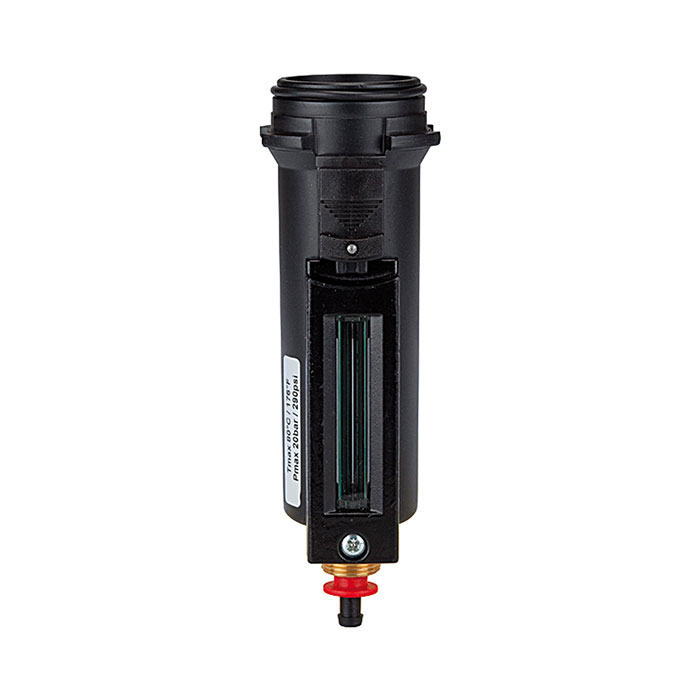

![[100670] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140105/image_128/%5B100670%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=cb2ba82)
|
Type number: VZ 561 |
65.16 € | |

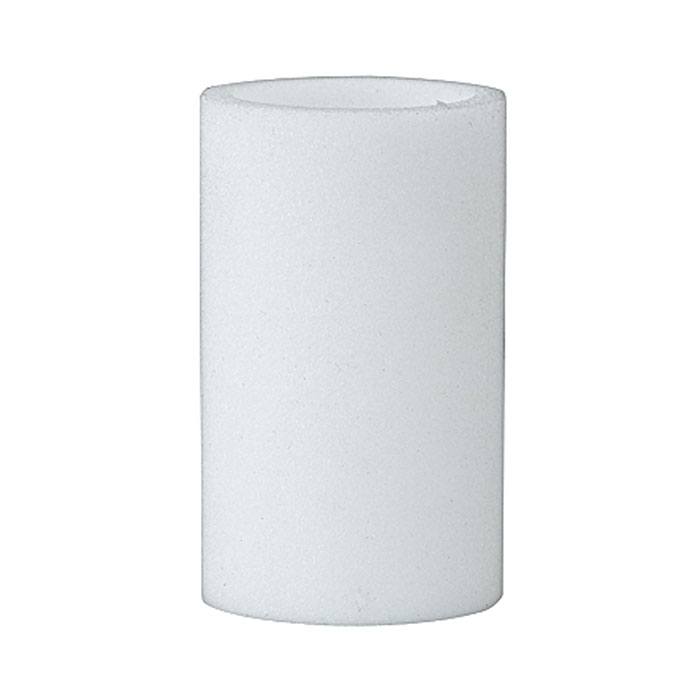

![[100674] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140109/image_128/%5B100674%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=19b8b48)
|
Type number: VZ 741/5 |
8.04 € | |
![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=51b4a1e)
|
Type number: VZ 751 |
9.47 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=46353cc)
|
Type number: 65/0-N |
69.63 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=d584b25)
|
Type number: VZ 718 |
9.32 € | |
![[100751] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140187/image_128/%5B100751%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=0eb5fb7)
|
Type number: VZ 102 |
9.81 € | |
![[100755] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 3/8](/web/image/product.template/140191/image_128/%5B100755%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=15111df)
|
Type number: VZ 202 |
9.23 € | |
![[100761] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140197/image_128/%5B100761%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=bc0f8ca)
|
Type number: VZ 402 |
27.74 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100672] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140107/image_128/%5B100672%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=ffbbab8)
|
Type number: VZ 741 |
5.09 € | |
![[100662] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140097/image_128/%5B100662%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=b467fee)
|
Type number: VZ 501 |
18.74 € | |
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=cbb6b61)
|
Type number: VZ 531 |
14.24 € | |
