RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 1, G 1/4
Type number: VM 22 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter "variobloc" with polycarbonate container and protective basket, 0.01 µm, BG 1, G 1/4, PE max. 16 bar, max. ambient temp. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/4 |
| Flow rate | 370 l/min |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

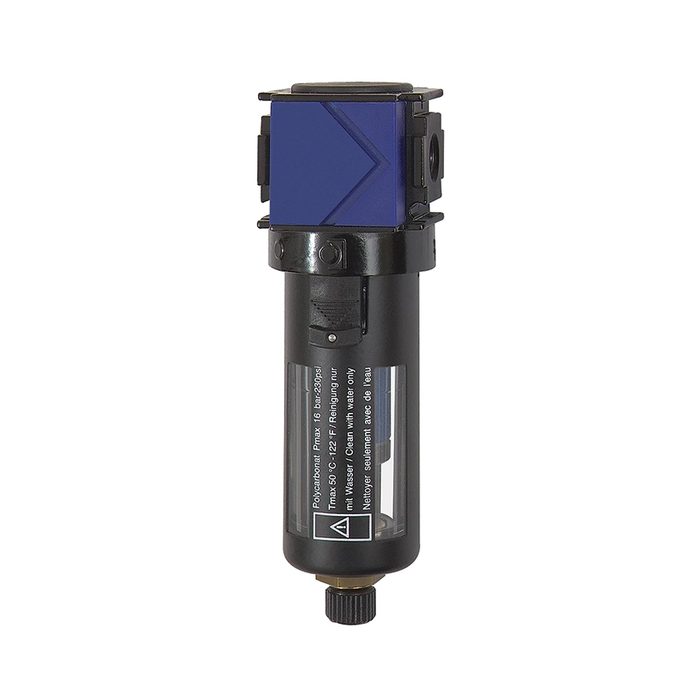

![[124812] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 1, G 3/8](/web/image/product.template/202419/image_128/%5B124812%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=0d9632f)
|
Type number: VM 23 S |
115.83 € | |
![[124815] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 1](/web/image/product.template/202422/image_128/%5B124815%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201?unique=d58b3f5)
|
Type number: VM 26 S |
190.94 € | |
![[124813] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 1/2](/web/image/product.template/202420/image_128/%5B124813%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2?unique=3566961)
|
Type number: VM 24 S |
160.60 € | |
![[124814] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 3/4](/web/image/product.template/202421/image_128/%5B124814%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-4?unique=b82dec1)
|
Type number: VM 25 S |
146.95 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=ef67a03)
|
Type number: VZ 551 |
43.61 € | |
![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=d244da1)
|
Type number: VZ 751 |
9.63 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=7d0bbfa)
|
Type number: 65/0-N |
70.29 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=3ed186d)
|
Type number: VZ 718 |
9.32 € | |
![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=aaf378c)
|
Type number: VZ 101 |
9.31 € | |
![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=63b0f19)
|
Type number: VZ 201 |
9.52 € | |

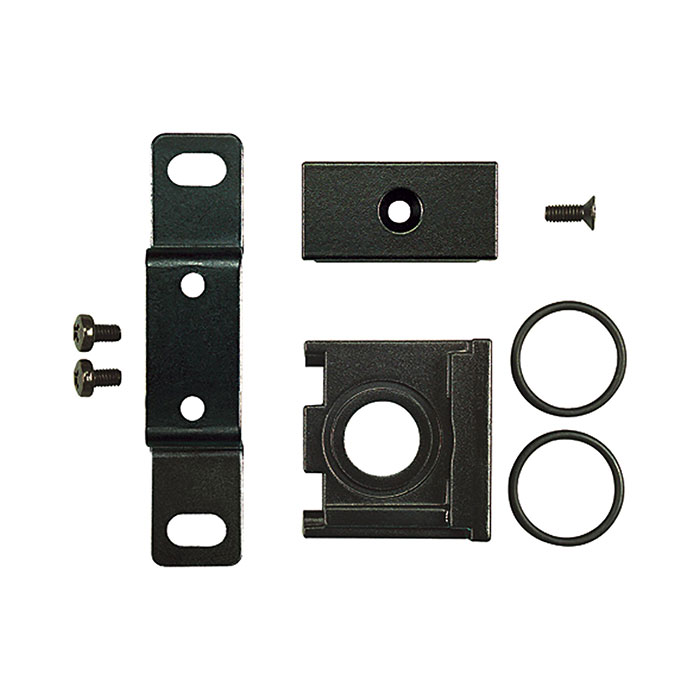

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=1bbeb31)
|
Type number: VZ 401 |
27.87 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

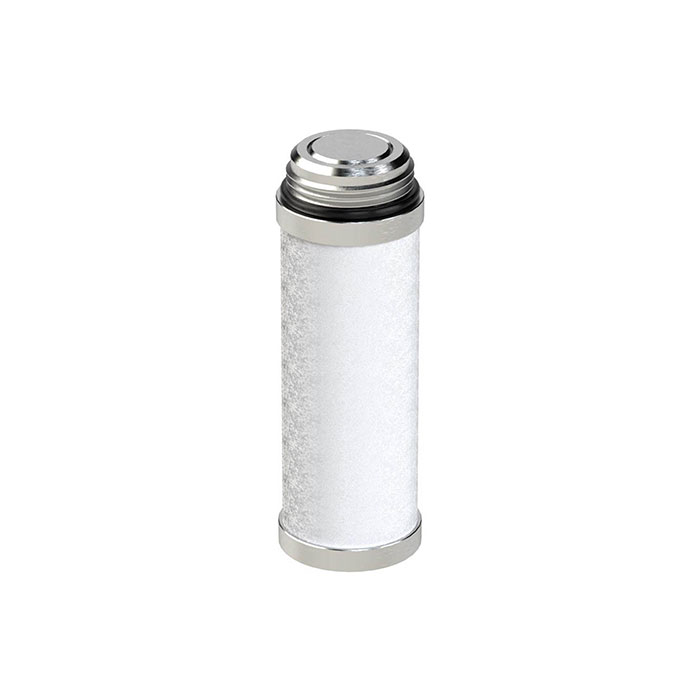

![[100690] RIEGLER Filter element 0.01 µm, Borosilicate / microfiber fleece](/web/image/product.template/140125/image_128/%5B100690%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate%20-%20microfiber%20fleece?unique=57b4bd9)
|
Type number: VZ 761 |
57.95 € | |

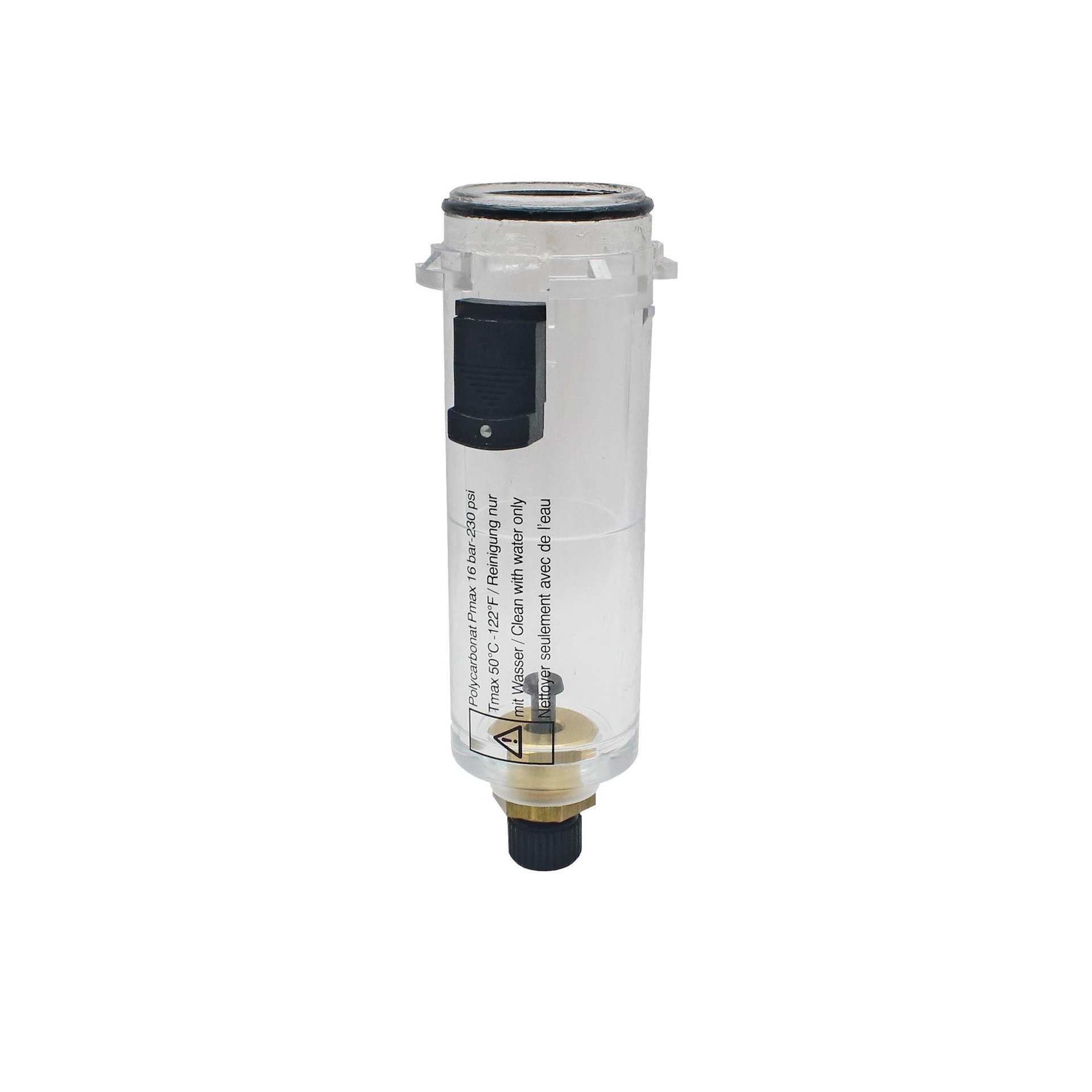

![[100688] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140123/image_128/%5B100688%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=1259ead)
|
Type number: VZ 521 |
13.76 € | |
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=9082f0e)
|
Type number: VZ 531 |
14.48 € | |
