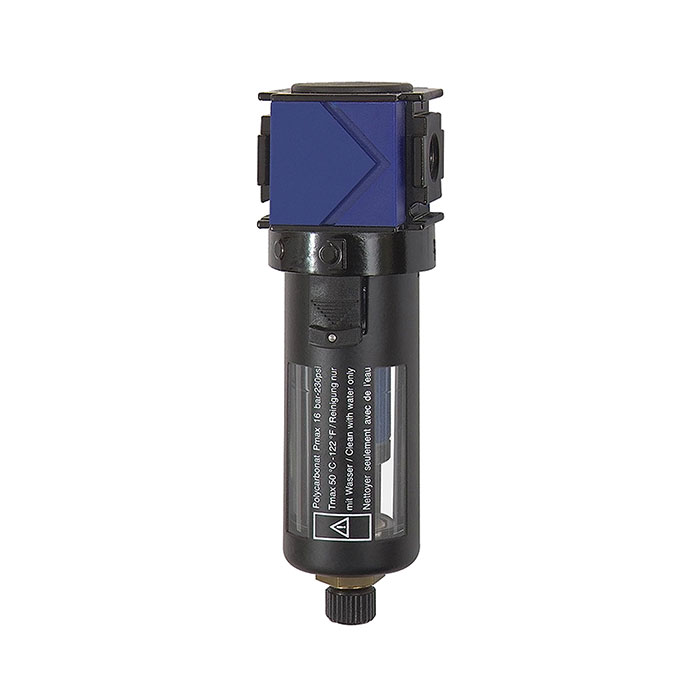

RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 1
Type number: VM 26 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Microfilter "variobloc" with polycarbonate container and protective basket, 0.01 µm, BG 2, G 1, PE max. 16 bar, max. ambient temp. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1 |
| Flow rate | 1100 l/min |
| BG | 2 |
| A | 124 mm |
| B | 202 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[124811] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 1, G 1/4](/web/image/product.template/202418/image_128/%5B124811%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=27be0fa)
|
Type number: VM 22 S |
113.94 € | |
![[124812] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 1, G 3/8](/web/image/product.template/202419/image_128/%5B124812%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=abdb4dc)
|
Type number: VM 23 S |
113.94 € | |
![[124813] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 1/2](/web/image/product.template/202420/image_128/%5B124813%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2?unique=3566961)
|
Type number: VM 24 S |
115.63 € | |
![[124814] RIEGLER Microfilter »variobloc«, Protective cage, 0.01 µm, Size 2, G 3/4](/web/image/product.template/202421/image_128/%5B124814%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-4?unique=b82dec1)
|
Type number: VM 25 S |
144.55 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=167b1fe)
|
Type number: VZ 552 |
55.97 € | |

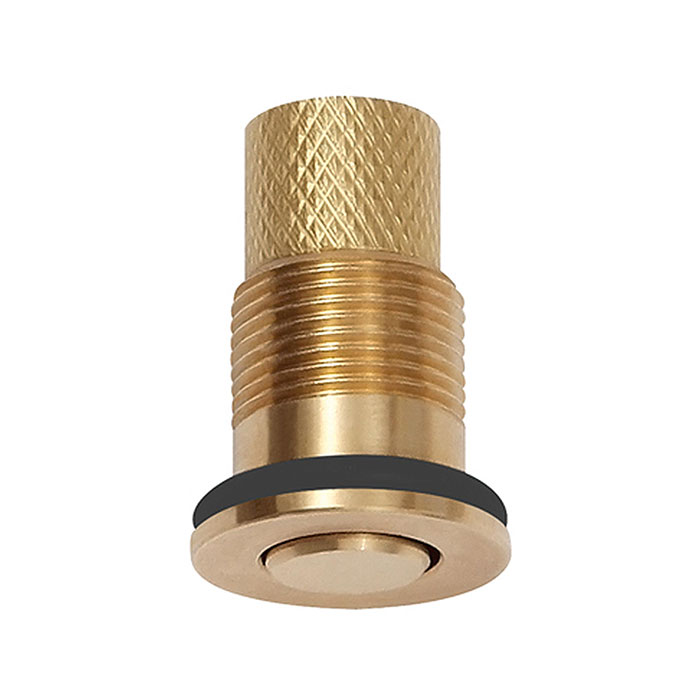

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=51b4a1e)
|
Type number: VZ 751 |
9.47 € | |

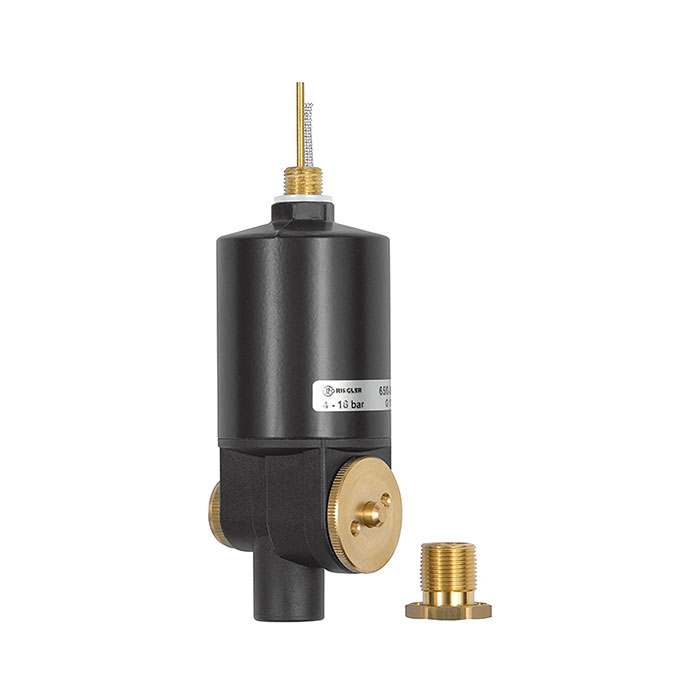

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=46353cc)
|
Type number: 65/0-N |
69.63 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=e7984e3)
|
Type number: VZ 719 |
13.77 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=b129a29)
|
Type number: VZ 104 |
13.99 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=458d91c)
|
Type number: VZ 204 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=3638b13)
|
Type number: VZ 500 |
29.85 € | |

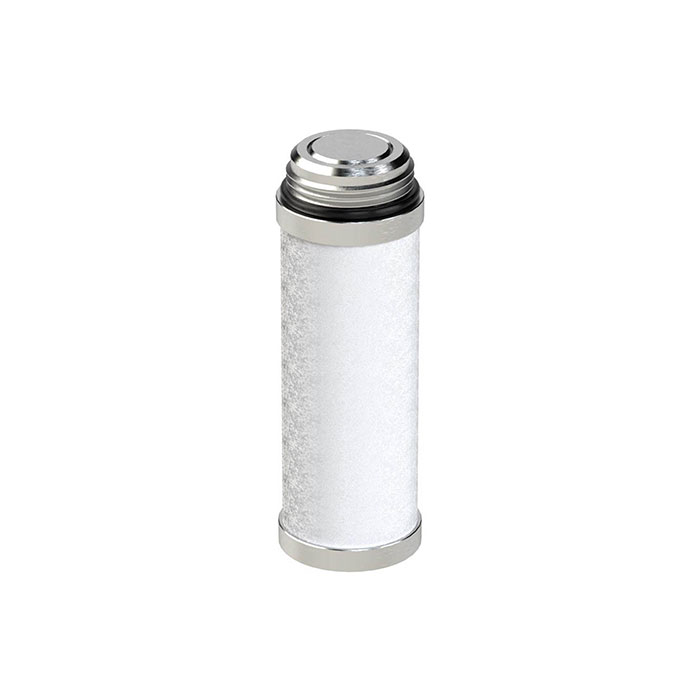

![[100691] RIEGLER Filter element 0.01 µm, Borosilicate / microfiber fleece](/web/image/product.template/140126/image_128/%5B100691%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate%20-%20microfiber%20fleece?unique=09b4462)
|
Type number: VZ 762 |
75.77 € | |

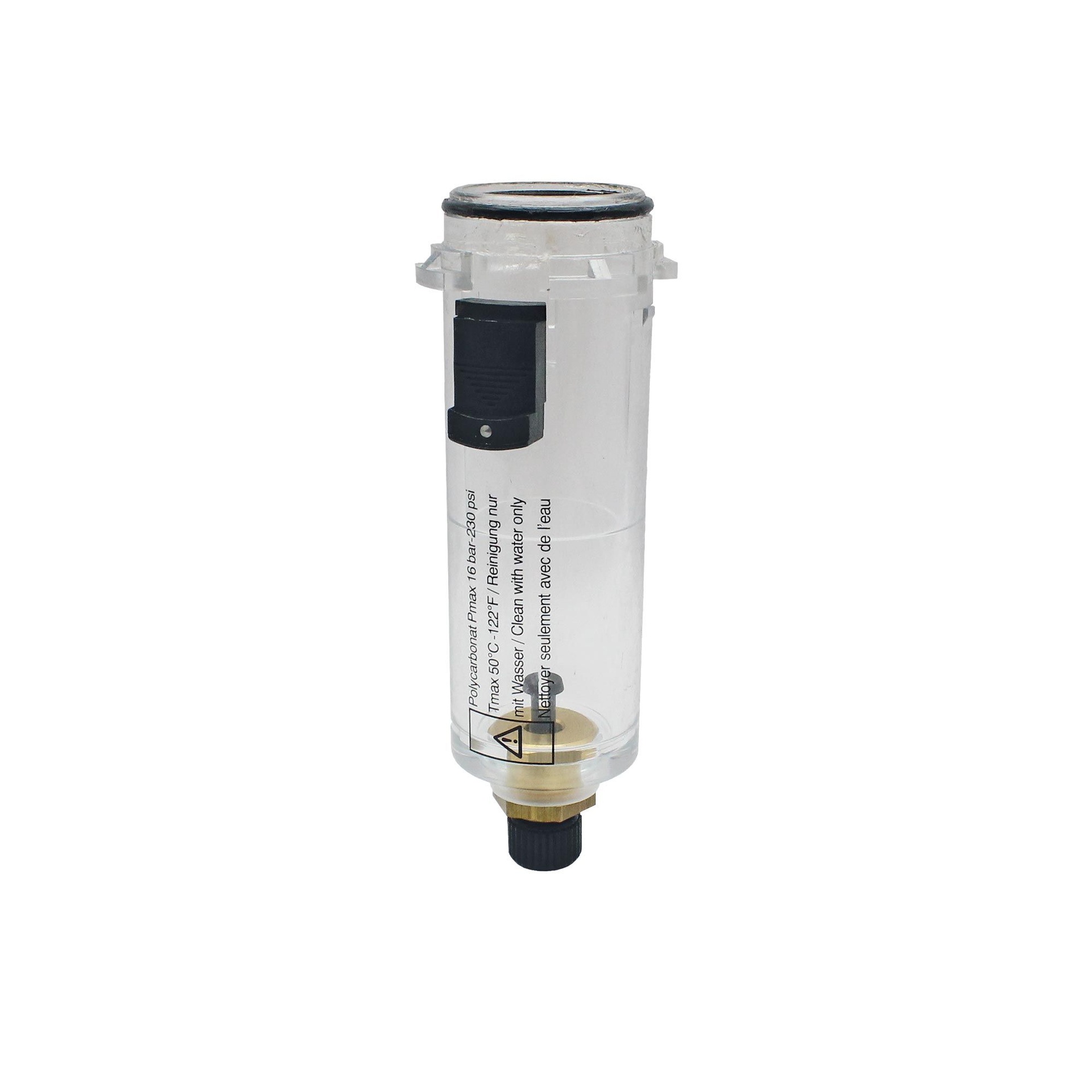

![[100689] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140124/image_128/%5B100689%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=b46ad58)
|
Type number: VZ 522 |
17.89 € | |
![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=bb33236)
|
Type number: VZ 532 |
18.14 € | |
