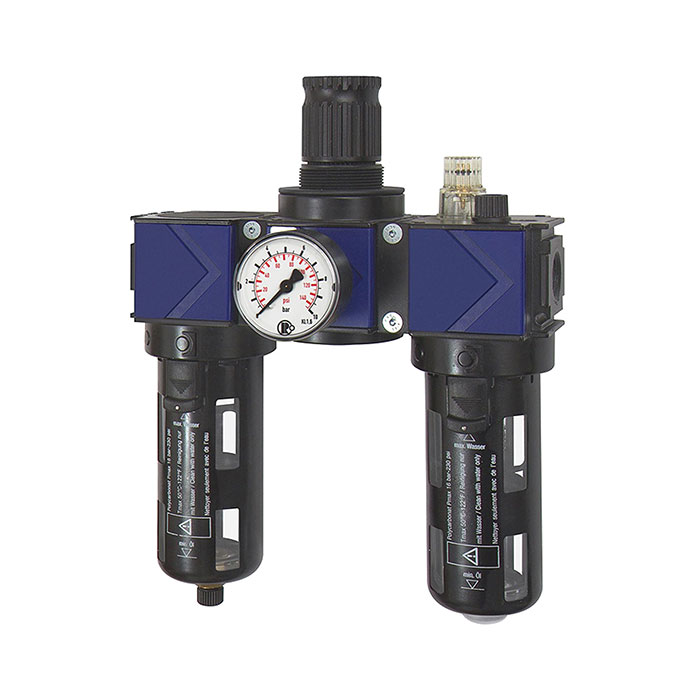

RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1/2
Type number: VW 14 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "variobloc" PC maintenance unit made of die-cast zinc, for compressed air preparation - type VW 14 S
The RIEGLER 3-piece "variobloc" maintenance unit with PC fitting, protective cage, BG2, G1/2 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 3400 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 3400 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 210 mm |
| B | 274 mm |
| C | 98 mm |
| Class name | PLUS |
