RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 3/4
Type number: VW 15 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 3-tlg. »variobloc«, Polycarbonatbehälter und Schutzkorb, BG 2, G 3/4, PE max. 16 bar, Med.-Umgeb.temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 3/4 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 210 mm |
| B | 274 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[124854] RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 1/4](/web/image/product.template/202428/image_128/%5B124854%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=838e004)
|
Type number: VW 12 S |
265.86 € | |

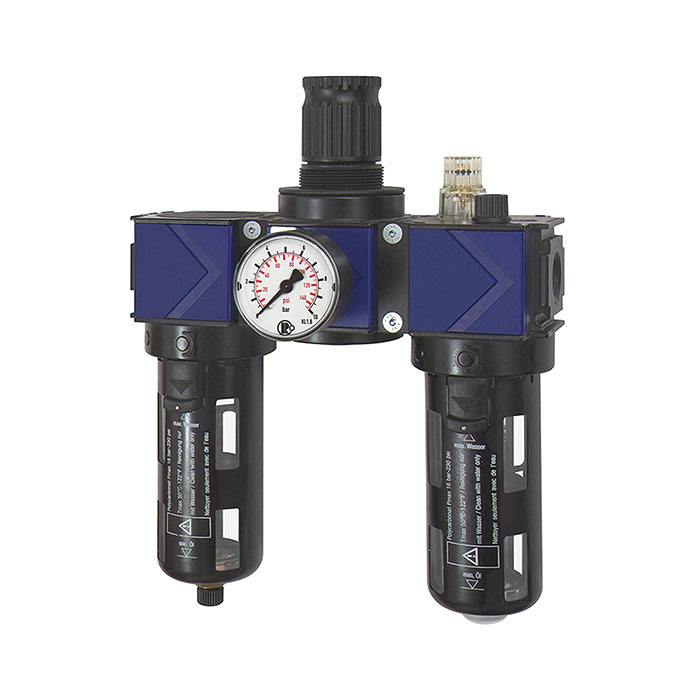

![[124856] RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 3/8](/web/image/product.template/202429/image_128/%5B124856%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=68bc71f)
|
Type number: VW 13 S |
265.86 € | |
![[124862] RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1](/web/image/product.template/202432/image_128/%5B124862%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%20Size%202%2C%20G%201?unique=838e004)
|
Type number: VW 16 S |
225.29 € | |
![[124858] RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1/2](/web/image/product.template/202430/image_128/%5B124858%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%2C%20Protective%20cage%2C%20Size%202%2C%20G%201-2?unique=838e004)
|
Type number: VW 14 S |
234.16 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=6c56aa9)
|
Type number: VZ 104 |
13.99 € | |
![[100709] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 2](/web/image/product.template/140145/image_128/%5B100709%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=8a51e7d)
|
Type number: VZ 722 |
10.13 € | |
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=8aad20d)
|
Type number: VZ 742 |
5.24 € | |
![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=851af0d)
|
Type number: 443.3.94 |
2.34 € | |

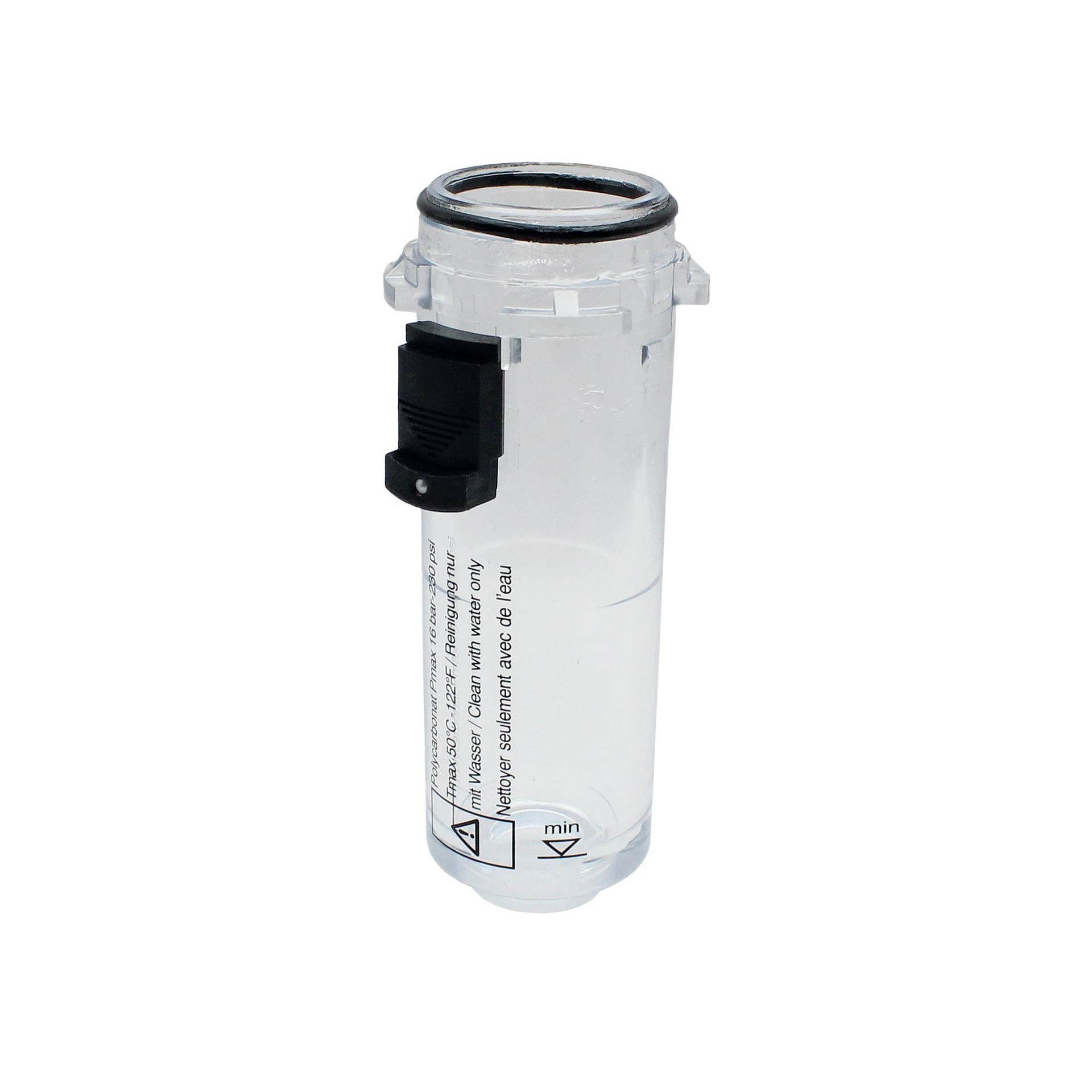

![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=aaab97e)
|
Type number: VZ 602 |
17.27 € | |
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=07a8bdb)
|
Type number: VZ 502 |
18.60 € | |

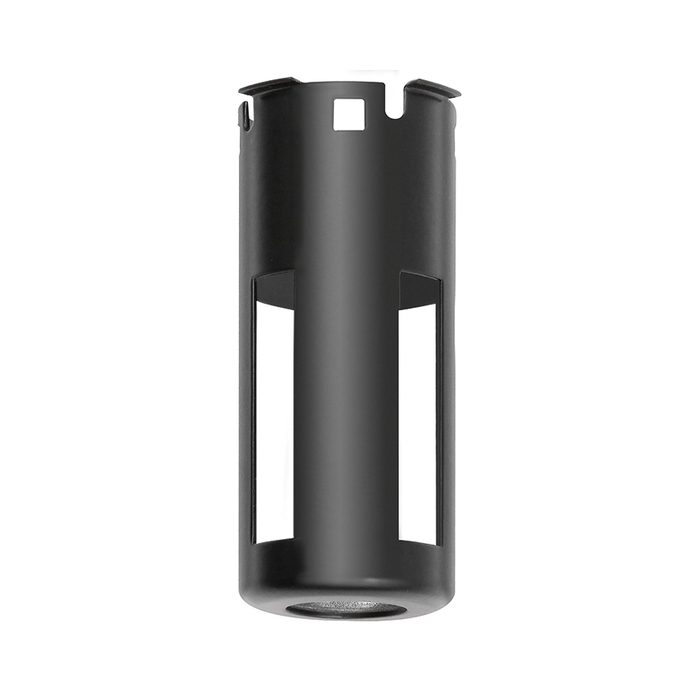

![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=6653fce)
|
Type number: VZ 532 |
18.14 € | |
![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=ee62765)
|
Type number: VZ 782 |
21.94 € | |
