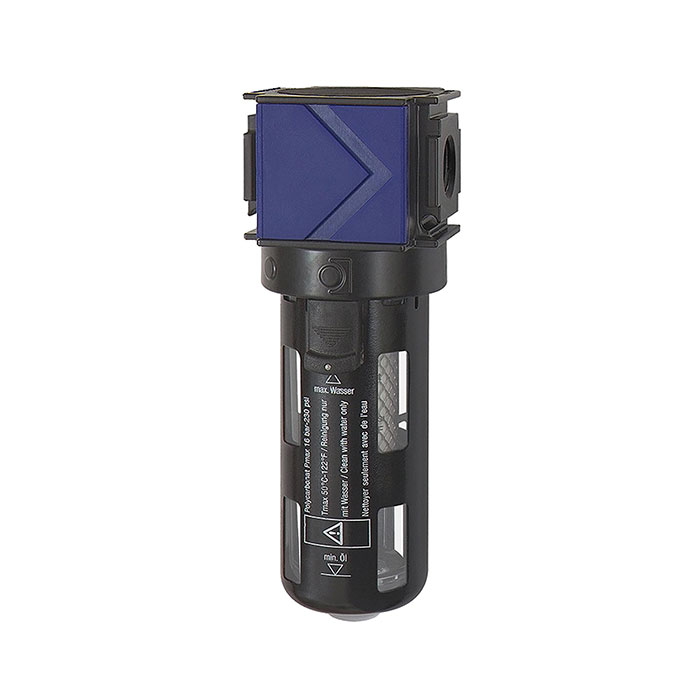

RIEGLER Active charcoal filter »variobloc« Protective cage, Size 1, G 1/4
Type number: VAK 22 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "variobloc" PC container for compressed air treatment, G 1/4 - type VAK 22 S
The RIEGLER activated carbon filter "variobloc" PC container, protective cage, BG 1, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 800 l/min (at P1 = 7 bar and pressure drop Δp = 0.2 bar). Polycarbonate tank with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| BG | 1 |
| A | 48 mm |
| B | 142 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125326] RIEGLER Active charcoal filter »variobloc« Protective cage, Size 1, G 3/8](/web/image/product.template/202469/image_128/%5B125326%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VAK 23 S |
103.82 € | |
![[125329] RIEGLER Active charcoal filter »variobloc« Protective cage, Size 2, G 1](/web/image/product.template/202472/image_128/%5B125329%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Protective%20cage%2C%20Size%202%2C%20G%201?unique=7cb05f8)
|
Type number: VAK 26 S |
193.13 € | |
![[125327] RIEGLER Active charcoal filter »variobloc« Protective cage, Size 2, G 1/2](/web/image/product.template/202470/image_128/%5B125327%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Protective%20cage%2C%20Size%202%2C%20G%201-2?unique=23064b7)
|
Type number: VAK 24 S |
149.52 € | |
![[125328] RIEGLER Active charcoal filter »variobloc« Protective cage, Size 2, G 3/4](/web/image/product.template/202471/image_128/%5B125328%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Protective%20cage%2C%20Size%202%2C%20G%203-4?unique=97cb0ba)
|
Type number: VAK 25 S |
149.52 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100699] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140134/image_128/%5B100699%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=8ec0ac3)
|
Type number: VZ 651 |
47.16 € | |

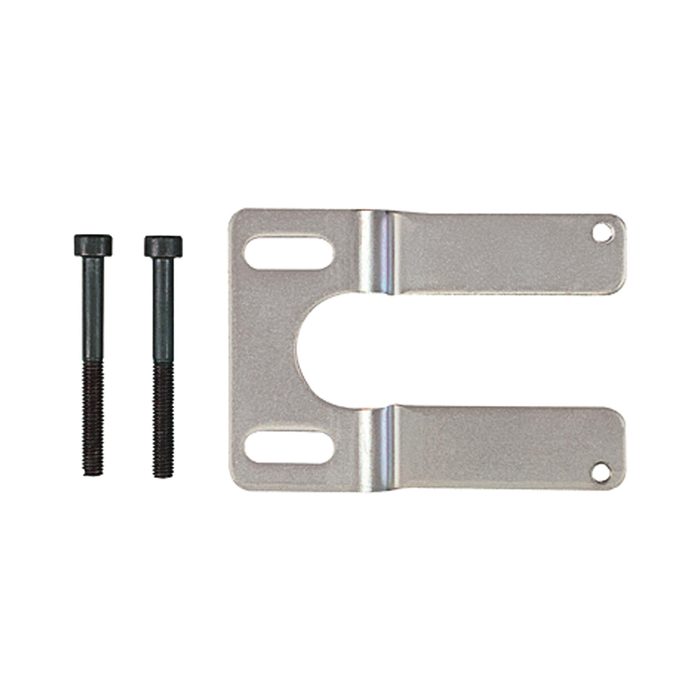

![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=6a419f9)
|
Type number: VZ 718 |
9.32 € | |

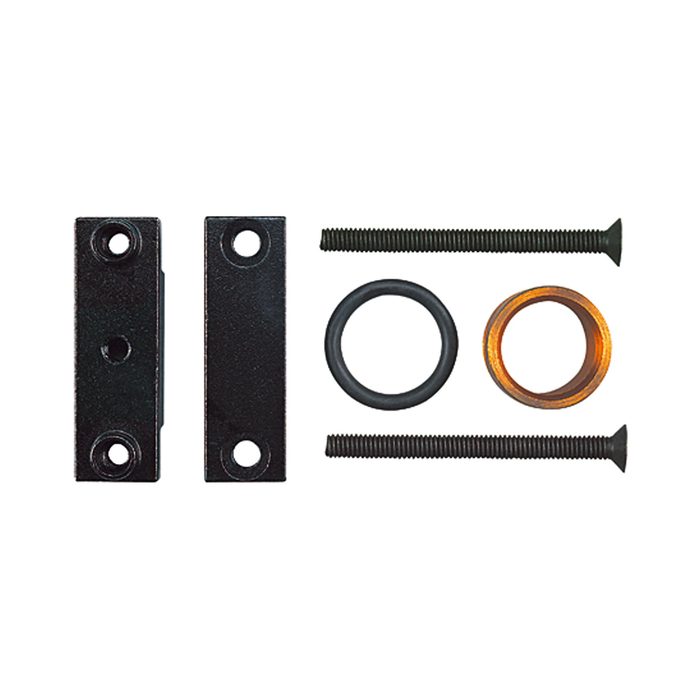

![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=c713ccd)
|
Type number: VZ 101 |
9.29 € | |

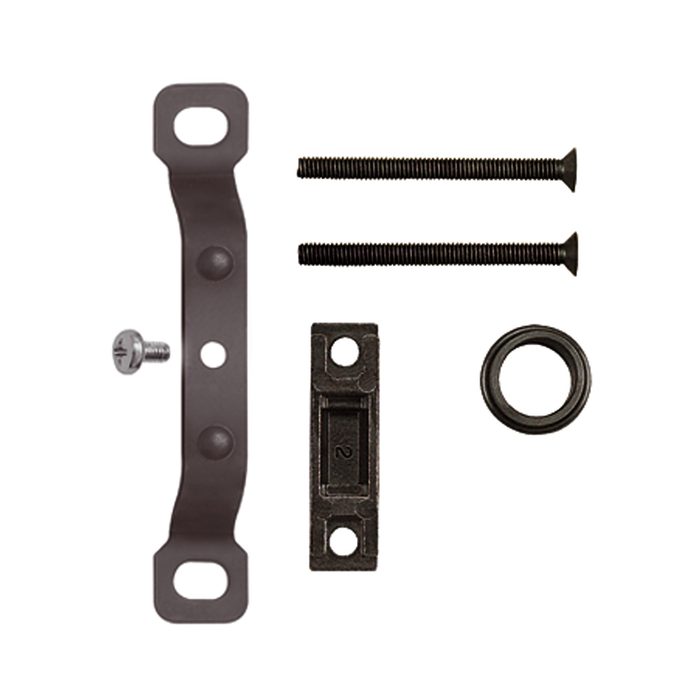

![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=dd56b96)
|
Type number: VZ 201 |
9.52 € | |

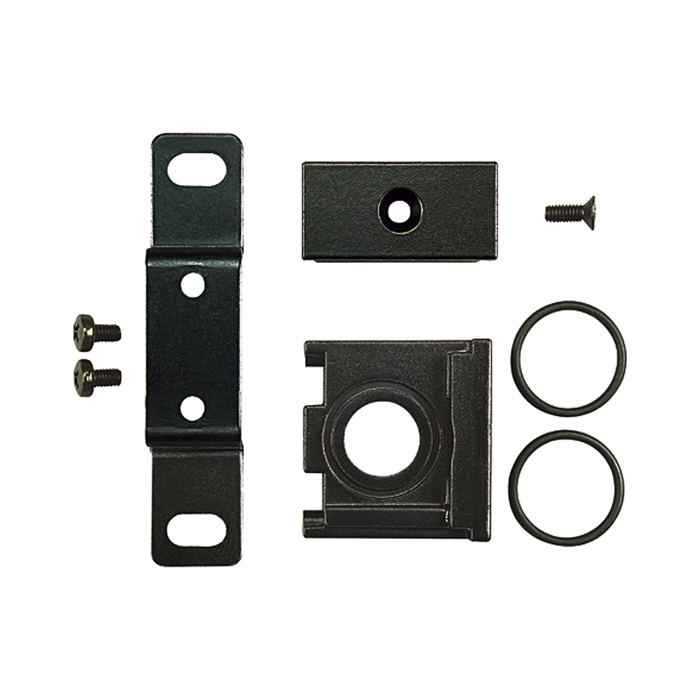

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=9be207b)
|
Type number: VZ 401 |
27.86 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

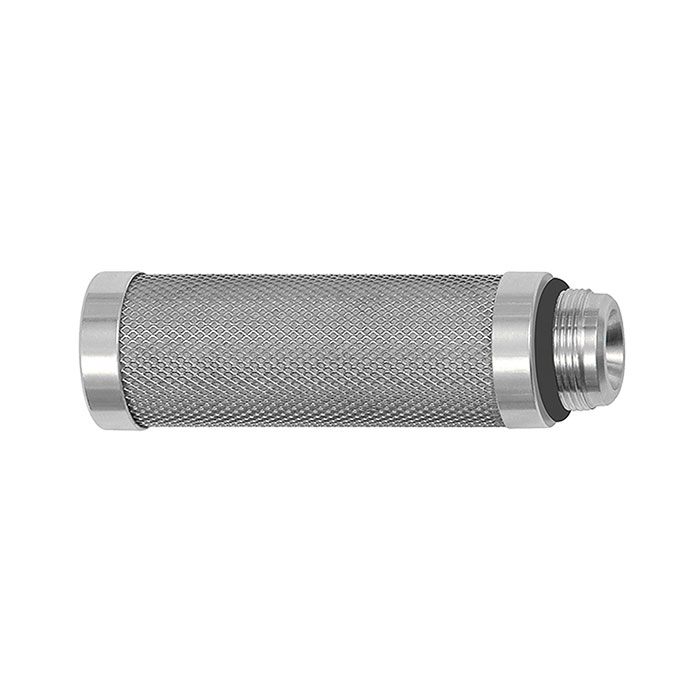

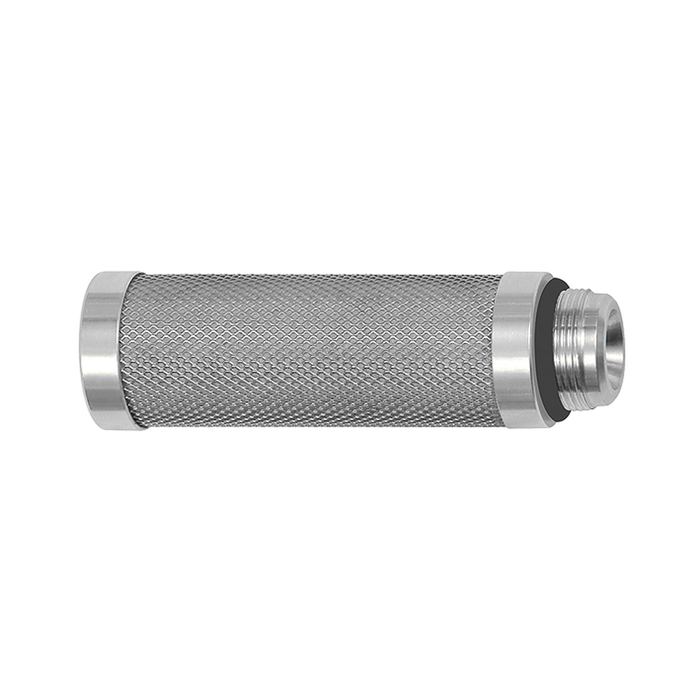

![[100701] RIEGLER Active charcoal filter element](/web/image/product.template/140136/image_128/%5B100701%5D%20RIEGLER%20Active%20charcoal%20filter%20element?unique=c1368ee)
|
Type number: VZ 771 |
81.07 € | |

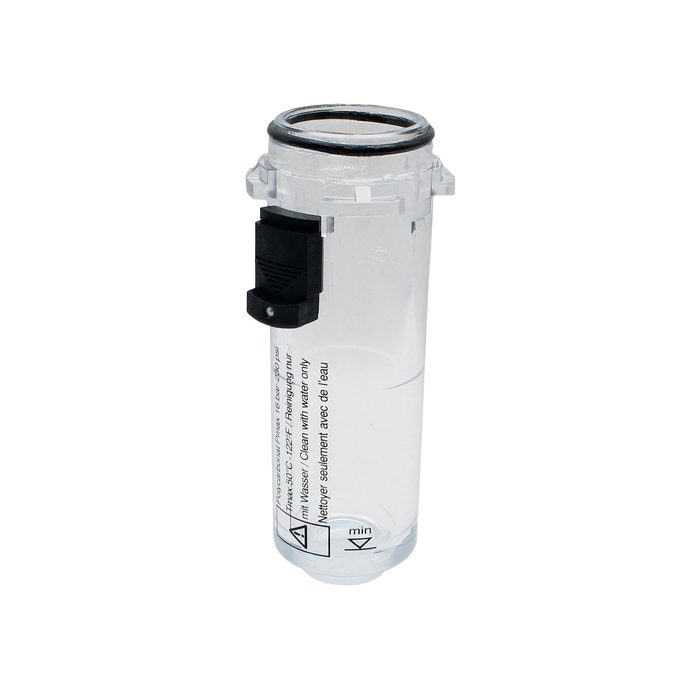

![[100697] RIEGLER Polycarbonate container](/web/image/product.template/140132/image_128/%5B100697%5D%20RIEGLER%20Polycarbonate%20container?unique=52f07dd)
|
Type number: VZ 601 |
32.76 € | |

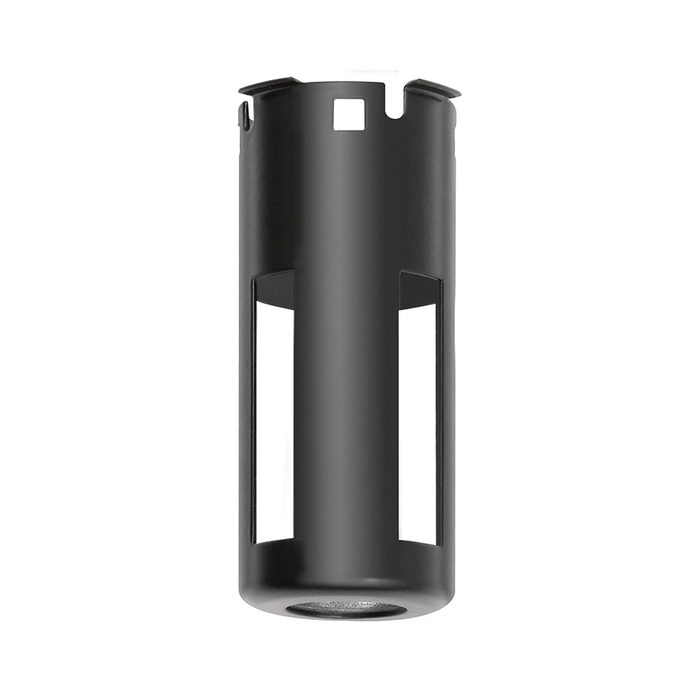

![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=c502d61)
|
