RIEGLER Active charcoal filter »variobloc« Protective cage, Size 1, G 3/8
Type number: VAK 23 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "variobloc" PC container for compressed air treatment, G 3/8 - type VAK 23 S
The RIEGLER activated carbon filter "variobloc" PC container, protective cage, BG 1, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1000 l/min (at P1 = 7 bar and pressure drop Δp = 0.2 bar). Polycarbonate tank with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/8 |
| Flow rate | 1000 l/min |
| BG | 1 |
| A | 48 mm |
| B | 142 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144665] RIEGLER Activated carbon filter "SYNTESI", BG 1, G 3/8, 0.003 mg/m³, RMSA](/web/image/product.template/277855/image_128/%5B144665%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=692b0cd)
|
Type number: 5613C103 |
79.30 € | |
![[100192] Riegler Active charcoal filter »FUTURA« with PC container, Size 1, G 3/8](/web/image/product.template/123329/image_128/%5B100192%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=8b6f2c0)
|
Type number: FU 892 |
59.13 € | |

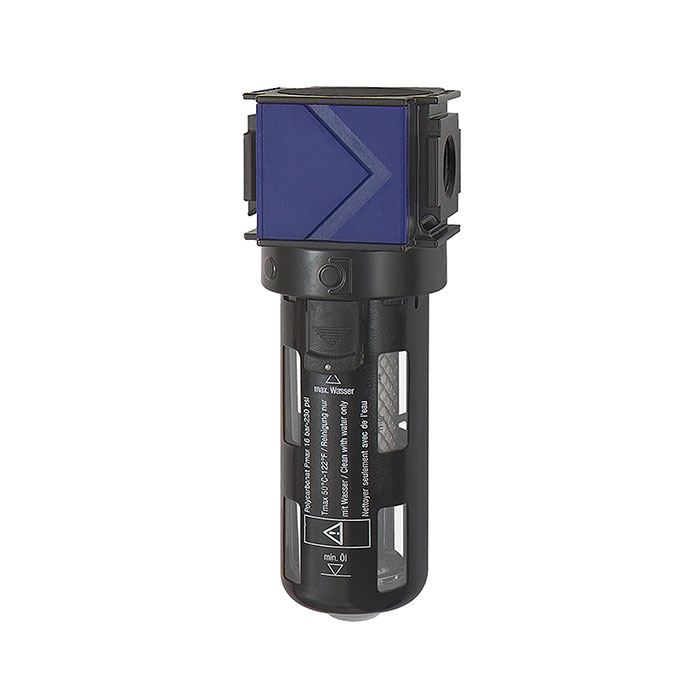

![[125325] RIEGLER Active charcoal filter »variobloc« Protective cage, Size 1, G 1/4](/web/image/product.template/202468/image_128/%5B125325%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=23064b7)
|
