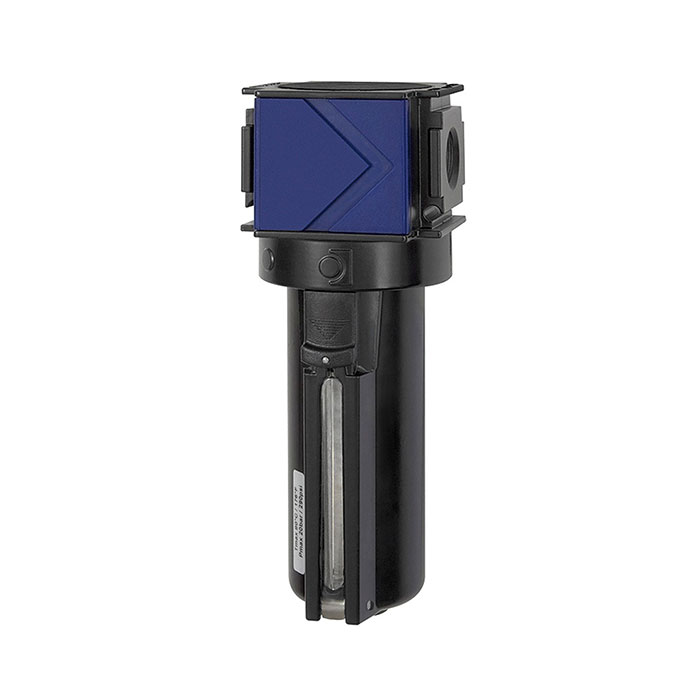

RIEGLER Active charcoal filter »variobloc« Metal container, Size 2, G 3/4
Type number: VAK 25 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "variobloc" for compressed air treatment, G 3/4 - type VAK 25 M
The RIEGLER activated carbon filter "variobloc", metal container, sight tube, BG 2, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 80 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 1300 l/min (at P1 = 7 bar and pressure drop Δp = 0.2 bar). Metal tank with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/4 |
| Flow rate | 1300 l/min |
| BG | 2 |
| A | 70 mm |
| B | 193 mm |
| C | 26 mm |
| Class name | PLUS |
