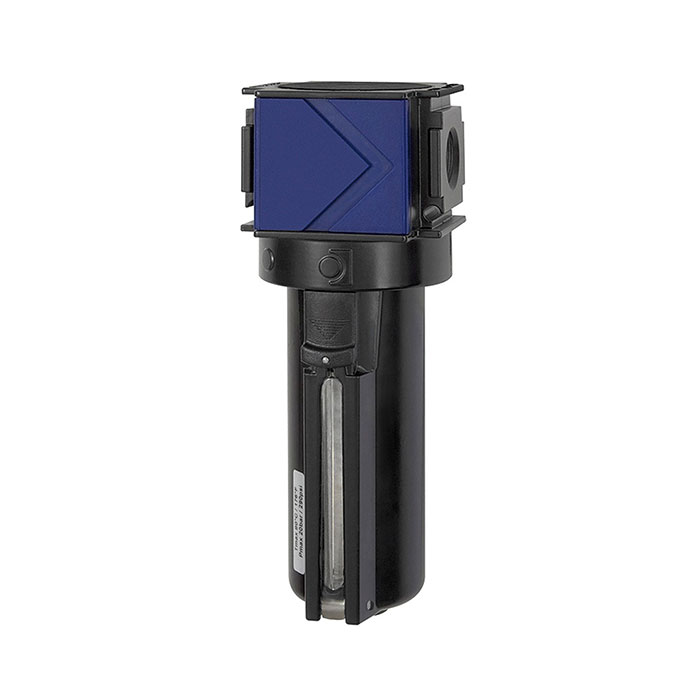

RIEGLER Active charcoal filter »variobloc« Metal container, Size 2, G 1
Type number: VAK 26 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "variobloc" with metal container incl. sight tube, 0.003 mg/m³, BG 2, G 1, PE max. 20 bar, max. medium temp. 80 °C
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1 |
| Flow rate | 1300 l/min |
| BG | 2 |
| A | 124 mm |
| B | 193 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125330] RIEGLER Active charcoal filter »variobloc« Metal container, Size 1, G 1/4](/web/image/product.template/202473/image_128/%5B125330%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=4c4907b)
|
Type number: VAK 22 M |
166.83 € | |
![[125331] RIEGLER Active charcoal filter »variobloc« Metal container, Size 1, G 3/8](/web/image/product.template/202474/image_128/%5B125331%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=eb5f4d5)
|
Type number: VAK 23 M |
130.13 € | |
![[125332] RIEGLER Active charcoal filter »variobloc« Metal container, Size 2, G 1/2](/web/image/product.template/202475/image_128/%5B125332%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Metal%20container%2C%20Size%202%2C%20G%201-2?unique=f788394)
|
Type number: VAK 24 M |
186.81 € | |
![[125333] RIEGLER Active charcoal filter »variobloc« Metal container, Size 2, G 3/4](/web/image/product.template/202476/image_128/%5B125333%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%20Metal%20container%2C%20Size%202%2C%20G%203-4?unique=6ffa677)
|
Type number: VAK 25 M |
186.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

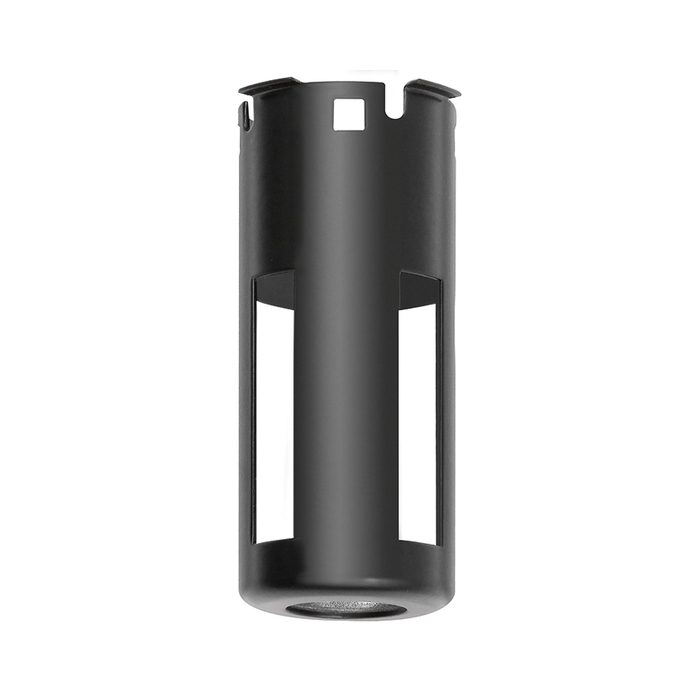

![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=7cd00a5)
|
Type number: VZ 532 |
18.43 € | |

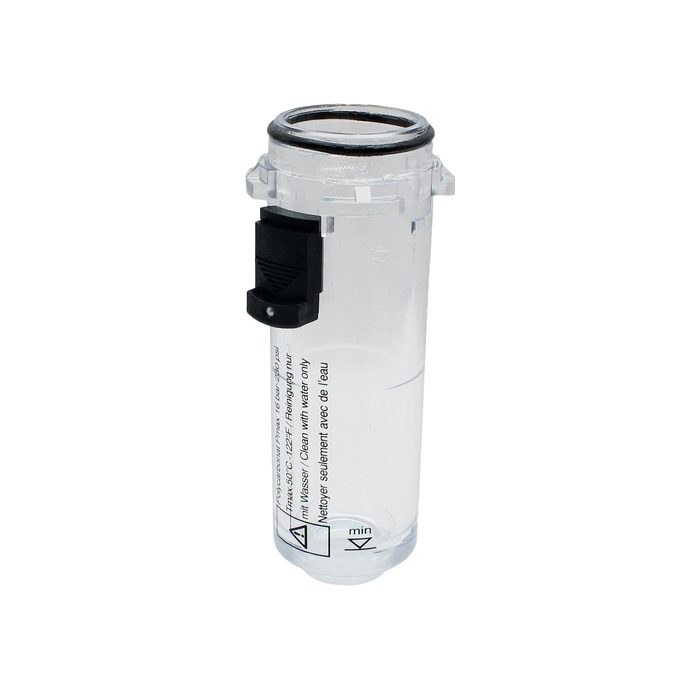

![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=0528403)
|
Type number: VZ 602 |
17.54 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=21e3b2f)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=903fff8)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=f71660e)
|
Type number: VZ 204 |
23.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100702] RIEGLER Active charcoal filter element](/web/image/product.template/140138/image_128/%5B100702%5D%20RIEGLER%20Active%20charcoal%20filter%20element?unique=e7a231f)
|
Type number: VZ 772 |
95.76 € | |
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=024f7f4)
|
Type number: VZ 500 |
29.85 € | |
![[100700] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140135/image_128/%5B100700%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=0c2e56e)
|
Type number: VZ 652 |
49.04 € | |
