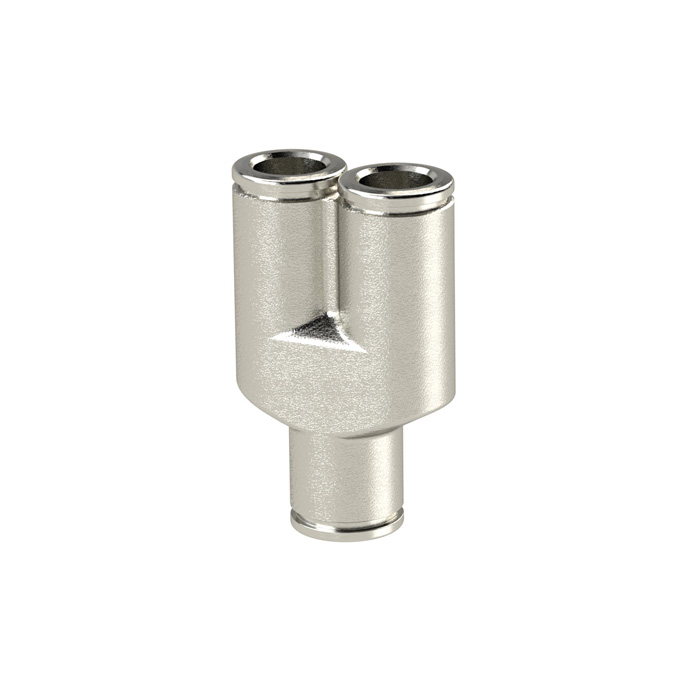

RIEGLER Push-in Y-connector, Plug nipple 8 mm »Blue Series«, reducing
Type number: 158.0806-K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Y-Steckverbindung, Stecknippel 8 mm »Blaue Serie«, red., für Schlauch-Außen-Ø 6 mm, pmax kurzzeitig 15 bar, Kunststoff
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 6 mm |
| Plug nipple | 8 mm |

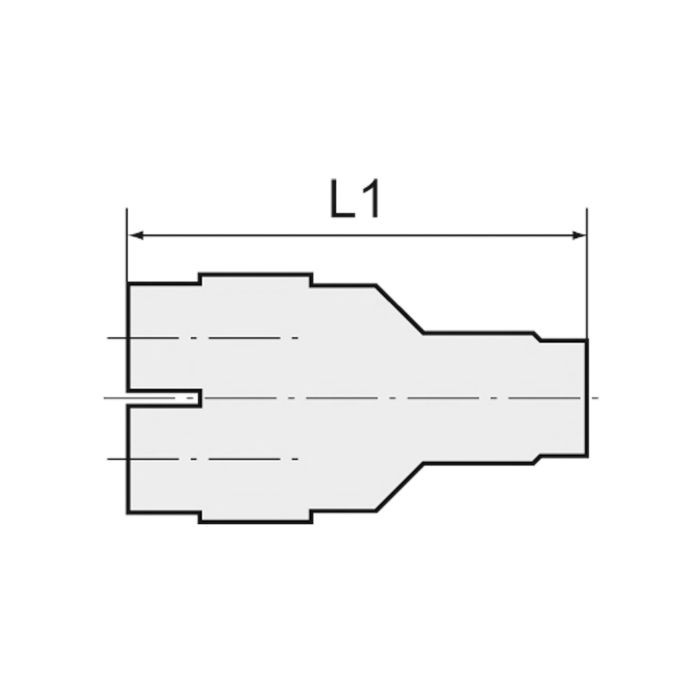

| L1 | 54 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125736] RIEGLER Push-in Y-connector, Plug nipple 10 mm »Blue Series«, reducing](/web/image/product.template/202578/image_128/%5B125736%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=8a085e3)
|
Type number: 158.1008-K |
2.50 € | |
![[135773] RIEGLER Push-in Y-connector, Plug nipple 10 mm »Blue Series«, reducing](/web/image/product.template/206151/image_128/%5B135773%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=a32635a)
|
Type number: 158.1006-K |
2.08 € | |

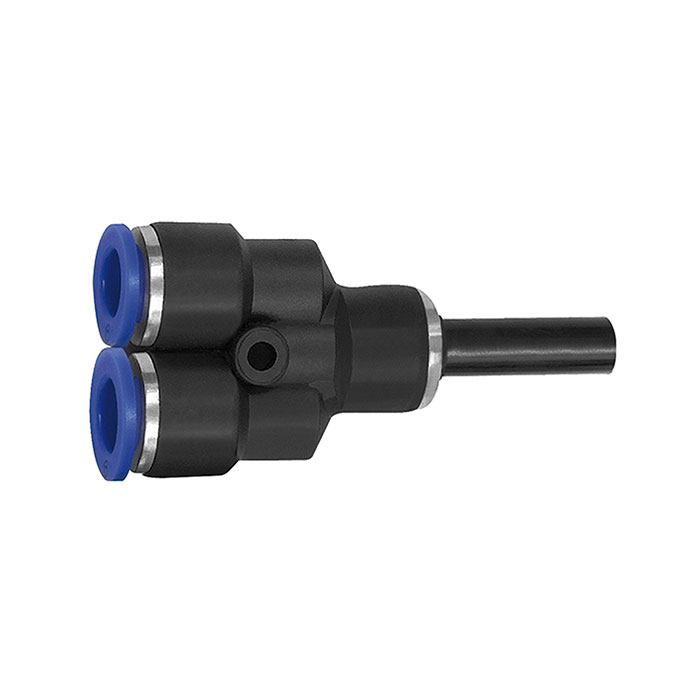

![[125737] RIEGLER Push-in Y-connector, Plug nipple 12 mm »Blue Series«, reducing](/web/image/product.template/202579/image_128/%5B125737%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2012%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=b437919)
|
Type number: 158.1210-K |
3.34 € | |
![[135774] RIEGLER Push-in Y-connector, Plug nipple 12 mm »Blue Series«, reducing](/web/image/product.template/206152/image_128/%5B135774%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2012%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=540abc2)
|
Type number: 158.1208-K |
2.93 € | |

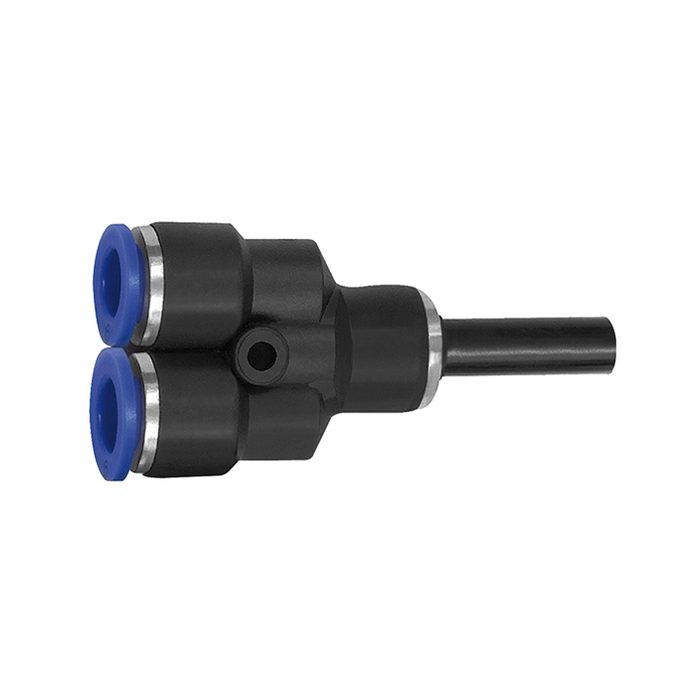

![[135775] RIEGLER Push-in Y-connector, Plug nipple 16 mm »Blue Series«, reducing](/web/image/product.template/206153/image_128/%5B135775%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2016%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=50b8554)
|
Type number: 158.1610-K |
5.18 € | |
![[125734] RIEGLER Push-in Y-connector, Plug nipple 6 mm »Blue Series«, reducing](/web/image/product.template/202576/image_128/%5B125734%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%206%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=8d5c05d)
|
Type number: 158.0604-K |
1.27 € | |
