RIEGLER Y-connector "metallica", for hose outer Ø 6, MS nickel-plated.
Type number: 853.006
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

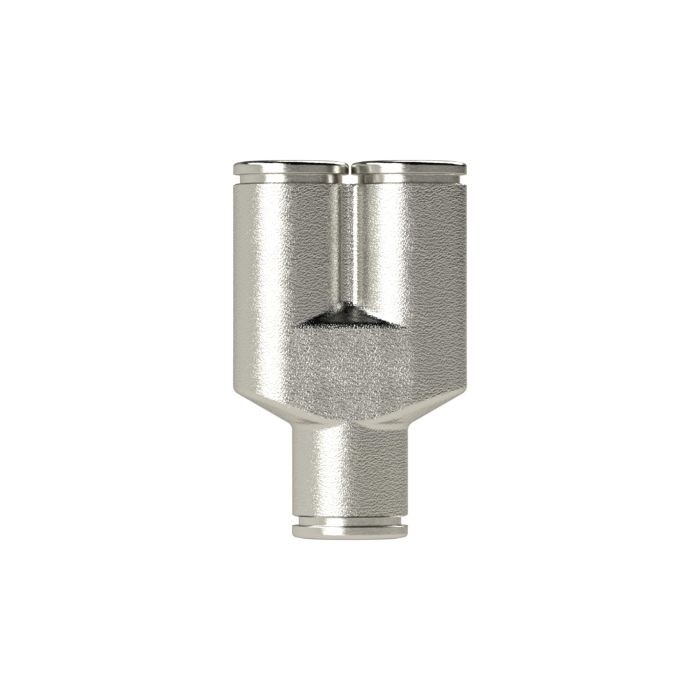

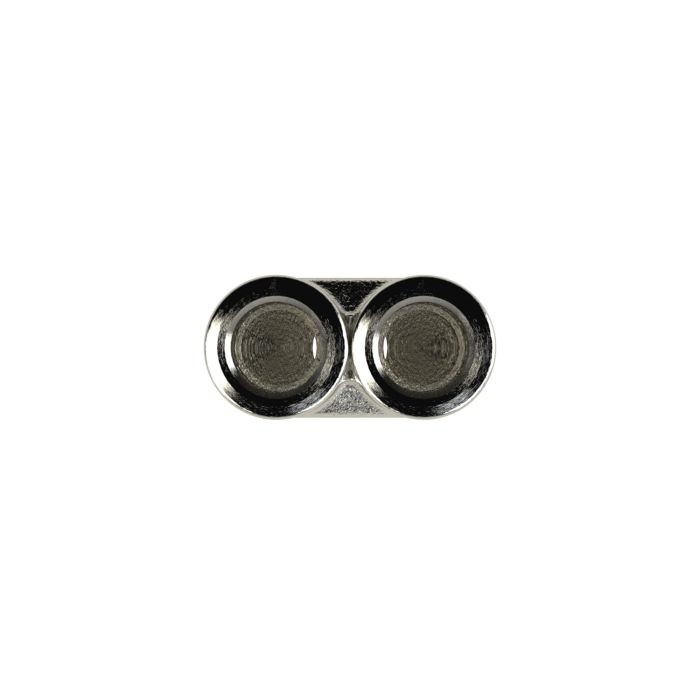

RIEGLER Y-connector "metallica" made of nickel-plated brass, for pneumatic installation - type 853.006
The RIEGLER Y-connector "metallica", for hose outer Ø 6, MS nickel-plated, enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with FKM seals. The operating pressure range is -0.98 bar to 16 bar. The operating temperature is between -20 °C and 150 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA and PU |
| for hose outer Ø | 6 mm |

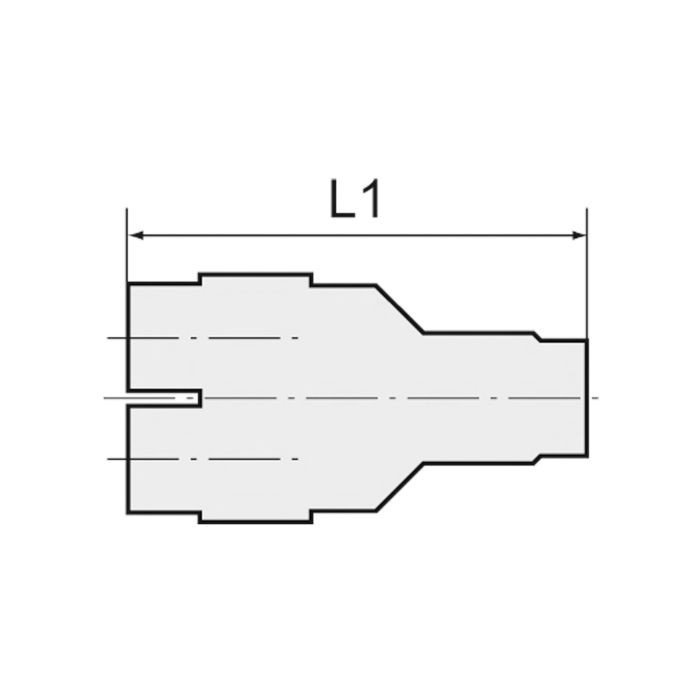

| L1 | 37 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129847] RIEGLER Y-connector "metallica", for hose outer Ø 10, MS nickel-plated.](/web/image/product.template/273067/image_128/%5B129847%5D%20RIEGLER%20Y-connector%20%22metallica%22%2C%20for%20hose%20outer%20%C3%98%2010%2C%20MS%20nickel-plated.?unique=1155a14)
|
Type number: 853.010 |
10.42 € | |

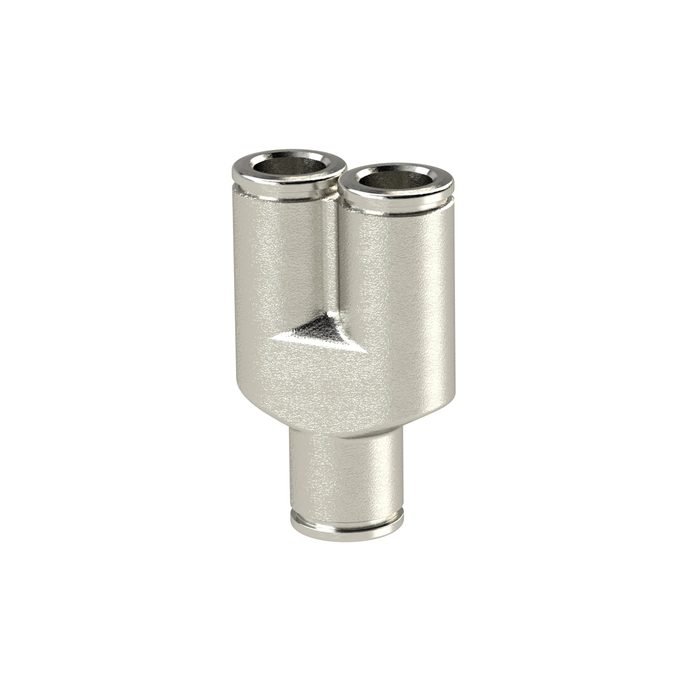

![[129844] RIEGLER Y-connector "metallica", for hose outer Ø 4, MS nickel-plated.](/web/image/product.template/273064/image_128/%5B129844%5D%20RIEGLER%20Y-connector%20%22metallica%22%2C%20for%20hose%20outer%20%C3%98%204%2C%20MS%20nickel-plated.?unique=2e2c3b5)
|
