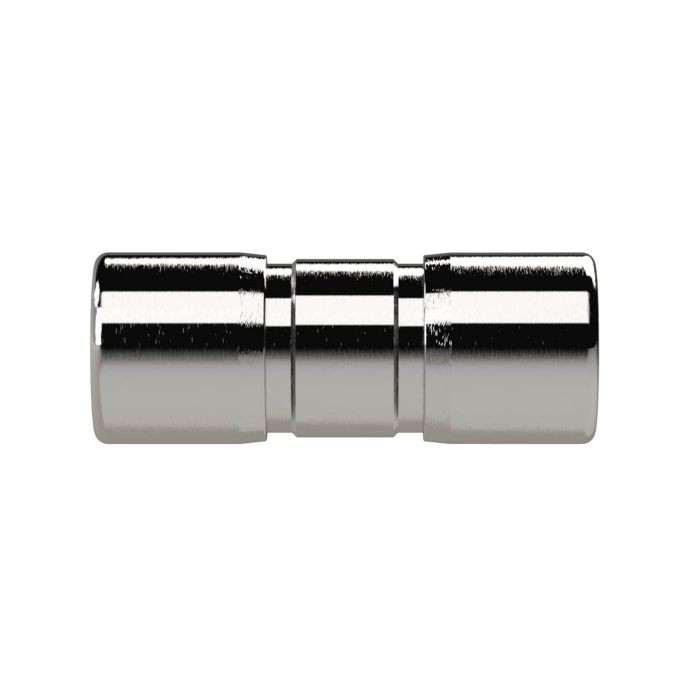

RIEGLER Straight connector "NonPlusUltra", Ø 12 mm, PU 10 pcs.
Type number: 847.012 ES FDA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Gerade Steckverbindung »NonPlusUltra« aus Edelstahl 1.4404, für Pneumatikinstallation – Typ 847.012 ES FDA
Das RIEGLER Gerade Steckverbindung »NonPlusUltra«, Ø 12 mm, VPE 10 Stk. ermöglicht die schnelle, werkzeugfreie Verbindung von Druckluftleitungen – sicher abdichtend und sofort belastbar. Das Gehäuse besteht aus Edelstahl 1.4404 mit Dichtungen aus FPM (FDA-konform). Die Betriebstemperatur liegt zwischen -20 °C und 150 °C. Geeignet für Druckluft, neutrale Gase und Flüssigkeiten, Öl, Fett. Schnelle Montage ohne Werkzeug – spart Zeit bei Installation und Umrüstung.
Einsatzbereich
Typische Anwendungsgebiete: Pneumatische Installationen, Maschinenverrohrung und Automatisierungstechnik.
| Medium | Compressed air, neutral gases and liquids, oil, grease |
| Sealing material | FPM (FDA-compliant) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| for hose outer Ø | 12 mm |
| L1 | 55.5 mm |
| D1 | 20 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45166 |
| Series | NonPlusUltra |
| Suitable pipe material | PE, PA, PU, PTFE, FEP, pipes |
| NW | 9.5 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

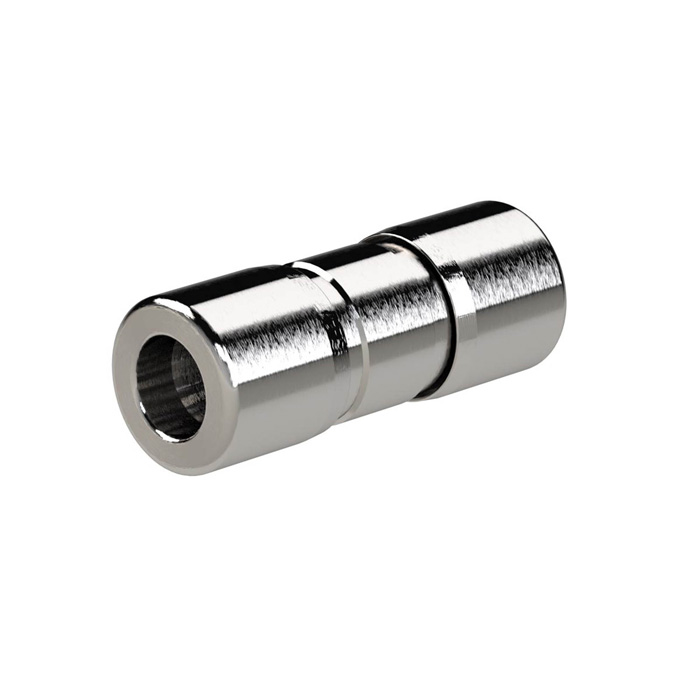

![[131730] RIEGLER Straight "NonPlusUltra" connector, Ø 10 mm, PU 10 pcs.](/web/image/product.template/278405/image_128/%5B131730%5D%20RIEGLER%20Straight%20%22NonPlusUltra%22%20connector%2C%20%C3%98%2010%20mm%2C%20PU%2010%20pcs.?unique=9efb535)
|
