RIEGLER Screw plug "NonPlusUltra", ISK, G1/2, SW10, PU10
Type number: VSSG12ES4404 FDA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

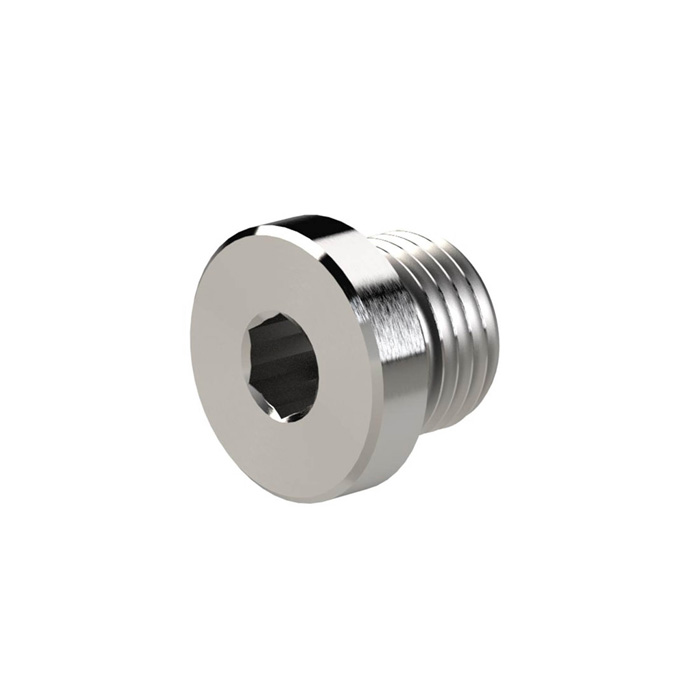

RIEGLER Screw plug "NonPlusUltra" made of stainless steel 1.4404, for pipeline construction, G 1/2 - type VSSG12ES4404 FDA
The RIEGLER screw plug "NonPlusUltra", ISK, G1/2, SW10, PU 10 pcs. is a high-quality accessory from the RIEGLER range. The housing is made of stainless steel 1.4404 with seals made of FPM (FDA-compliant). The operating temperature is between -20 °C and 150 °C. Connection thread G 1/2 (DIN ISO 228-1) - suitable for common industry standards. Suitable for compressed air, neutral gases and liquids, oil, grease. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Medium | Compressed air, neutral gases and liquids, oil, grease |
| Sealing material | FPM (FDA-compliant) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Thread | G 1/2 |
| SW | 10 mm |
| L1 | 16 mm |
| L2 | 11 mm |
| D1 | 26 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45166 |
| Series | NonPlusUltra |
| Suitable pipe material | PE, PA, PU, PTFE, FEP, pipes |
| Thread standard | DIN ISO 228-1 |
