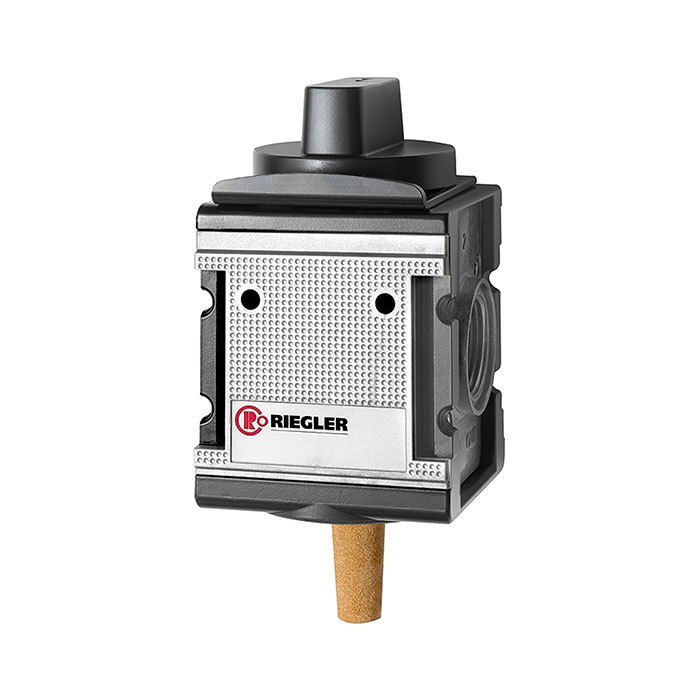

RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 4, G 3/4
Type number: K 44
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Ball valve 3/2-way "multifix", lockable, with vent hole, BG 4, G 3/4, PE max. 16 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 30000 l/min |
| Actuation | Toggle 90° rotatable |
| BG | 4 |
| A | 85 mm |
| B | 140 mm |
| C | 90 mm |
| D | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/2 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

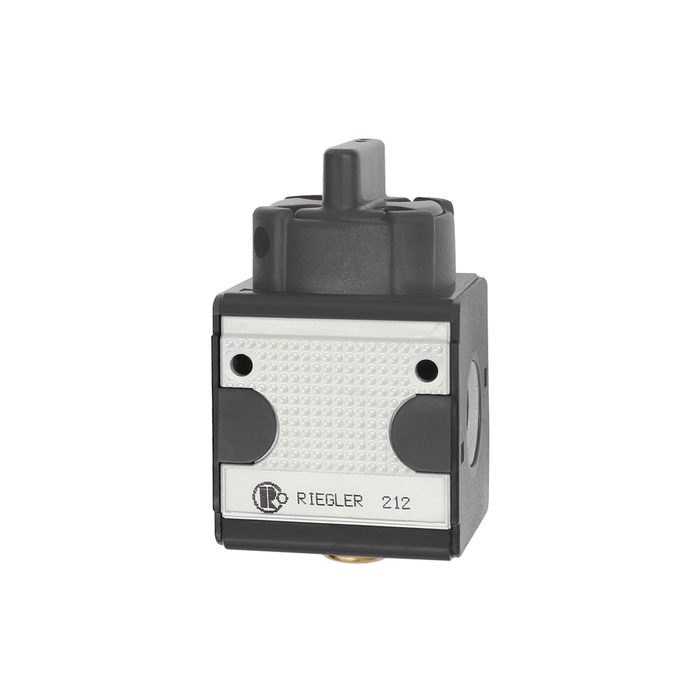

![[100611] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 1, G 1/4](/web/image/product.template/140046/image_128/%5B100611%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%201%2C%20G%201-4?unique=ac5dcc6)
|
Type number: K 11 |
31.84 € | |

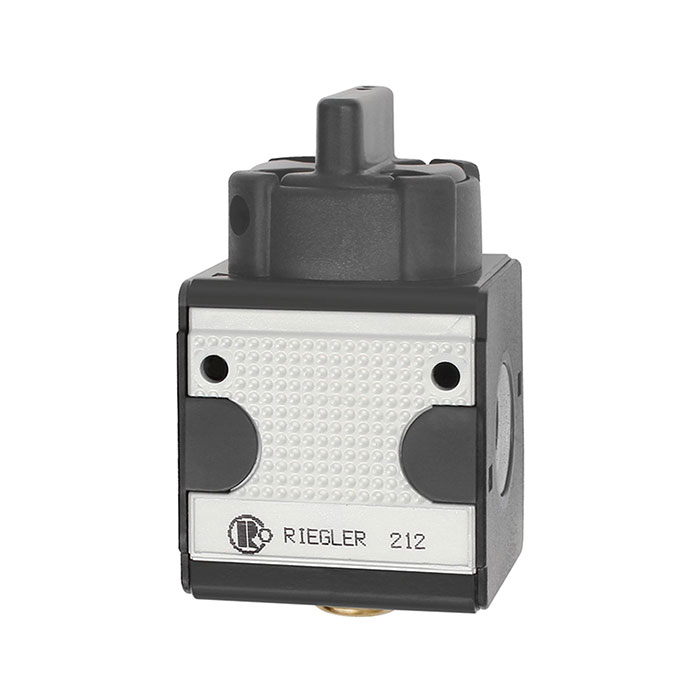

![[100612] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 1, G 3/8](/web/image/product.template/140047/image_128/%5B100612%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%201%2C%20G%203-8?unique=9ed6b30)
|
Type number: K 12 |
31.84 € | |

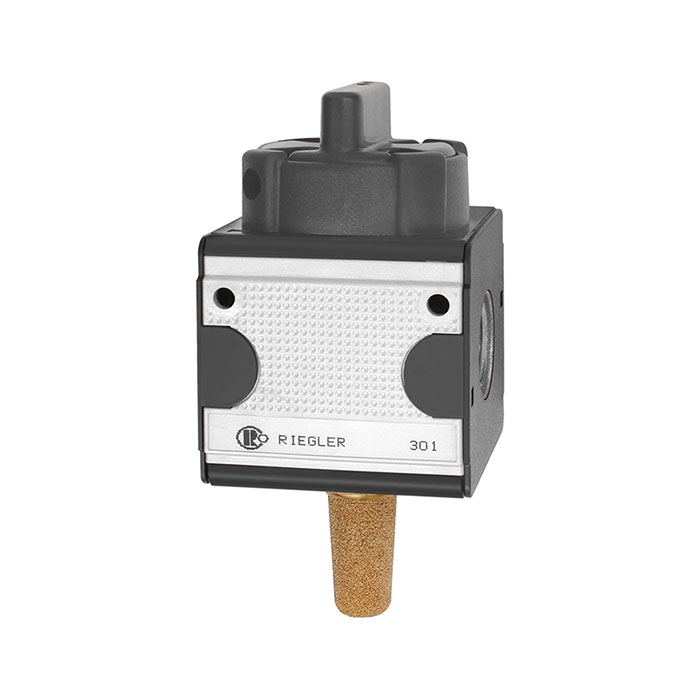

![[100613] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 3, G 1/2](/web/image/product.template/140048/image_128/%5B100613%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%203%2C%20G%201-2?unique=108324d)
|
Type number: K 33 |
45.60 € | |
![[100614] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 3, G 3/4](/web/image/product.template/140049/image_128/%5B100614%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%203%2C%20G%203-4?unique=b0d1f12)
|
Type number: K 34 |
45.60 € | |
![[133134] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 4, G 1](/web/image/product.template/202784/image_128/%5B133134%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%204%2C%20G%201?unique=4bdb678)
|
Type number: K 45 |
129.10 € | |

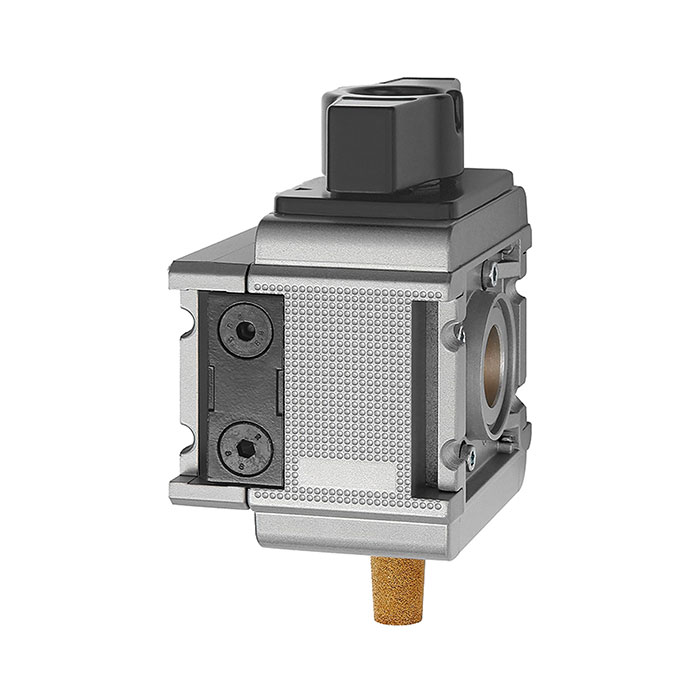

![[100615] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 5, G 1](/web/image/product.template/140050/image_128/%5B100615%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%205%2C%20G%201?unique=99dc0b4)
|
Type number: K 55 |
146.89 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

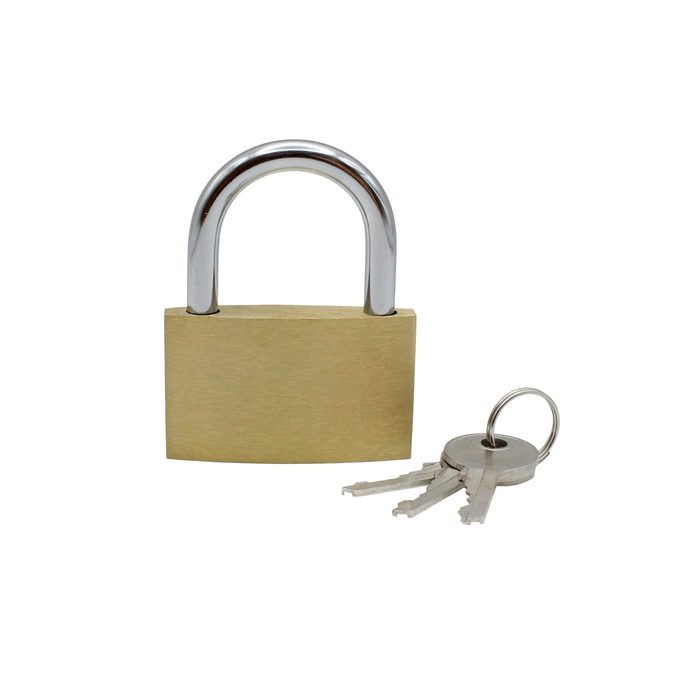

![[100273] Riegler Padlock, brass, 50 mm, band Ø 6 mm, incl. 3 keys](/web/image/product.template/132841/image_128/%5B100273%5D%20Riegler%20Padlock%2C%20brass%2C%2050%20mm%2C%20band%20%C3%98%206%20mm%2C%20incl.%203%20keys?unique=26f560c)
|
Type number: VS 37 |
11.00 € | |

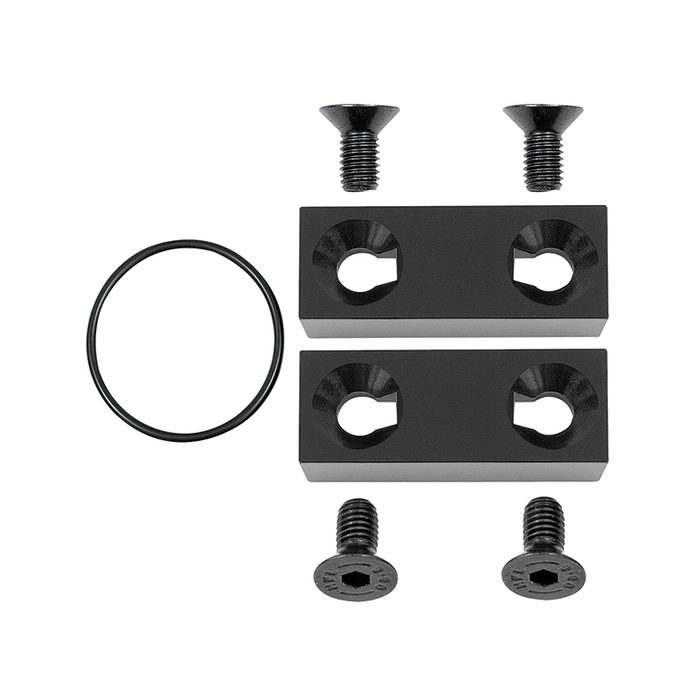

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=2856254)
|
Type number: KP 45 |
7.75 € | |
![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=1b80091)
|
Type number: ZW 45 |
13.19 € | |
