RIEGLER Microfilter »multifix«, PC container, Protec. cage, Size 4, G 1
Type number: FM 45 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter "multifix", PC container and protective cage, 0.01 µm, BG 4, G 1, PE max. 16 bar, med. ambient temp. max. 60 °C, drain: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter element | Borosilicate POM |
| Filter fineness | 0.01 µm |
| Residual oil content | 0.01 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1 |
| Flow rate | 1500 l/min |
| Condensate drain | semi-automatic |
| DN | 25 |
| BG | 4 |
| A | 85 mm |
| B | 248 mm |
| C | 58 mm |
| D | 190 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100535] RIEGLER Microfilter »multifix«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/139970/image_128/%5B100535%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=f097f19)
|
Type number: FM 11 S |
81.85 € | |

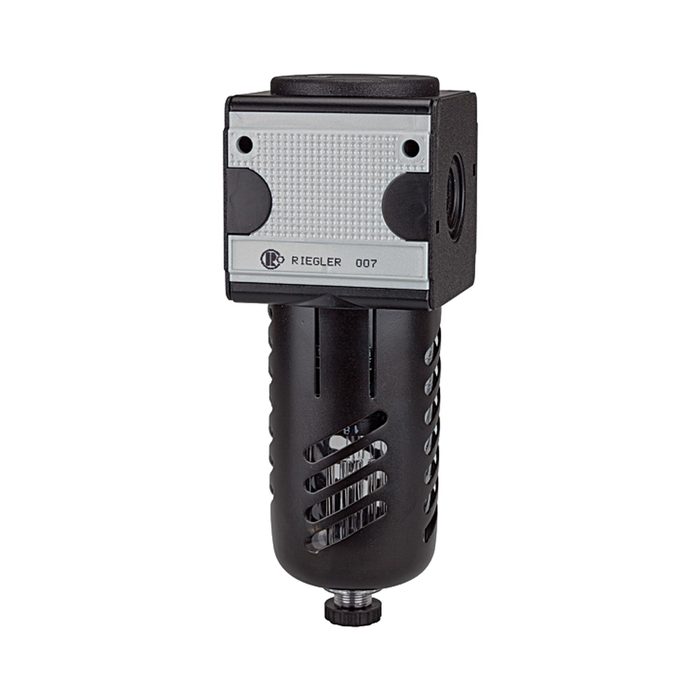

![[100536] RIEGLER Microfilter »multifix«, PC container, Protec. cage, Size 3, G 1/2](/web/image/product.template/139971/image_128/%5B100536%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%201-2?unique=cf9df70)
|
Type number: FM 33 S |
128.58 € | |
![[133145] RIEGLER Microfilter »multifix«, PC container, Protec. cage, Size 4, G 3/4](/web/image/product.template/202795/image_128/%5B133145%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%203-4?unique=d9da62d)
|
Type number: FM 44 S |
173.86 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=afea987)
|
Type number: 655.6.900 |
36.96 € | |
![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=23193da)
|
Type number: KP 45 |
7.87 € | |
![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=9413519)
|
Type number: ZW 45 |
13.19 € | |
![[135860] RIEGLER Polycarbonate container with protective cage, fully automated](/web/image/product.template/206216/image_128/%5B135860%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20fully%20automated?unique=f34585a)
|
Type number: KSS 45 F-A |
56.08 € | |
![[135861] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206217/image_128/%5B135861%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=ed7bed3)
|
Type number: MS 45 FS |
44.98 € | |
![[135862] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206218/image_128/%5B135862%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=af8bb8f)
|
Type number: MS 45 FS-A |
84.61 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[135859] RIEGLER Polycarbonate container with protective cage, semi-automated](/web/image/product.template/206215/image_128/%5B135859%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20semi-automated?unique=0a1eb10)
|
Type number: KSS 45 F-HA |
15.84 € | |
