RIEGLER Elbow 1, 90° long Rp 11/2IT,R 11/2ET black malleable iron fitting
Type number: TFB 1-112-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Elbow 1, 90°, long, Rp 1 1/2 i., R 1 1/2 a., malleable cast iron black, operating temperature -20 °C to 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 1 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133576] RIEGLER Elbow 1, 90° long Rp 11/4IT,R 11/4ET black malleable iron fitting](/web/image/product.template/202944/image_128/%5B133576%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%2011-4IT%2CR%2011-4ET%20black%20malleable%20iron%20fitting?unique=237e1d2)
|
Type number: TFB 1-114-S |
6.90 € | |

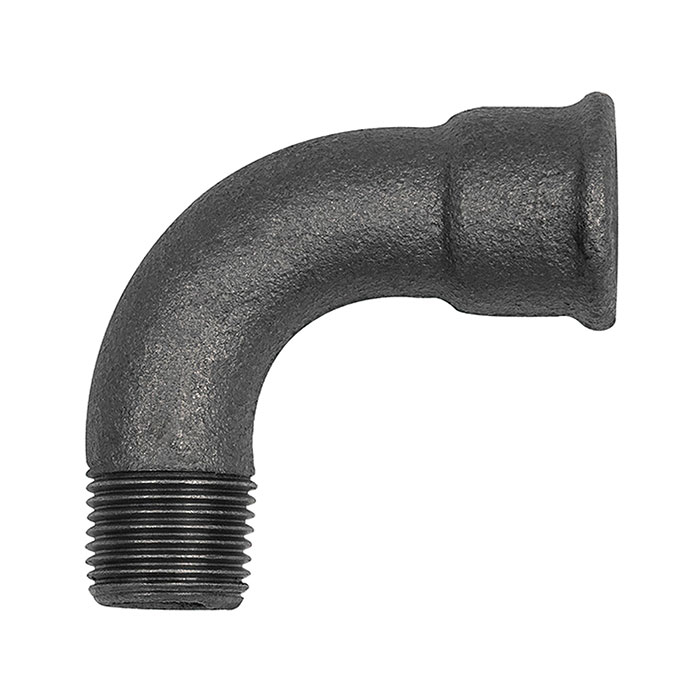

![[133574] RIEGLER Elbow 1, 90° long Rp 1/2 IT,R 1/2 ET black malleable iron fitting](/web/image/product.template/202942/image_128/%5B133574%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%201-2%20IT%2CR%201-2%20ET%20black%20malleable%20iron%20fitting?unique=db2460a)
|
Type number: TFB 1-12-S |
1.76 € | |

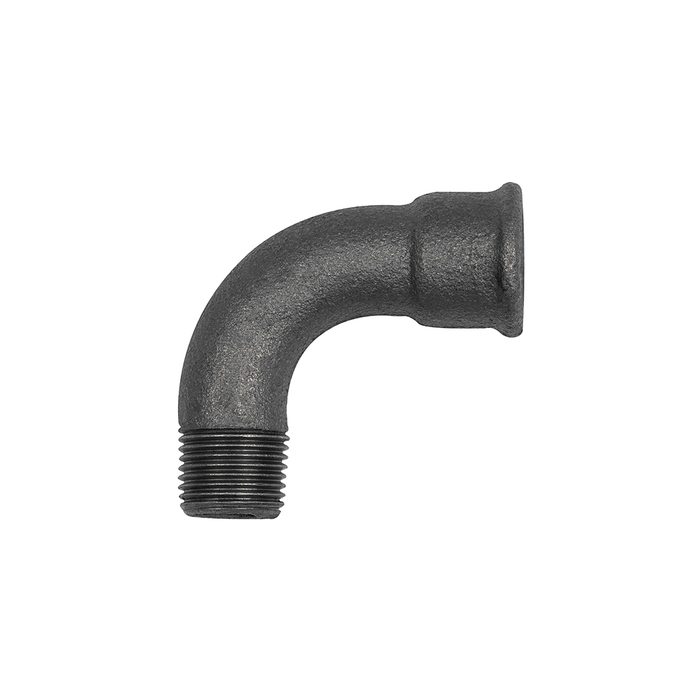

![[133572] RIEGLER Elbow 1, 90° long Rp 1/4 IT,R 1/4 ET black malleable iron fitting](/web/image/product.template/202940/image_128/%5B133572%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%201-4%20IT%2CR%201-4%20ET%20black%20malleable%20iron%20fitting?unique=efdfe0f)
|
Type number: TFB 1-14-S |
1.62 € | |
![[133578] RIEGLER Elbow 1, 90° long Rp 2 IT,R 2 ET black malleable iron fitting](/web/image/product.template/202946/image_128/%5B133578%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%202%20IT%2CR%202%20ET%20black%20malleable%20iron%20fitting?unique=22583a4)
|
Type number: TFB 1-20-S |
14.86 € | |
![[133575] RIEGLER Elbow 1, 90° long Rp 3/4 IT,R 3/4 ET black malleable iron fitting](/web/image/product.template/202943/image_128/%5B133575%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%203-4%20IT%2CR%203-4%20ET%20black%20malleable%20iron%20fitting?unique=874dd0b)
|
Type number: TFB 1-34-S |
2.96 € | |
![[133573] RIEGLER Elbow 1, 90° long Rp 3/8 IT,R 3/8 ET black malleable iron fitting](/web/image/product.template/202941/image_128/%5B133573%5D%20RIEGLER%20Elbow%201%2C%2090%C2%B0%20long%20Rp%203-8%20IT%2CR%203-8%20ET%20black%20malleable%20iron%20fitting?unique=9c6edba)
|
Type number: TFB 1-38-S |
2.03 € | |
