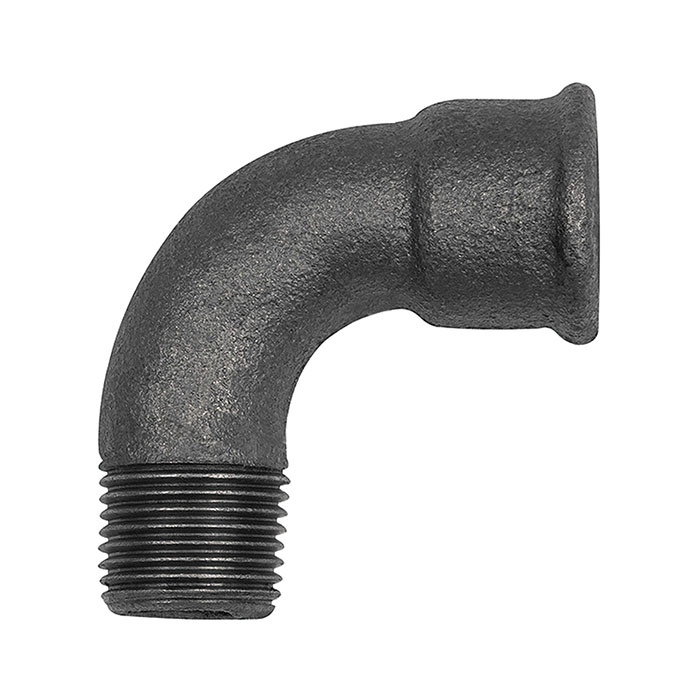

RIEGLER Elbow 1a 90°short Rp11/4 IT,R11/4 ET black malleable iron fitting
Type number: TFB 1A-114-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Elbow 1a, 90°, short, Rp 1 1/4 i., R 1 1/4 a. Malleable cast iron black, operating temperature -20 °C to 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 1 1/4 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133584] RIEGLER Elbow 1a 90°short Rp11/2 IT,R11/2 ET black malleable iron fitting](/web/image/product.template/202952/image_128/%5B133584%5D%20RIEGLER%20Elbow%201a%2090%C2%B0short%20Rp11-2%20IT%2CR11-2%20ET%20black%20malleable%20iron%20fitting?unique=459205c)
|
Type number: TFB 1A-112-S |
7.18 € | |

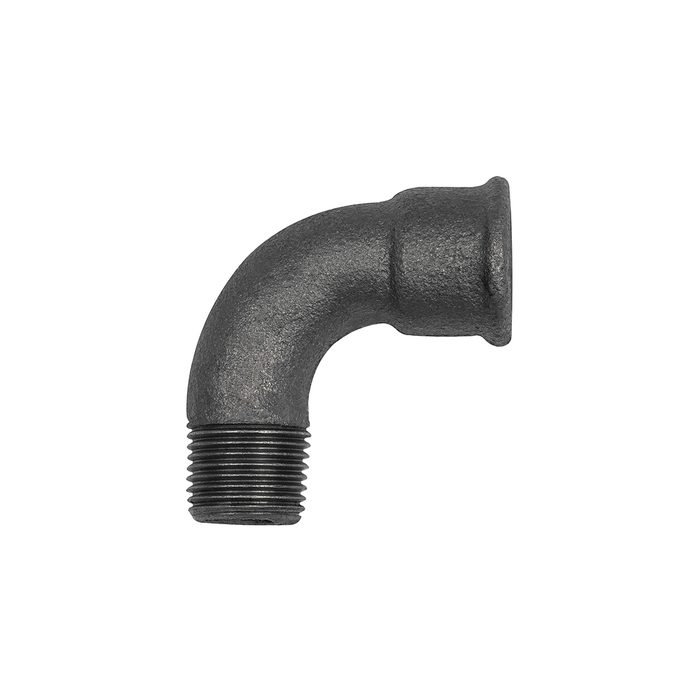

![[133580] RIEGLER Elbow 1a 90°short Rp 1/2 IT,R 1/2 ET black malleable iron fitting](/web/image/product.template/202948/image_128/%5B133580%5D%20RIEGLER%20Elbow%201a%2090%C2%B0short%20Rp%201-2%20IT%2CR%201-2%20ET%20black%20malleable%20iron%20fitting?unique=b0f8532)
|
Type number: TFB 1A-12-S |
1.62 € | |
![[133582] RIEGLER Elbow 1a 90°short Rp 1 IT, R 1 ET black malleable iron fitting](/web/image/product.template/202950/image_128/%5B133582%5D%20RIEGLER%20Elbow%201a%2090%C2%B0short%20Rp%201%20IT%2C%20R%201%20ET%20black%20malleable%20iron%20fitting?unique=ef82c0a)
|
Type number: TFB 1A-10-S |
3.24 € | |
![[133586] RIEGLER Elbow 1a 90°short Rp21/2 IT,R21/2 ET black malleable iron fitting](/web/image/product.template/202954/image_128/%5B133586%5D%20RIEGLER%20Elbow%201a%2090%C2%B0short%20Rp21-2%20IT%2CR21-2%20ET%20black%20malleable%20iron%20fitting?unique=b695a38)
|
Type number: TFB 1A-212-S |
21.09 € | |
![[133585] RIEGLER Elbow 1a 90° short Rp 2 IT, R 2 ET black malleable iron fitting](/web/image/product.template/202953/image_128/%5B133585%5D%20RIEGLER%20Elbow%201a%2090%C2%B0%20short%20Rp%202%20IT%2C%20R%202%20ET%20black%20malleable%20iron%20fitting?unique=2a8f5dd)
|
Type number: TFB 1A-20-S |
12.57 € | |
![[133581] RIEGLER Elbow 1a 90°short Rp 3/4 IT,R 3/4 ET black malleable iron fitting](/web/image/product.template/202949/image_128/%5B133581%5D%20RIEGLER%20Elbow%201a%2090%C2%B0short%20Rp%203-4%20IT%2CR%203-4%20ET%20black%20malleable%20iron%20fitting?unique=abde23a)
|
Type number: TFB 1A-34-S |
2.30 € | |
