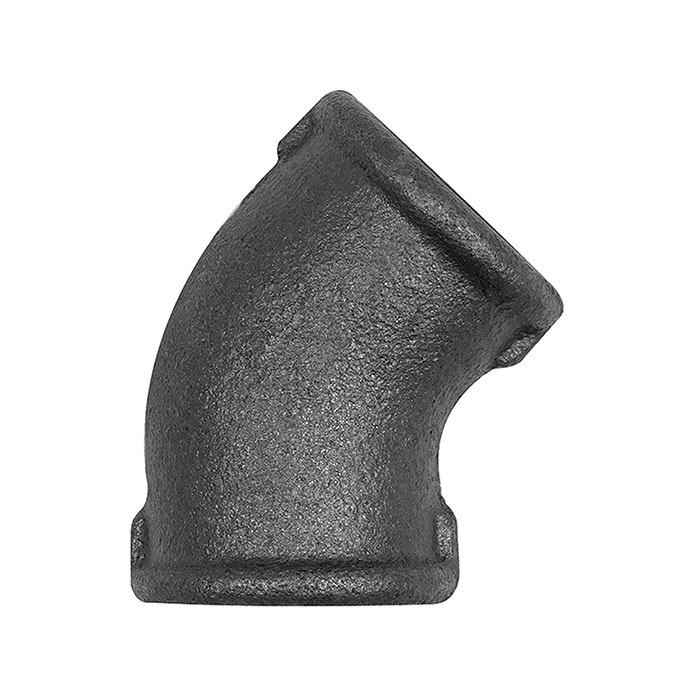

RIEGLER Bracket 120, 45° Rp 1/2 IT,Rp 1/2 IT black malleable iron fitting
Type number: TFW 120-12-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel 120, 45°, Rp 1/2 i., Rp 1/2 i., Temperguss schwarz, Betriebstemperatur -20 °C bis 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133660] RIEGLER Bracket 120, 45° Rp11/2 IT,Rp11/2 IT black malleable iron fitting](/web/image/product.template/203028/image_128/%5B133660%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%20Rp11-2%20IT%2CRp11-2%20IT%20black%20malleable%20iron%20fitting?unique=28734ac)
|
Type number: TFW 120-112-S |
7.57 € | |
![[133659] RIEGLER Bracket 120, 45° Rp11/4 IT,Rp11/4 IT,black malleable iron fitting](/web/image/product.template/203027/image_128/%5B133659%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%20Rp11-4%20IT%2CRp11-4%20IT%2Cblack%20malleable%20iron%20fitting?unique=d4d88be)
|
Type number: TFW 120-114-S |
6.47 € | |
![[133658] RIEGLER Bracket 120, 45°, Rp 1 IT, Rp 1 IT, black malleable iron fitting](/web/image/product.template/203026/image_128/%5B133658%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%2C%20Rp%201%20IT%2C%20Rp%201%20IT%2C%20black%20malleable%20iron%20fitting?unique=9f233a1)
|
Type number: TFW 120-10-S |
3.38 € | |
![[133662] RIEGLER Bracket 120, 45° Rp21/2 IT,Rp21/2 IT black malleable iron fitting](/web/image/product.template/203030/image_128/%5B133662%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%20Rp21-2%20IT%2CRp21-2%20IT%20black%20malleable%20iron%20fitting?unique=6727477)
|
Type number: TFW 120-212-S |
20.53 € | |
![[133661] RIEGLER Bracket 120, 45°, Rp 2 IT, Rp 2 IT, black malleable iron fitting](/web/image/product.template/203029/image_128/%5B133661%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%2C%20Rp%202%20IT%2C%20Rp%202%20IT%2C%20black%20malleable%20iron%20fitting?unique=084c63c)
|
Type number: TFW 120-20-S |
9.71 € | |
![[133657] RIEGLER Bracket 120, 45° Rp 3/4 IT,Rp 3/4 IT black malleable iron fitting](/web/image/product.template/203025/image_128/%5B133657%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%20Rp%203-4%20IT%2CRp%203-4%20IT%20black%20malleable%20iron%20fitting?unique=3586fb4)
|
Type number: TFW 120-34-S |
2.15 € | |
![[133655] RIEGLER Bracket 120, 45° Rp 3/8 IT,Rp 3/8 IT black malleable iron fitting](/web/image/product.template/203023/image_128/%5B133655%5D%20RIEGLER%20Bracket%20120%2C%2045%C2%B0%20Rp%203-8%20IT%2CRp%203-8%20IT%20black%20malleable%20iron%20fitting?unique=7b5e765)
|
Type number: TFW 120-38-S |
2.25 € | |
