RIEGLER Bracket 121, 45° Rp11/2 IT, R11/2 ET black malleable iron fitting
Type number: TFW 121-112-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 121 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFW 121-112-S
The RIEGLER elbow 121, 45°, Rp 1 1/2 i., R 1 1/2 a., malleable cast iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/R 1 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 1 1/2 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

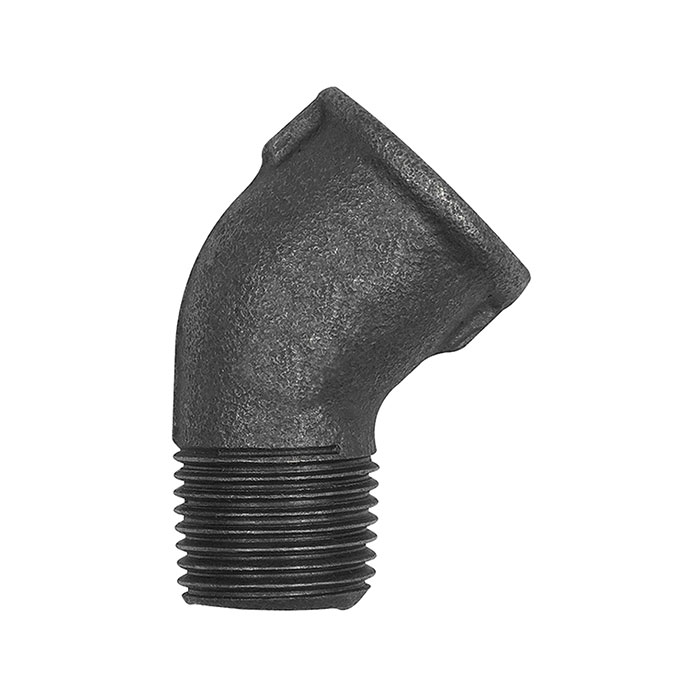

![[133667] RIEGLER Bracket 121, 45° Rp11/4 IT, R11/4 ET black malleable iron fitting](/web/image/product.template/203035/image_128/%5B133667%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%20Rp11-4%20IT%2C%20R11-4%20ET%20black%20malleable%20iron%20fitting?unique=0e39b43)
|
Type number: TFW 121-114-S |
6.47 € | |
![[133664] RIEGLER Bracket 121, 45° Rp 1/2 IT, R 1/2 ET black malleable iron fitting](/web/image/product.template/203032/image_128/%5B133664%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%20Rp%201-2%20IT%2C%20R%201-2%20ET%20black%20malleable%20iron%20fitting?unique=a2e758b)
|
Type number: TFW 121-12-S |
1.76 € | |
![[133666] RIEGLER Bracket 121, 45°, Rp 1 IT, R 1 ET, black malleable iron fitting](/web/image/product.template/203034/image_128/%5B133666%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%2C%20Rp%201%20IT%2C%20R%201%20ET%2C%20black%20malleable%20iron%20fitting?unique=490bd54)
|
Type number: TFW 121-10-S |
3.67 € | |
![[133669] RIEGLER Bracket 121, 45°, Rp 2 IT, R 2 ET, black malleable iron fitting](/web/image/product.template/203037/image_128/%5B133669%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%2C%20Rp%202%20IT%2C%20R%202%20ET%2C%20black%20malleable%20iron%20fitting?unique=57c0f11)
|
Type number: TFW 121-20-S |
9.44 € | |
![[133665] RIEGLER Bracket 121, 45° Rp 3/4 IT, R 3/4 ET black malleable iron fitting](/web/image/product.template/203033/image_128/%5B133665%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%20Rp%203-4%20IT%2C%20R%203-4%20ET%20black%20malleable%20iron%20fitting?unique=f1c2497)
|
Type number: TFW 121-34-S |
2.43 € | |
![[133663] RIEGLER Bracket 121, 45° Rp 3/8 IT, R 3/8 ET black malleable iron fitting](/web/image/product.template/203031/image_128/%5B133663%5D%20RIEGLER%20Bracket%20121%2C%2045%C2%B0%20Rp%203-8%20IT%2C%20R%203-8%20ET%20black%20malleable%20iron%20fitting?unique=1ea61d7)
|
Type number: TFW 121-38-S |
1.96 € | |
