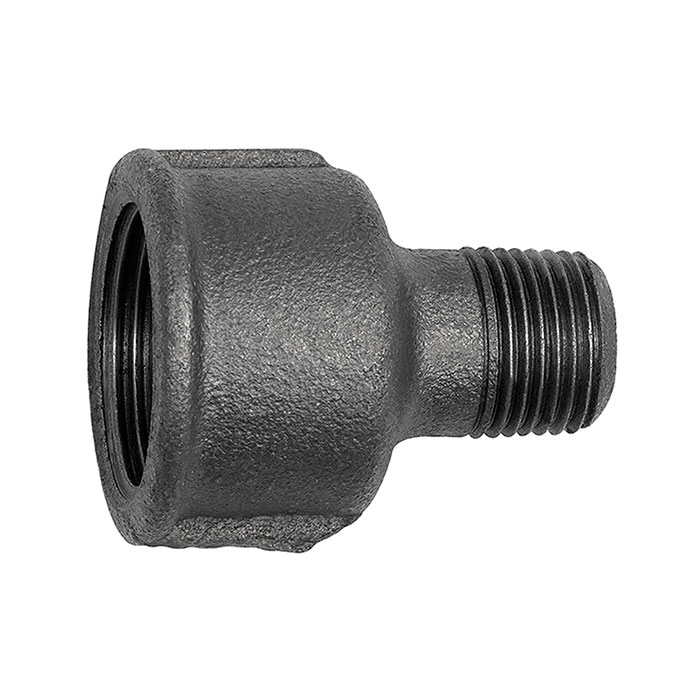

RIEGLER Reducing sleeve 246, Rp 2 1/2 IT, R 2 ET
Type number: TFM 246-21220-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing sleeve 246 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - type TFM 246-21220-S
The RIEGLER reducing sleeve 246, Rp 2 1/2 i., R 2 a., black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread standard | according to ISO 7-1 |
| Thread 1 | Rp 2 1/2 |
| Thread 2 | R 2 |
| Class name | FLEX |
