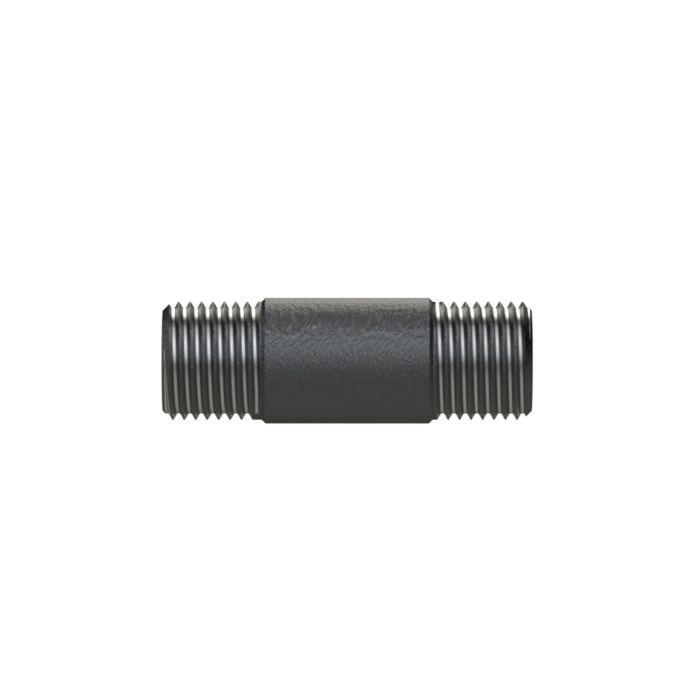

RIEGLER Pipe double nipple 23, ET/ET, R 1/4, Length 40.0 mm, DIN EN 10241
Type number: SFR23-1440-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pipe double nipple 23 made of black steel, for pipeline construction, max. 50 bar - type SFR23-1440-S
The RIEGLER pipe double nipple 23, male/female, R 1/4, length 40.0 mm, DIN EN 10241 connects steel pipes permanently and pressure-resistant. The housing is made of black steel. Designed for a maximum operating pressure of 50 bar. Connection thread R 1/4 (to EN 10241) - suitable for common industry standards. Pressure-resistant steel connections for high loads.
Field of application
Typical areas of application: Demanding industrial applications.
| Working pressure max. | 50 bar |
| Material | Black steel |
| Surface | Black steel |
| Thread | R 1/4 |
| Thread standard | according to EN 10241 |
| Length | 40 mm |
| Class name | FLEX |
