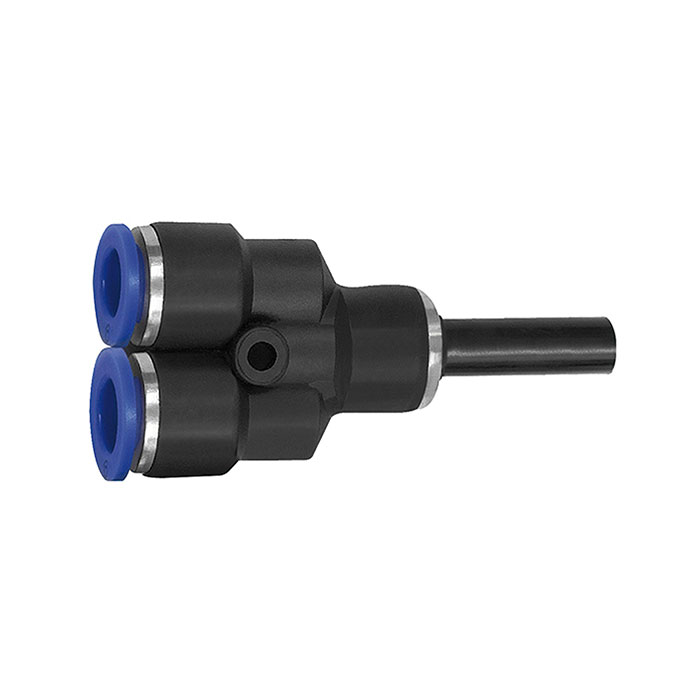

RIEGLER Push-in Y-connector, Plug nipple 12 mm »Blue Series«, reducing
Type number: 158.1208-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Y-connector made of plastic or nickel-plated brass, for pneumatic installation - Type 158.1208-K
The RIEGLER Y-connector, plug-in nipple 12 mm "Blue series" Ø 8, KS enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 8 mm |
| Plug nipple | 12 mm |

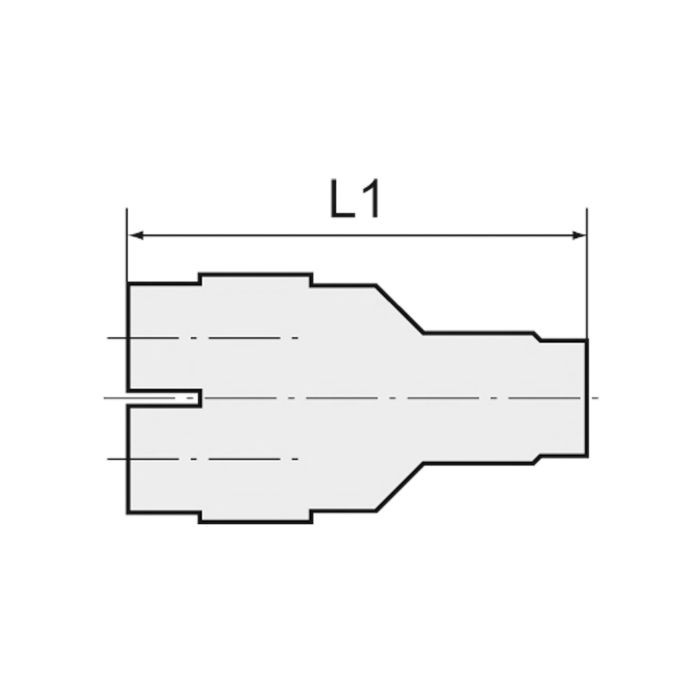

| L1 | 68.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125736] RIEGLER Push-in Y-connector, Plug nipple 10 mm »Blue Series«, reducing](/web/image/product.template/202578/image_128/%5B125736%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=4087c95)
|
Type number: 158.1008-K |
2.49 € | |
![[135773] RIEGLER Push-in Y-connector, Plug nipple 10 mm »Blue Series«, reducing](/web/image/product.template/206151/image_128/%5B135773%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=df765ac)
|
Type number: 158.1006-K |
2.03 € | |
![[125737] RIEGLER Push-in Y-connector, Plug nipple 12 mm »Blue Series«, reducing](/web/image/product.template/202579/image_128/%5B125737%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2012%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=a2517e9)
|
Type number: 158.1210-K |
3.27 € | |
![[135775] RIEGLER Push-in Y-connector, Plug nipple 16 mm »Blue Series«, reducing](/web/image/product.template/206153/image_128/%5B135775%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%2016%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=f24bc31)
|
Type number: 158.1610-K |
5.06 € | |

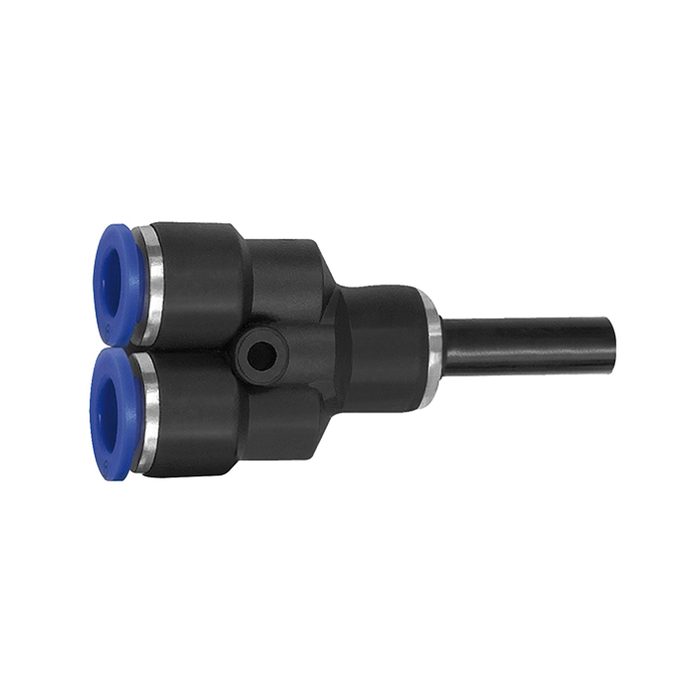

![[125734] RIEGLER Push-in Y-connector, Plug nipple 6 mm »Blue Series«, reducing](/web/image/product.template/202576/image_128/%5B125734%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%206%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=b977393)
|
