RIEGLER Stainless steel filterregler 1.4404, reversible, G 1/4, 0,5 - 8 bar
Type number: FRES.G14R.05-8B.T
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel filter regulator 1.4404 made of stainless steel 1.4404 (AISI 316L), for compressed air treatment - type FRES.G14R.05-8B.T
The RIEGLER stainless steel filter regulator 1.4404, reversible, G 1/4, 0.5 - 8 bar combines compressed air filtration and pressure regulation in one compact device. The housing is made of stainless steel 1.4404 (AISI 316L) with PU/HNBR seals. The control range extends from 0.5 bar to 8 bar with a maximum inlet pressure of 60 bar. The permissible medium temperature is between -40 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Filter fineness 50 µm. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| A | 223 mm |
| B | 62 mm |
| C | 97 mm |
| Sealing material | PU/HNBR |
| Flow 1 | 3500 l/min |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| E | 62 mm |
| Inlet pressure max. | 60 bar |
| F | 96 mm |
| Filter fineness | 50 µm |
| G | 20 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/4 |
| H | 28 mm |
| I | 87 mm |
| Class name | STAINLESS STEEL |
| Condensate drain | manual drain |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Membrane | HNBR |
| Control range max. | 8 bar |
| Control range min. | 0.5 bar |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

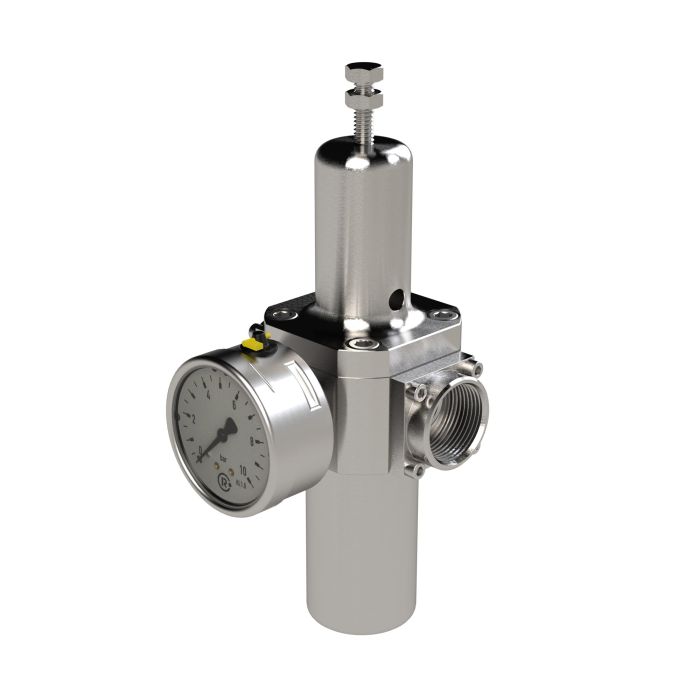

![[136634] RIEGLER Stainless steel filterregler 1.4404, reversible, G 1, 0,5 - 8 bar](/web/image/product.template/267669/image_128/%5B136634%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%201%2C%200%2C5%20-%208%20bar?unique=12f5a59)
|
Type number: FRES.G1R.05-8B.T |
1,025.49 € | |
![[136637] RIEGLER Stainless steel filterregler 1.4404, reversible, G 1, 1,0 - 17 bar](/web/image/product.template/267670/image_128/%5B136637%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%201%2C%201%2C0%20-%2017%20bar?unique=1788032)
|
Type number: FRES.G1R.1-17B.T |
1,032.29 € | |
![[136610] RIEGLER Stainless steel filterregler 1.4404, reversible, G 1/2, 0,5 - 8 bar](/web/image/product.template/268069/image_128/%5B136610%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%201-2%2C%200%2C5%20-%208%20bar?unique=1c594fa)
|
Type number: FRES.G12R.05-8B.T |
460.61 € | |
![[136613] RIEGLER Stainless steel filterregler 1.4404, reversible, G 1/2, 1,0 - 17 bar](/web/image/product.template/268071/image_128/%5B136613%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%201-2%2C%201%2C0%20-%2017%20bar?unique=b6a46f4)
|
Type number: FRES.G12R.1-17B.T |
467.40 € | |
![[136433] RIEGLER Stainless steel filterregler 1.4404, reversible, G 1/4, 1,0 - 17 bar](/web/image/product.template/268061/image_128/%5B136433%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%201-4%2C%201%2C0%20-%2017%20bar?unique=1fcc888)
|
Type number: FRES.G14R.1-17B.T |
421.82 € | |
![[136614] RIEGLER Stainless steel filterregler 1.4404, reversible, G 3/4, 0,5 - 8 bar](/web/image/product.template/268089/image_128/%5B136614%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%203-4%2C%200%2C5%20-%208%20bar?unique=5d34b60)
|
Type number: FRES.G34R.05-8B.T |
496.08 € | |
![[136625] RIEGLER Stainless steel filterregler 1.4404, reversible, G 3/4, 1,0 - 17 bar](/web/image/product.template/268090/image_128/%5B136625%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%203-4%2C%201%2C0%20-%2017%20bar?unique=c3e4821)
|
Type number: FRES.G34R.1-17B.T |
502.86 € | |

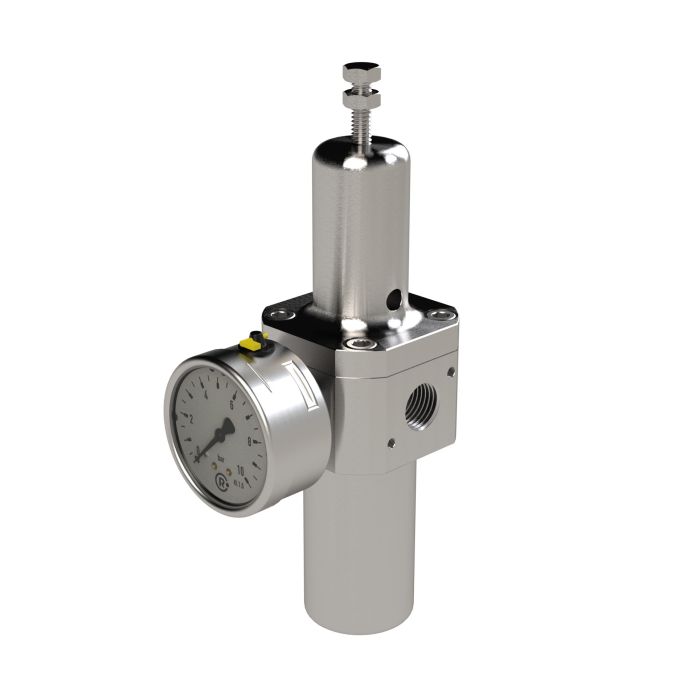

![[136584] RIEGLER Stainless steel filterregler 1.4404, reversible, G 3/8, 0,5 - 8 bar](/web/image/product.template/268062/image_128/%5B136584%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%203-8%2C%200%2C5%20-%208%20bar?unique=b802240)
|
Type number: FRES.G38R.05-8B.T |
435.29 € | |
![[136595] RIEGLER Stainless steel filterregler 1.4404, reversible, G 3/8, 1,0 - 17 bar](/web/image/product.template/268064/image_128/%5B136595%5D%20RIEGLER%20Stainless%20steel%20filterregler%201.4404%2C%20reversible%2C%20G%203-8%2C%201%2C0%20-%2017%20bar?unique=2ecf2bf)
|
Type number: FRES.G38R.1-17B.T |
442.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

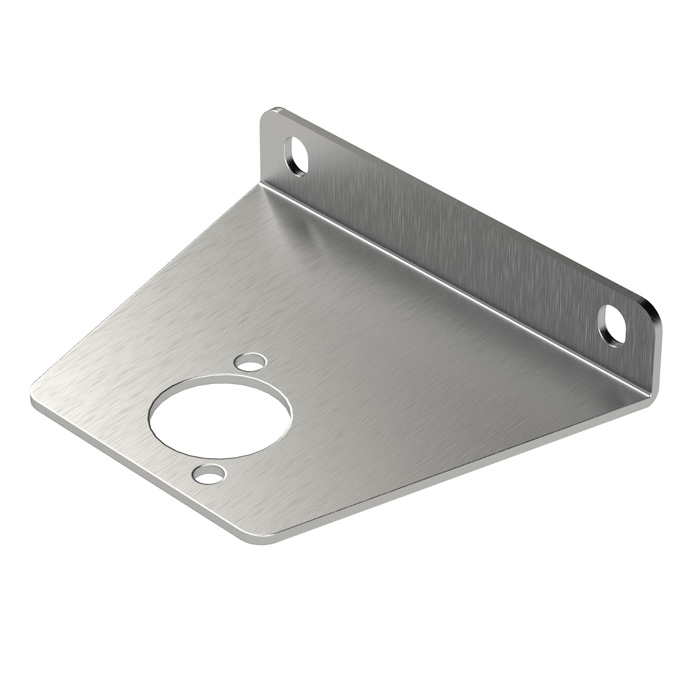

![[135505] RIEGLER Mounting bracket, for pressure regulators, filter regulators and filters, G 1/4 and G 3/8](/web/image/product.template/278495/image_128/%5B135505%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulators%2C%20filter%20regulators%20and%20filters%2C%20G%201-4%20and%20G%203-8?unique=9a4766f)
|
Type number: HWDRFRFES.G14.G38.T |
20.27 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

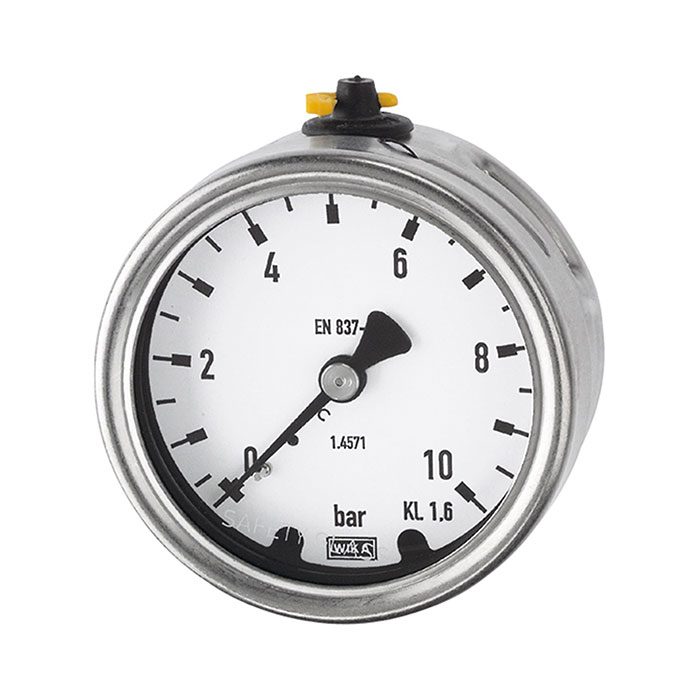

![[101201] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 10 bar, Ø 63](/web/image/product.template/140637/image_128/%5B101201%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2063?unique=025c7c2)
|
Type number: 4084 |
112.13 € | |

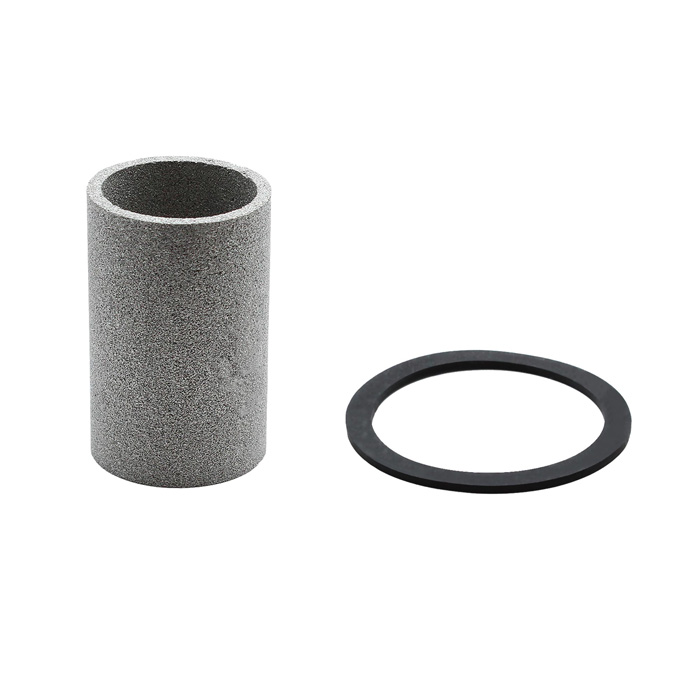

![[135054] RIEGLER Wear parts set, for filters and filter regulators, G 1/4 and G 3/8](/web/image/product.template/278491/image_128/%5B135054%5D%20RIEGLER%20Wear%20parts%20set%2C%20for%20filters%20and%20filter%20regulators%2C%20G%201-4%20and%20G%203-8?unique=6625992)
|
Type number: VTSFFRES.G14.G38.T |
38.00 € | |

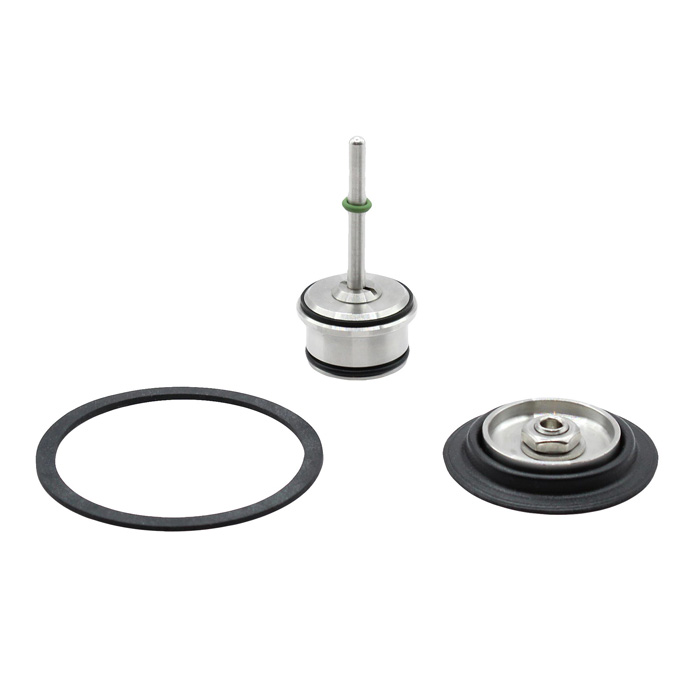

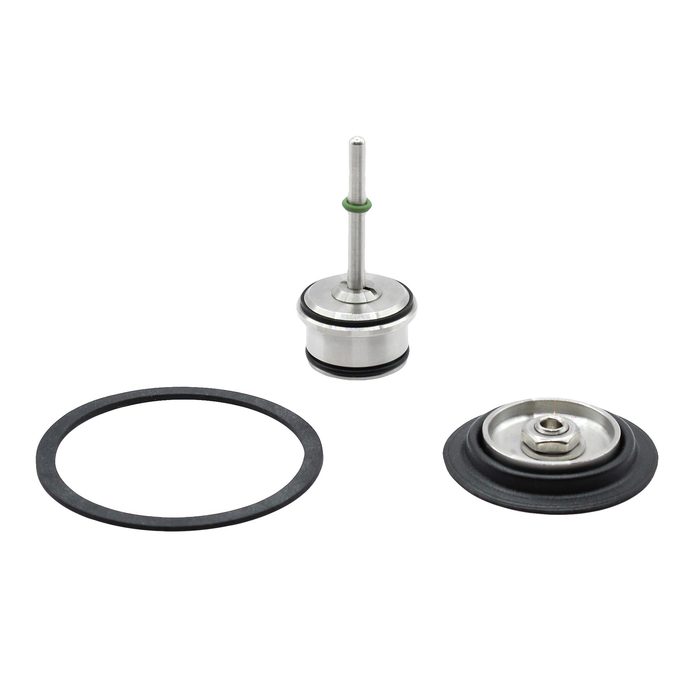

![[134954] RIEGLER Wear parts set, for pressure and filter regulators, G 1/4 and G 3/8](/web/image/product.template/278485/image_128/%5B134954%5D%20RIEGLER%20Wear%20parts%20set%2C%20for%20pressure%20and%20filter%20regulators%2C%20G%201-4%20and%20G%203-8?unique=49e6966)
|
Type number: VTSDRFRES.G14.G38R.T |
53.18 € | |
