RIEGLER Locking screw, Exterior hexagonal, with collar G 3/8, AF 17
Type number: MSN290SKMB38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass screw plug CW614N (electroplated nickel-plated) - Type MSN290SKMB38
The RIEGLER screw plug, external hexagon and collar, G 3/8, SW 17, MS nickel-plated closes open threaded connections pressure-tight. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. Connection thread G 3/8 external hexagon - suitable for common industry standards. Pressure-tight seal for open threaded connections.
Field of application
Typical areas of application: Protection of open connections against contamination.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| Thread | G 3/8 external hexagon |
| SW | 17 mm |
| L1 | 18 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136469] RIEGLER Locking screw, Exterior hexagonal, with collar G 1 1/2, AF 30](/web/image/product.template/207607/image_128/%5B136469%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20with%20collar%20G%201%201-2%2C%20AF%2030?unique=8438e9d)
|
Type number: MSN290SKMB112 |
15.27 € | |
![[136468] RIEGLER Locking screw, Exterior hexagonal, with collar G 1 1/4, AF 30](/web/image/product.template/207606/image_128/%5B136468%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20with%20collar%20G%201%201-4%2C%20AF%2030?unique=61a0f67)
|
Type number: MSN290SKMB114 |
12.82 € | |
![[136465] RIEGLER Locking screw, Exterior hexagonal, with collar G 1/2, AF 19](/web/image/product.template/207603/image_128/%5B136465%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20with%20collar%20G%201-2%2C%20AF%2019?unique=0964bea)
|
Type number: MSN290SKMB12 |
3.75 € | |
![[136463] RIEGLER Locking screw, Exterior hexagonal, with collar G 1/4, AF 13](/web/image/product.template/207601/image_128/%5B136463%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20with%20collar%20G%201-4%2C%20AF%2013?unique=5f0d08a)
|
Type number: MSN290SKMB14 |
2.25 € | |

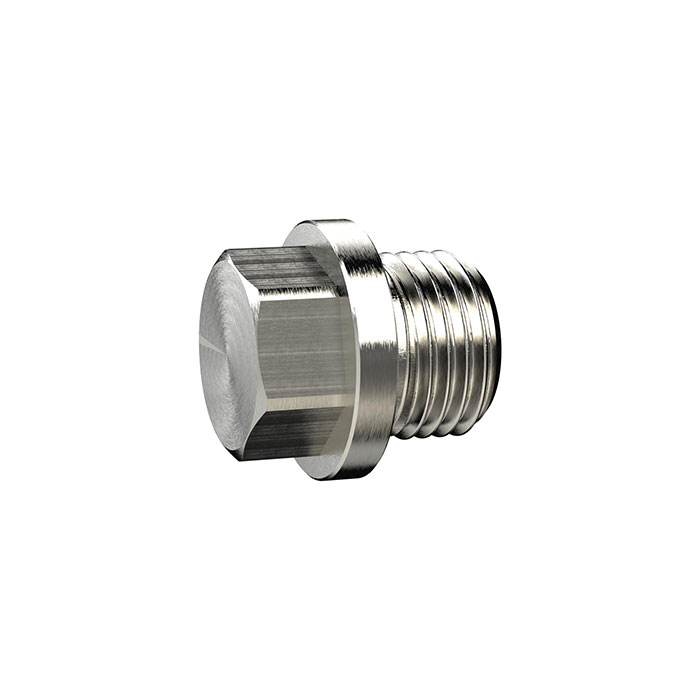

![[136462] RIEGLER Locking screw, Exterior hexagonal, with collar G 1/8, AF 10](/web/image/product.template/207600/image_128/%5B136462%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20with%20collar%20G%201-8%2C%20AF%2010?unique=088c719)
|
