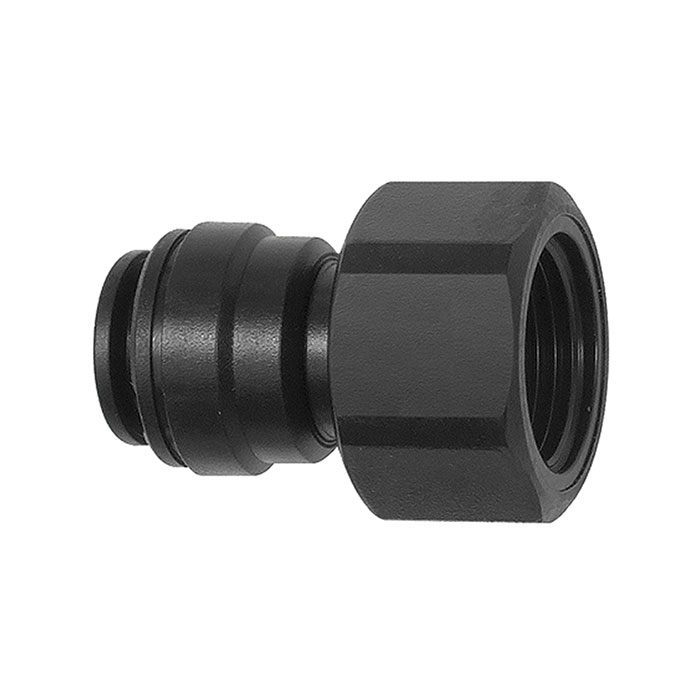

RIEGLER Screw-on connection POM, G 3/8, for hose exterior Ø 8 mm
Type number: 94.038-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-on connector POM made of acetal polymer (POM), for pneumatic installation - Type 94.038-8
The RIEGLER screw-on connector POM, G 3/8, for hose outer Ø 8 mm connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of acetal polymer (POM). The operating pressure range is -0.95 bar to 16 bar. G 3/8 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 16 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| Thread | G 3/8 |
| for hose outer Ø | 8 mm |

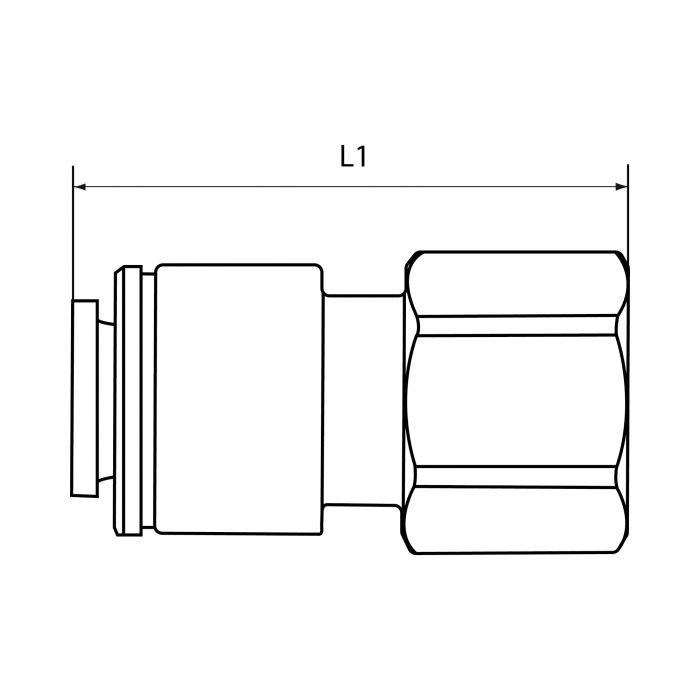

| L1 | 30.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
