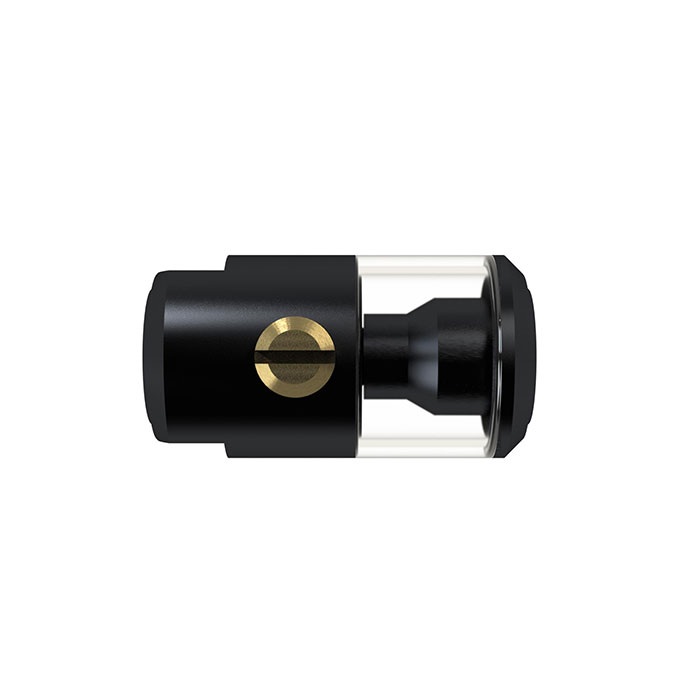

RIEGLER Mini mist lubricator, G 3/8, max. operating pressure 10 bar
Type number: MNOG38.10B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini mist lubricator for compressed air treatment, max. 10 bar, G 3/8 - Type MNOG38.10B
The RIEGLER mini mist lubricator, G 3/8, max. operating pressure 10 bar doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between 0 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| A | 33 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.03 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| B | 60 mm |
| Max. operating pressure | 10 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| DN | 8 |
| Flow direction | any |
| Installation position | Oil suction at the lowest point |
| Weight | 87 g |
| Thread | G 3/8 |
| Class name | FLEX |
| Material identification | CW614N |
| Medium temperature max. | 50 °C |
| Medium temperature min. | 0 °C |
| Oil reservoir | Polycarbonates |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

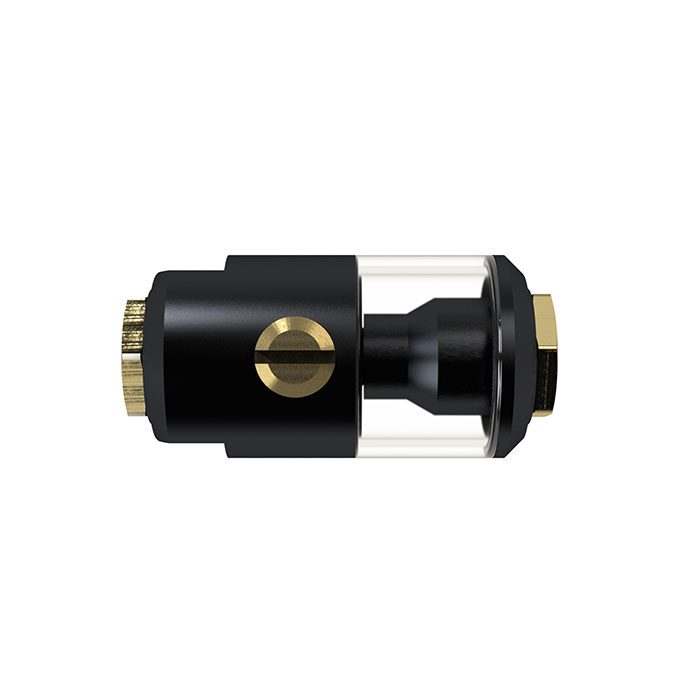

![[137701] RIEGLER Mini mist lubricator, G 1/4, max. operating pressure 10 bar](/web/image/product.template/268055/image_128/%5B137701%5D%20RIEGLER%20Mini%20mist%20lubricator%2C%20G%201-4%2C%20max.%20operating%20pressure%2010%20bar?unique=f27d0ee)
|
