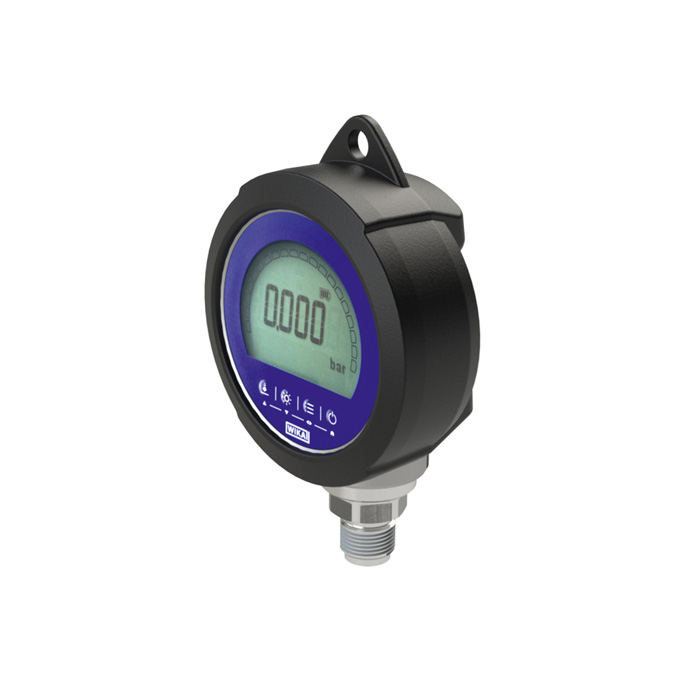

RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 60 bar, 0.1% FS, IP65
Type number: CPG15.12.60.1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Digital pressure gauge, type CPG1500, G 1/2, 0 - 60 bar, 0.1% FS, IP65, nickel-plated die-cast aluminum housing, incl. housing protection cap
| Housing | Die-cast aluminum, nickel-plated |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 60 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | MAX |
| Process connection material | CrNi steel 316L |
| Housing protection cap | enclosed |
| Memory | Min. / max. memory |
| Data transmission | Bluetooth® |
| Backlight | adjustable via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 2,000 - 2,500 h |
| Rotatability of housing | 330 ° |
| Calibration | 3.1 acceptance test certificate in accordance with EN 10204 (factory calibration) |
| Protection class | IP65 |
| Display | 5 1/2-digit 7-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1500 |
| Accuracy | 0.1% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[138927] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 1000 bar, 0.1% FS, IP65](/web/image/product.template/278557/image_128/%5B138927%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%201000%20bar%2C%200.1%25%20FS%2C%20IP65?unique=5691fe2)
|
Type number: CPG15.12.1000.1 |
1,020.40 € | |
![[138884] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 100 bar, 0.1% FS, IP65](/web/image/product.template/278553/image_128/%5B138884%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%20100%20bar%2C%200.1%25%20FS%2C%20IP65?unique=62b4cac)
|
Type number: CPG15.12.100.1 |
1,020.40 € | |
![[138547] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 10 bar, 0.1% FS, IP65](/web/image/product.template/278548/image_128/%5B138547%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2010%20bar%2C%200.1%25%20FS%2C%20IP65?unique=9cec892)
|
Type number: CPG15.12.10.1 |
1,020.40 € | |
![[138551] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 16 bar, 0.1% FS, IP65](/web/image/product.template/278549/image_128/%5B138551%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2016%20bar%2C%200.1%25%20FS%2C%20IP65?unique=72bd877)
|
Type number: CPG15.12.16.1 |
1,020.40 € | |
![[138885] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 250 bar, 0.1% FS, IP65](/web/image/product.template/278554/image_128/%5B138885%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%20250%20bar%2C%200.1%25%20FS%2C%20IP65?unique=bd460a2)
|
Type number: CPG15.12.250.1 |
1,020.40 € | |
![[138565] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 25 bar, 0.1% FS, IP65](/web/image/product.template/278550/image_128/%5B138565%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%2025%20bar%2C%200.1%25%20FS%2C%20IP65?unique=ed21a6e)
|
Type number: CPG15.12.25.1 |
1,020.40 € | |
![[138902] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 400 bar, 0.1% FS, IP65](/web/image/product.template/278555/image_128/%5B138902%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%20400%20bar%2C%200.1%25%20FS%2C%20IP65?unique=db94d46)
|
Type number: CPG15.12.400.1 |
1,020.40 € | |
![[138926] RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0 - 600 bar, 0.1% FS, IP65](/web/image/product.template/278556/image_128/%5B138926%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%200%20-%20600%20bar%2C%200.1%25%20FS%2C%20IP65?unique=3e32cc0)
|
Type number: CPG15.12.600.1 |
1,020.40 € | |
![[138710] RIEGLER Digital pressure gauge, CPG1500, G 1/2, -1 / 40 bar, 0.1% FS, IP65](/web/image/product.template/278551/image_128/%5B138710%5D%20RIEGLER%20Digital%20pressure%20gauge%2C%20CPG1500%2C%20G%201-2%2C%20-1%20-%2040%20bar%2C%200.1%25%20FS%2C%20IP65?unique=82fb171)
|
Type number: CPG15.12.-140.1 |
1,020.40 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

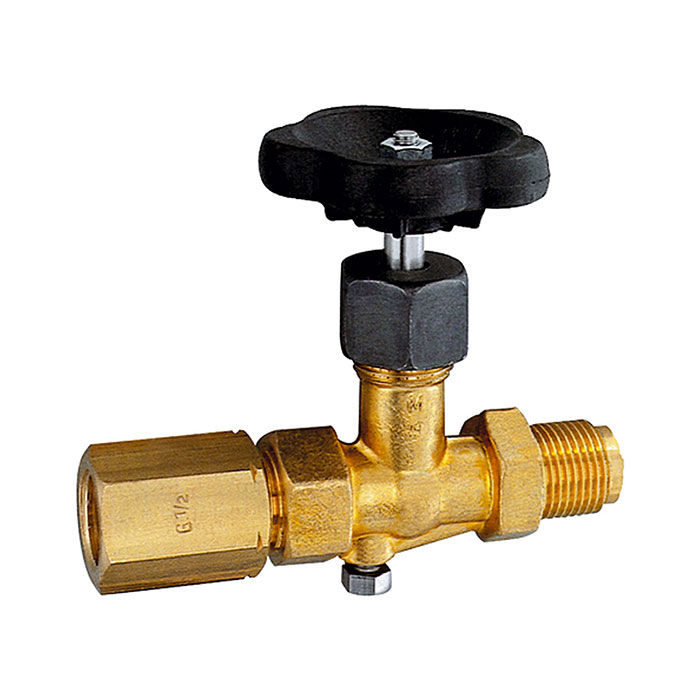

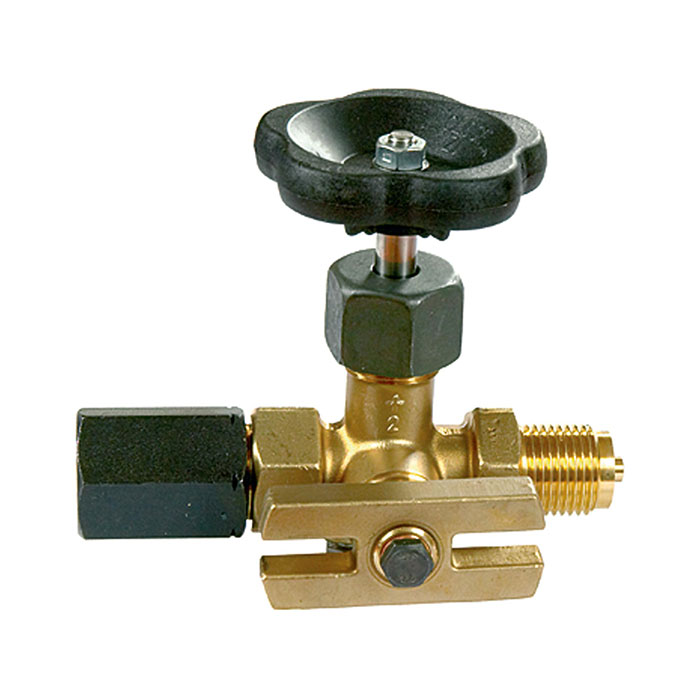

![[102664] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170636/image_128/%5B102664%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=31e496f)
|
Type number: 9016/ES |
77.85 € | |

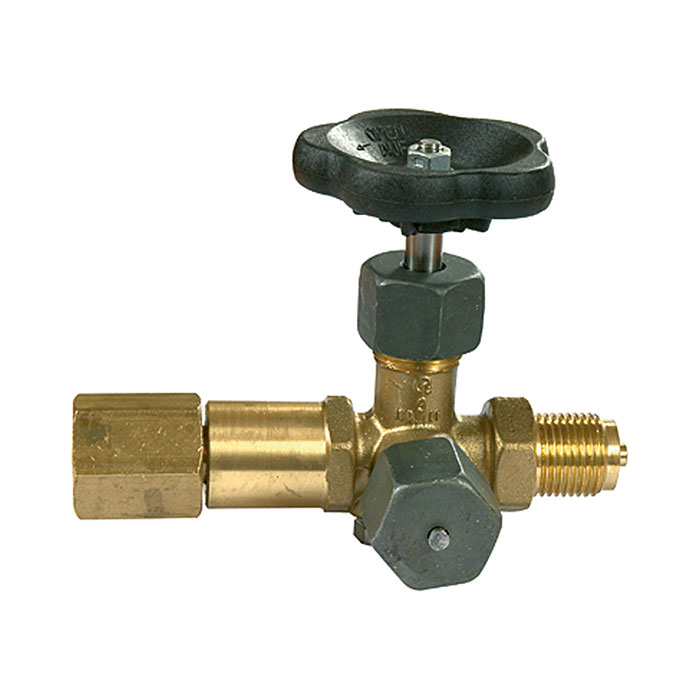

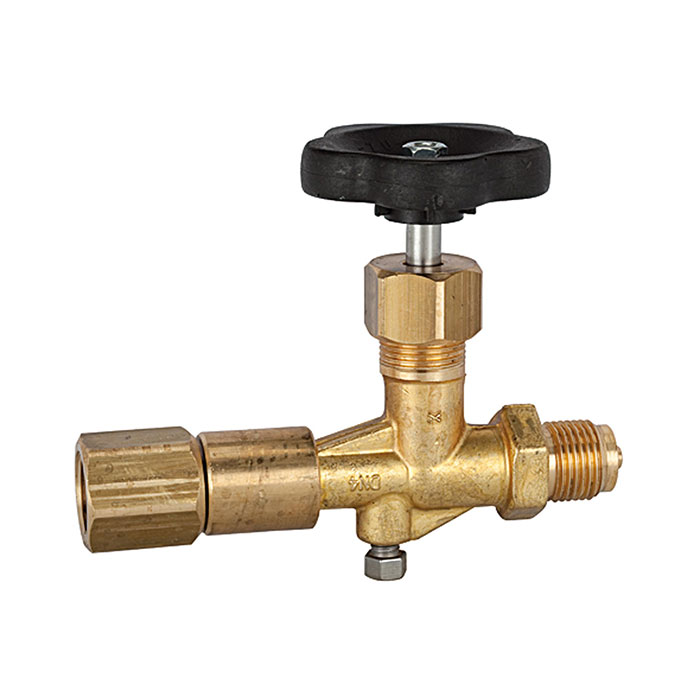

![[102666] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170638/image_128/%5B102666%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=1616d05)
|
Type number: 9080/ES |
98.51 € | |

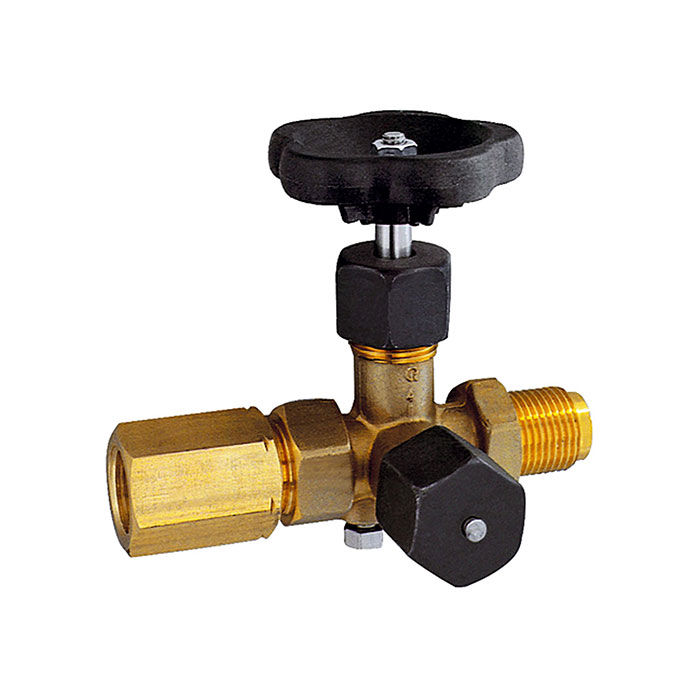

![[102669] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170641/image_128/%5B102669%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=c3a3be6)
|
Type number: 9115/ES |
98.51 € | |
![[102671] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170643/image_128/%5B102671%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=3c63eca)
|
Type number: 9180/ES |
105.07 € | |
![[102673] RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170645/image_128/%5B102673%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=2e603ee)
|
Type number: 9185/ES |
253.14 € | |

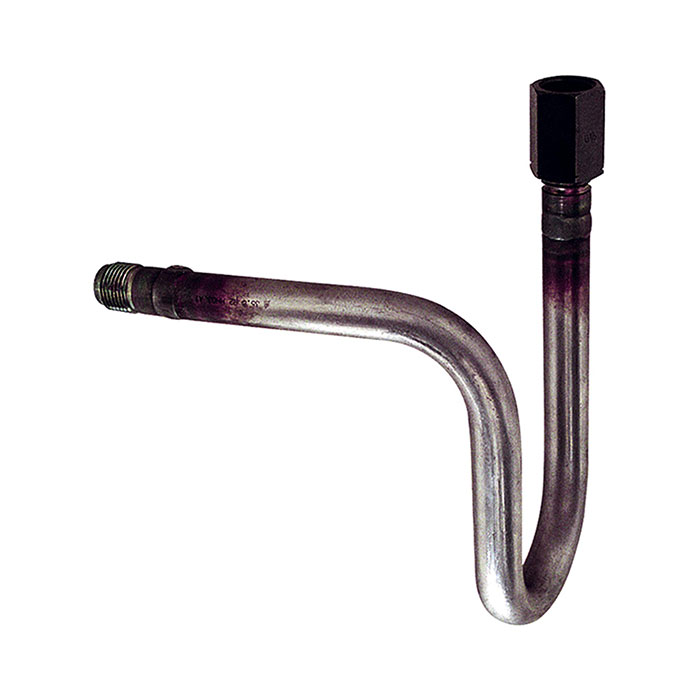

![[102675] RIEGLER Syphon in U shape, connection taps, G 1/2, CrNi steel 1.4571](/web/image/product.template/170647/image_128/%5B102675%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20connection%20taps%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=eecd683)
|
Type number: 9073 |
75.21 € | |

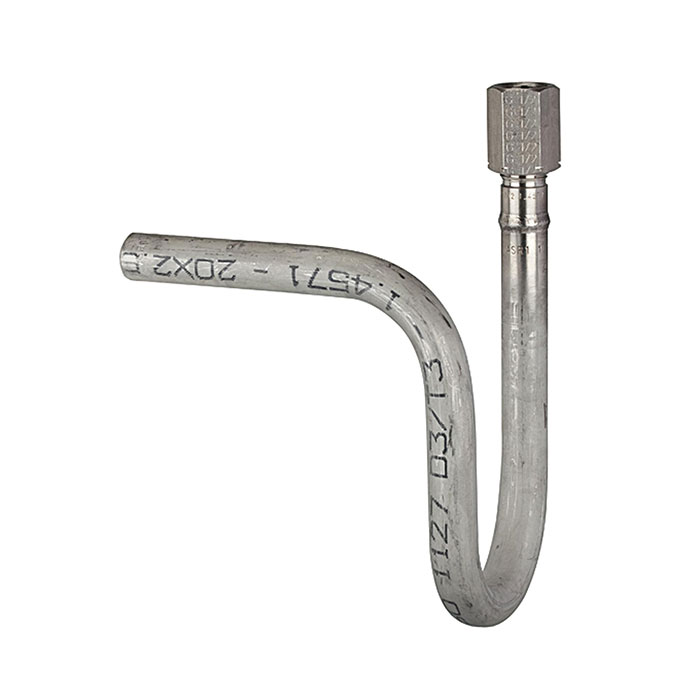

![[102677] RIEGLER Syphon in U shape, welded connection, G 1/2, CrNi steel 1.4571](/web/image/product.template/170649/image_128/%5B102677%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=d0ac1de)
|
Type number: 9075 |
66.81 € | |

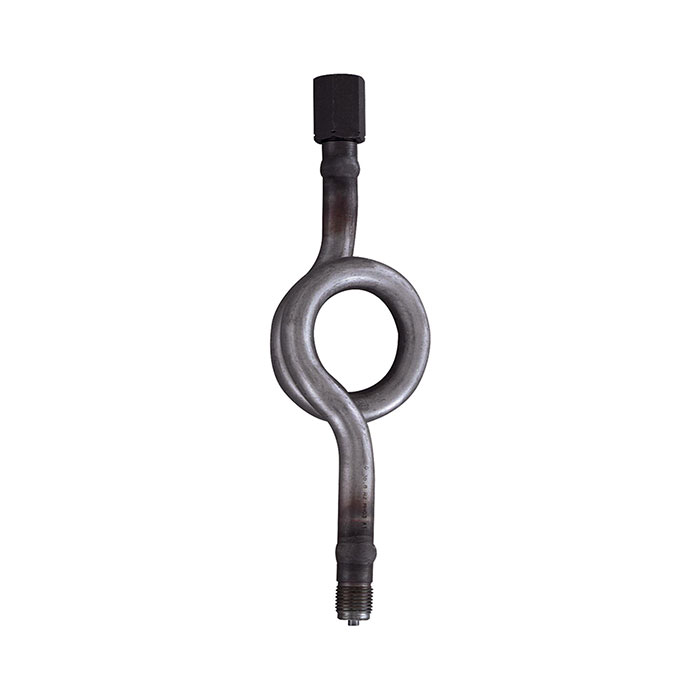

![[102679] RIEGLER Syphon in circular shape, connection tapss, G 1/2, CrNi steel](/web/image/product.template/170651/image_128/%5B102679%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20connection%20tapss%2C%20G%201-2%2C%20CrNi%20steel?unique=d6b2261)
|
Type number: 9083 |
75.21 € | |

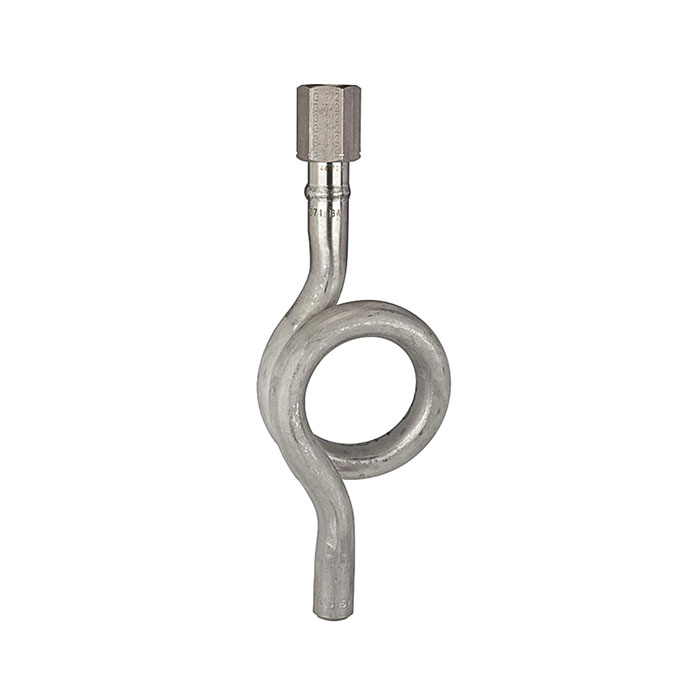

![[102681] RIEGLER Syphon in circular shape, welded connection, G 1/2, CrNi steel](/web/image/product.template/170653/image_128/%5B102681%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20CrNi%20steel?unique=8f41801)
|
Type number: 9085 |
88.07 € | |
![[102684] RIEGLER Impact reducer for pressure gauge, G 1/2, stainless steel 1.4571](/web/image/product.template/170656/image_128/%5B102684%5D%20RIEGLER%20Impact%20reducer%20for%20pressure%20gauge%2C%20G%201-2%2C%20stainless%20steel%201.4571?unique=ba39c3f)
|
Type number: 9018/ES |
28.31 € | |

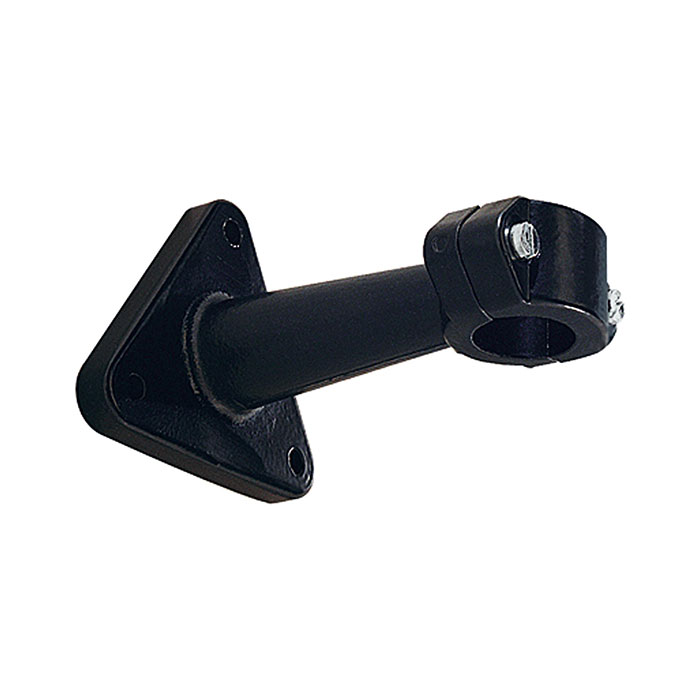

![[102686] RIEGLER Measurement device holder, Extension 60, black painted aluminium](/web/image/product.template/170658/image_128/%5B102686%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%2060%2C%20black%20painted%20aluminium?unique=244b9eb)
|
Type number: 9094 |
19.39 € | |
![[102688] RIEGLER Measurement device holder, Extension 160, black painted aluminium](/web/image/product.template/170660/image_128/%5B102688%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%20160%2C%20black%20painted%20aluminium?unique=1c3c167)
|
Type number: 9096 |
27.77 € | |
![[102689] RIEGLER Measurement device holder, Extension 100, CrNi steel 1.4571](/web/image/product.template/170661/image_128/%5B102689%5D%20RIEGLER%20Measurement%20device%20holder%2C%20Extension%20100%2C%20CrNi%20steel%201.4571?unique=10f614a)
|
Type number: 9098 |
40.75 € | |

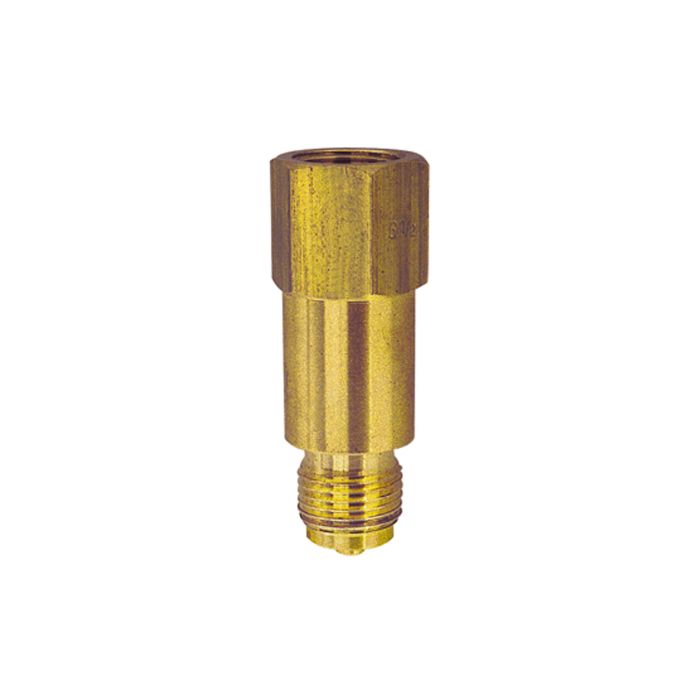

![[102692] RIEGLER Intermediate piece for measurement device holder, G 1/2](/web/image/product.template/170664/image_128/%5B102692%5D%20RIEGLER%20Intermediate%20piece%20for%20measurement%20device%20holder%2C%20G%201-2?unique=7f0b6c9)
|
Type number: 9099 |
27.77 € | |

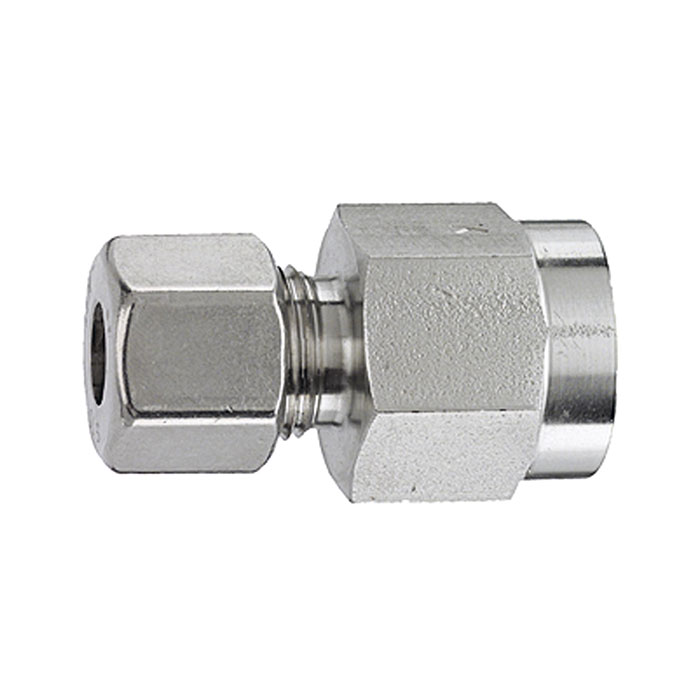

![[112461] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 6 mm](/web/image/product.template/185366/image_128/%5B112461%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=caee004)
|
Type number: ES 205 |
24.13 € | |
![[112462] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 8 mm](/web/image/product.template/185367/image_128/%5B112462%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=4b9b90c)
|
Type number: ES 206 |
23.15 € | |
![[112464] RIEGLER Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 12 mm](/web/image/product.template/185369/image_128/%5B112464%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2012%20mm?unique=8e31657)
|
Type number: ES 208 |
26.12 € | |
![[117285] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, G 3/8 spigot](/web/image/product.template/274830/image_128/%5B117285%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20G%203-8%20spigot?unique=5b65c3f)
|
Type number: 257.27-ES |
64.07 € | |

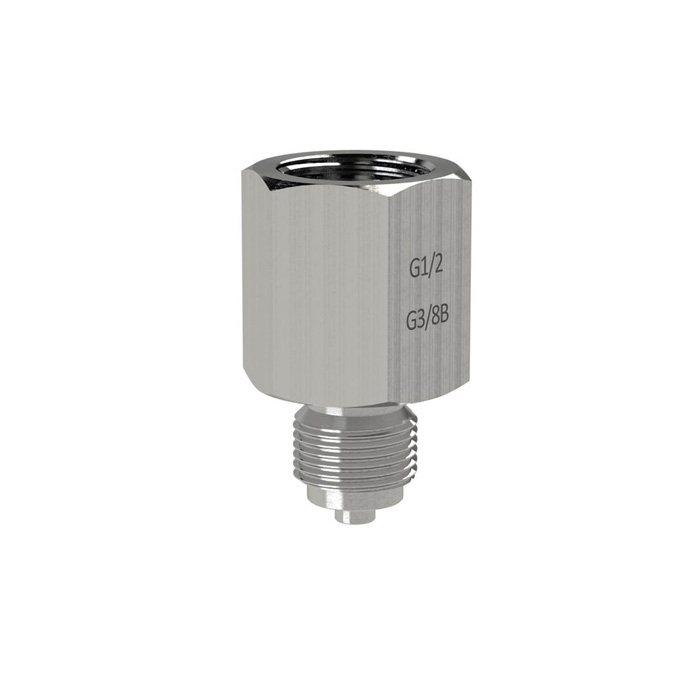

![[123289] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, G 1/4 spigot](/web/image/product.template/281004/image_128/%5B123289%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20G%201-4%20spigot?unique=5da24c0)
|
Type number: 257.26-ES |
71.19 € | |
![[133464] RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, ES 1.4571](/web/image/product.template/278484/image_128/%5B133464%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot-turnable%20socket%20G%201-2%2C%20ES%201.4571?unique=15682be)
|
Type number: MAVES12B |
320.10 € | |
![[135444] RIEGLER Pressure gauge connection nipple, ES, G 1/2 socket, M20x1.5 spigot](/web/image/product.template/278492/image_128/%5B135444%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20ES%2C%20G%201-2%20socket%2C%20M20x1.5%20spigot?unique=c6c33a9)
|
Type number: 257.30-ES |
71.19 € | |

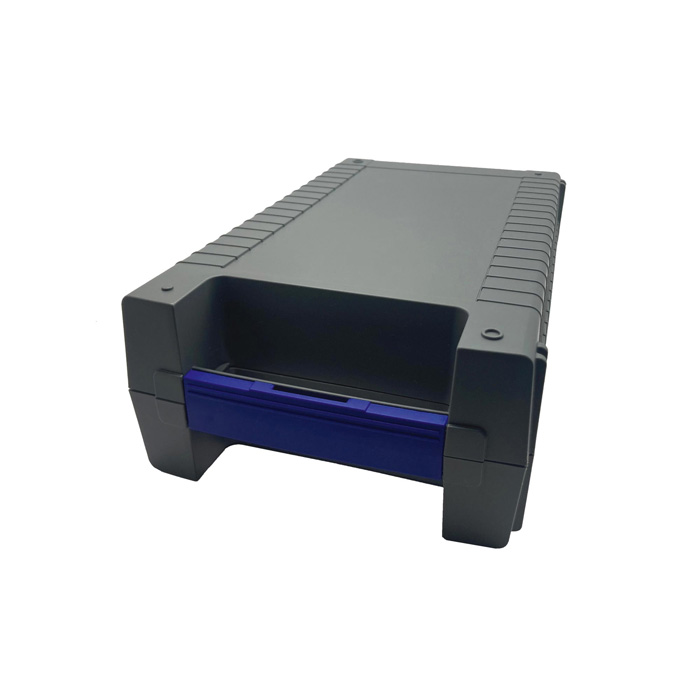

![[138520] RIEGLER Plastic case for digital pressure gauge type CPG1200 or CPG1500](/web/image/product.template/278547/image_128/%5B138520%5D%20RIEGLER%20Plastic%20case%20for%20digital%20pressure%20gauge%20type%20CPG1200%20or%20CPG1500?unique=78f12ba)
|
Type number: K.CPG |
75.14 € | |

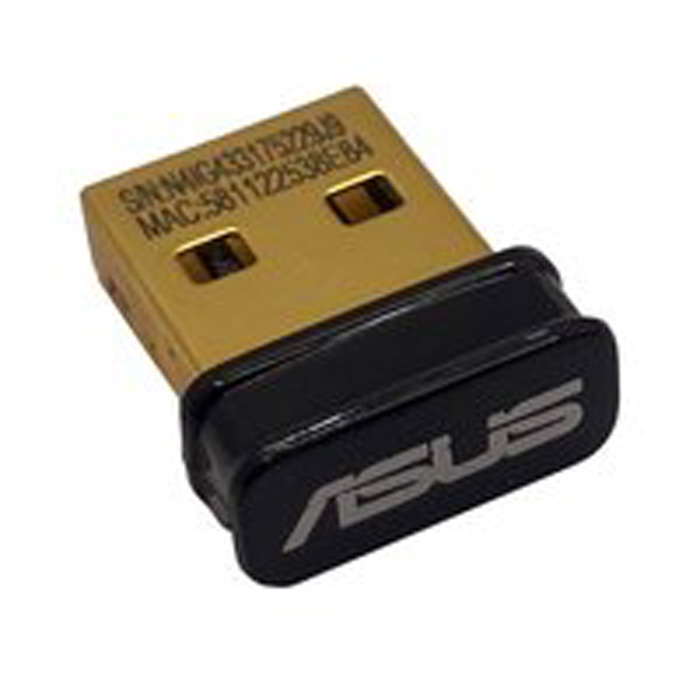

![[139151] RIEGLER Bluetooth® USB stick for digital pressure gauge type CPG1500](/web/image/product.template/278570/image_128/%5B139151%5D%20RIEGLER%20Bluetooth%C2%AE%20USB%20stick%20for%20digital%20pressure%20gauge%20type%20CPG1500?unique=e1fd1ae)
|
Type number: USBS.CPG1500 |
51.23 € | |

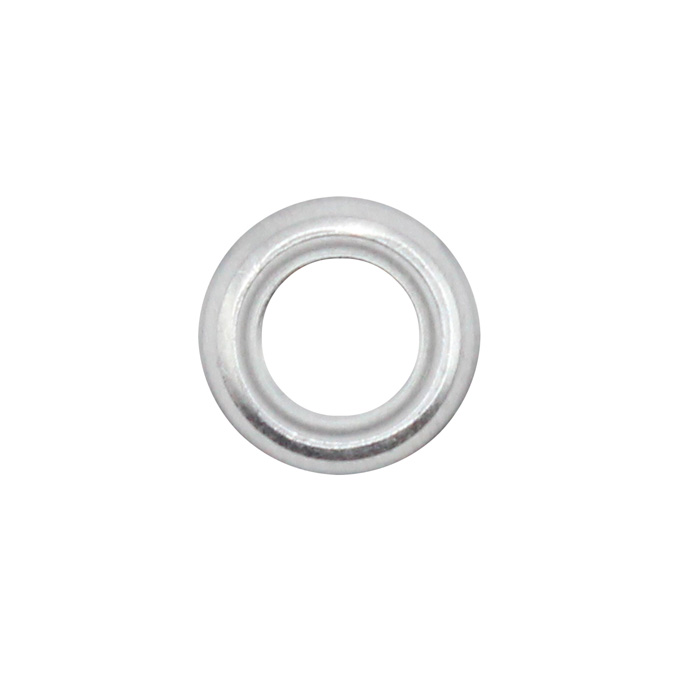

![[139319] RIEGLER Mano profile seal, for thread G 3/8, G 1/2, M20x1.5,ES 1.4571](/web/image/product.template/278580/image_128/%5B139319%5D%20RIEGLER%20Mano%20profile%20seal%2C%20for%20thread%20G%203-8%2C%20G%201-2%2C%20M20x1.5%2CES%201.4571?unique=3dd631a)
|
Type number: 257.03-ES |
7.22 € | |

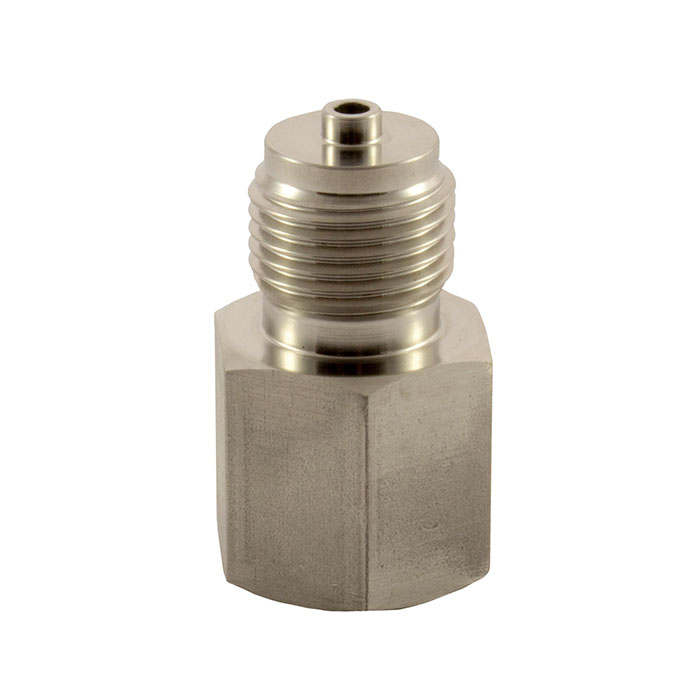

![[143860] RIEGLER Pressure gauge in-line filter, G 1/2 IT, G 1/2 ET, 200 µm](/web/image/product.template/210867/image_128/%5B143860%5D%20RIEGLER%20Pressure%20gauge%20in-line%20filter%2C%20G%201-2%20IT%2C%20G%201-2%20ET%2C%20200%20%C2%B5m?unique=2b1a1aa)
|
Type number: 9031 |
54.09 € | |

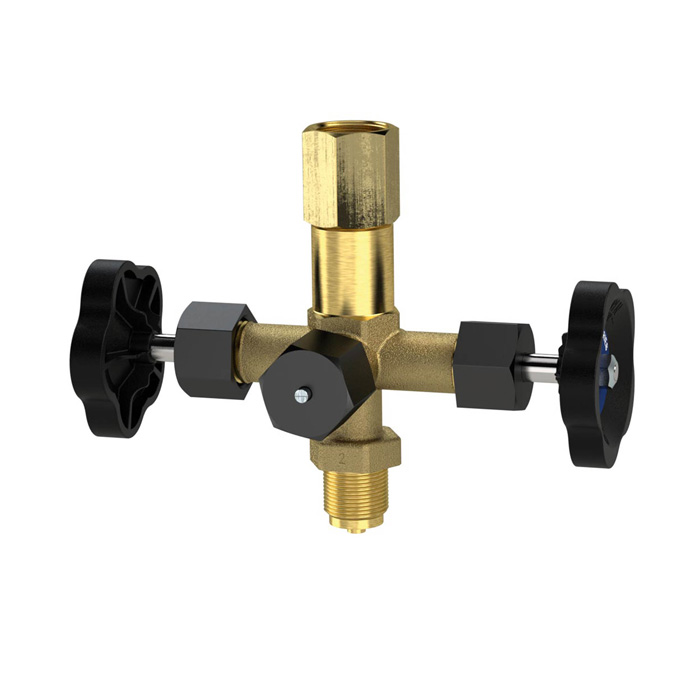

![[169712] RIEGLER Mano-Dop. shut-off valve, spigot clamping sleeve G 1/2, ES 1.4571](/web/image/product.template/276010/image_128/%5B169712%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot%20clamping%20sleeve%20G%201-2%2C%20ES%201.4571?unique=284b410)
|
Typennummer: MAVES12A |
165.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

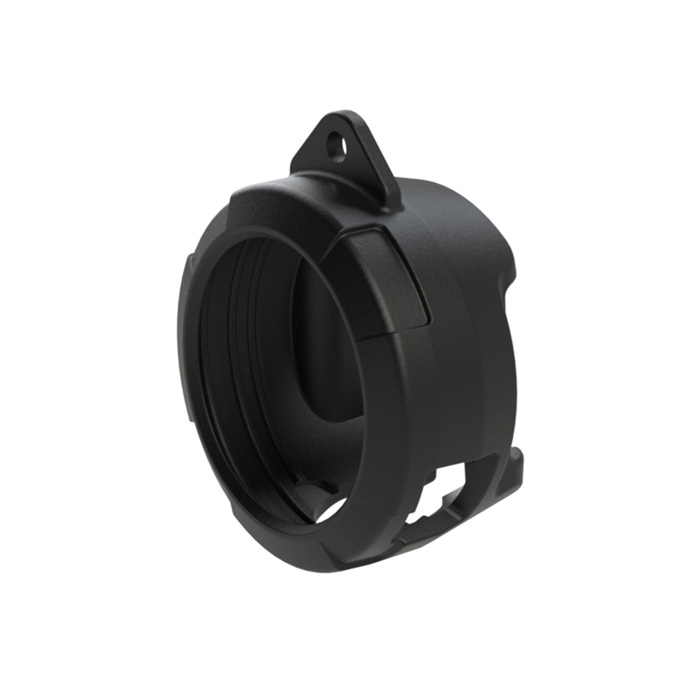

![[139137] RIEGLER Silicone housing protection cap for digital pressure gauge type CPG1500](/web/image/product.template/278569/image_128/%5B139137%5D%20RIEGLER%20Silicone%20housing%20protection%20cap%20for%20digital%20pressure%20gauge%20type%20CPG1500?unique=f7be337)
|
