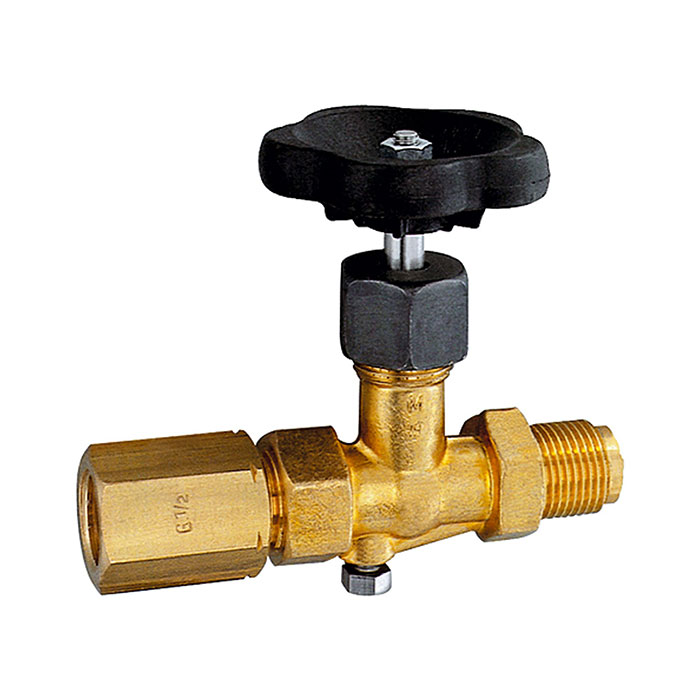

RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9016/ES
EAN: 4047322122856
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102664EAN :
4047322122856Category :
Accessories for Pressure GaugesWeight :
0.52 kgPressure gauge shut-off valve, spigot - clamping sleeve, DIN 16270, form A, made of stainless steel 1.4571, G 1/2, PN 400 bar, SW 27, max. 200 °C
| Housing | Stainless steel 1.4571 |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 400 bar |
| Execution | Spigot / clamping sleeve |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Valve spindle | Stainless steel |
| Valve cone | Stainless steel |
| Union nut | Stainless steel |
| Clamping sleeve | Stainless steel |
