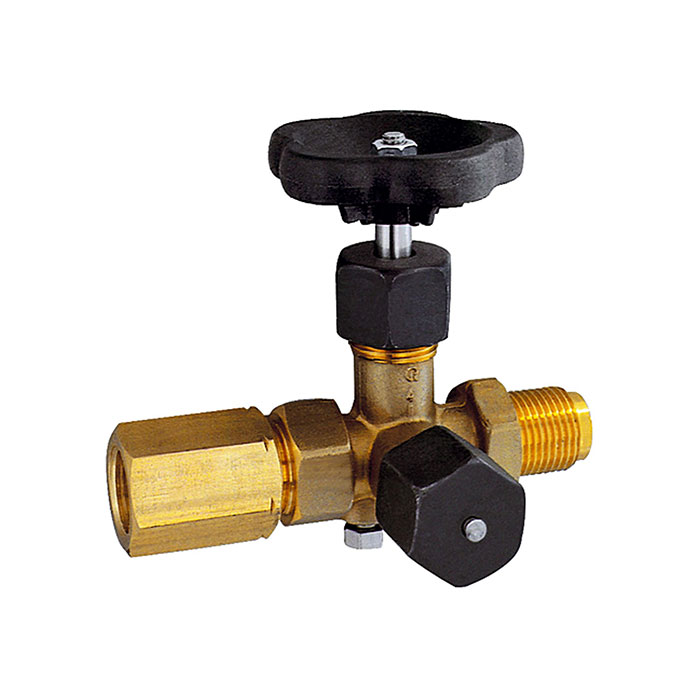

RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9115/ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102669EAN :
4047322123334Category :
Accessories for Pressure GaugesWeight :
0.73 kgRIEGLER Mano shut-off valve made of stainless steel 1.4571, for pressure measurement, G 1/2 - type 9115/ES
The RIEGLER Mano shut-off valve, spigot clamping sleeve, DIN16271, ES 1.4571, G 1/2 adds protection and connection functions to pressure gauges. The housing is made of stainless steel 1.4571 with PTFE seals. The operating temperature is between -20 °C and 200 °C. Connection thread G 1/2 - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge assembly.
| Housing | Stainless steel 1.4571 |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 400 bar |
| Execution | Spigot / clamping sleeve, with test spigot M20x1.5 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Valve spindle | Stainless steel |
| Valve cone | Stainless steel |
| Union nut | Stainless steel |
| Clamping sleeve | Stainless steel |
