RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, ES 1.4571
Type number: MAVES12B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
133464EAN :
4047322478427Category :
Accessories for Pressure GaugesWeight :
1.01 kgRIEGLER Mano-Dop. shut-off valves made of stainless steel, for pressure measurement, G 1/2 - type MAVES12B
The RIEGLER Mano-Dop. shut-off valve, pivotable socket G 1/2, ES 1.4571 supplements pressure gauges with protection and connection functions. The housing is made of stainless steel with PTFE seals. The operating temperature is between -20 °C and 200 °C. G 1/2 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Housing | Stainless steel |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| Material | Stainless steel 1.4571 |
| PN | 400 bar |
| Execution | Spigot / rotatable socket |
| Valve cone | Stainless steel |
| Union nut | Stainless steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

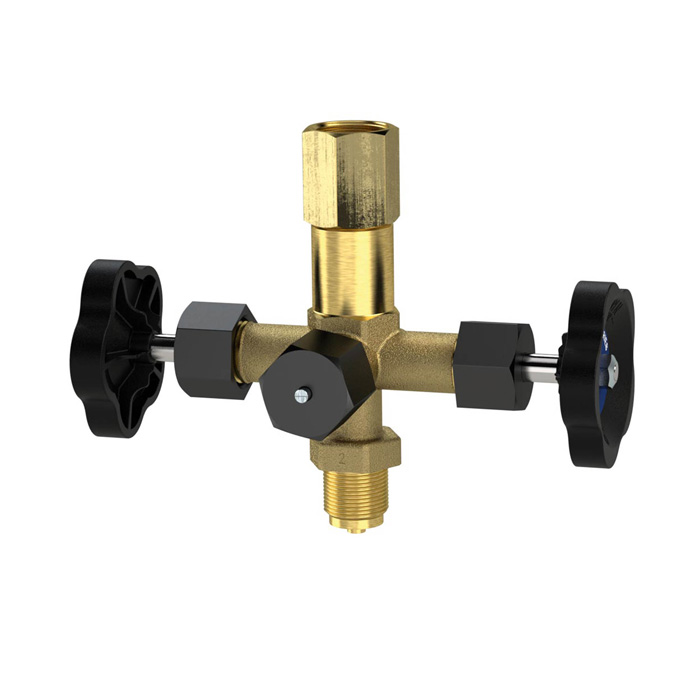

![[143402] RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, brass](/web/image/product.template/277806/image_128/%5B143402%5D%20RIEGLER%20Mano-Dop.%20shut-off%20valve%2C%20spigot-turnable%20socket%20G%201-2%2C%20brass?unique=e3a97b9)
|
