RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2

Price:

98.50 €

English (US)
  2. Shop
  3. Accessories for Pressure Gauges
  4. RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2
RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, ES 1.4571
RIEGLER Mano-Dop. shut-off valve, spigot-turnable socket G 1/2, ES 1.4571
315.72 € 315.72 €
RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2
RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2
54.23 € 54.23 €

RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2

https://www.filcom-technik.de/web/image/product.template/170638/image_1920?unique=77c6ded

Type number: 9080/ES

98.50 € 98.5 EUR 98.50 € VAT Included

114.97 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

102666

EAN :

4047322123136

Category :

Accessories for Pressure Gauges

Weight :

0.65 kg

RIEGLER Mano shut-off valve made of stainless steel 1.4571, for pressure measurement, G 1/2 - type 9080/ES

The RIEGLER Mano shut-off valve, spigot-turn. Socket, DIN16270, ES 1.4571, G 1/2 supplements pressure gauges with protection and connection functions. The housing is made of stainless steel 1.4571 with PTFE seals. The operating temperature is between -20 °C and 200 °C. Connection thread G 1/2 - suitable for common industry standards. Protection and functional extension for pressure gauges.

Field of application

Typical areas of application: Professional pressure gauge installation.

Housing Stainless steel 1.4571
Sealing material PTFE
Handwheel Plastic
Operating temperature min. -20 °C
Operating temperature max. 200 °C
Thread G 1/2
SW 27 mm
PN 400 bar
Execution Spigot / rotatable socket and shaft for gauge holder
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Valve spindle Stainless steel
Valve cone Stainless steel
Union nut Stainless steel
Clamping sleeve Stainless steel

Variants / Alternatives

Product Price

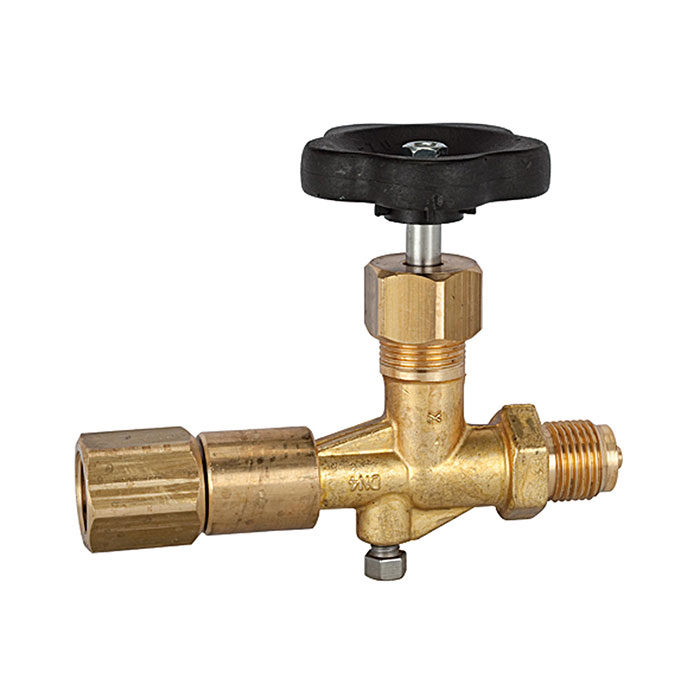

[102665] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2

Type number: 9080/M

 47.83 €
