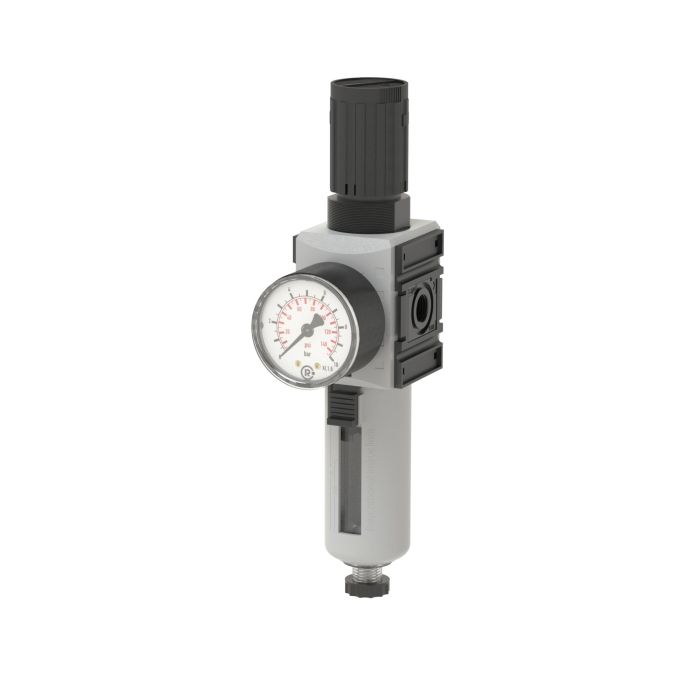

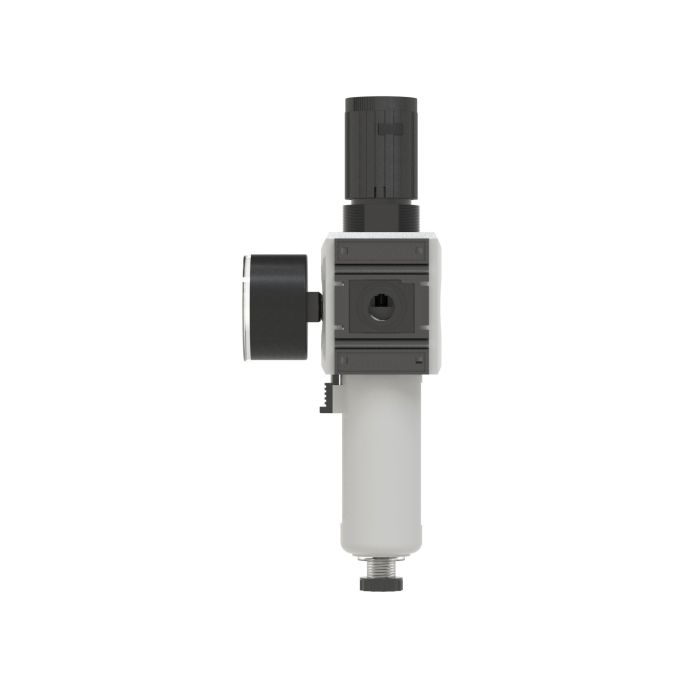

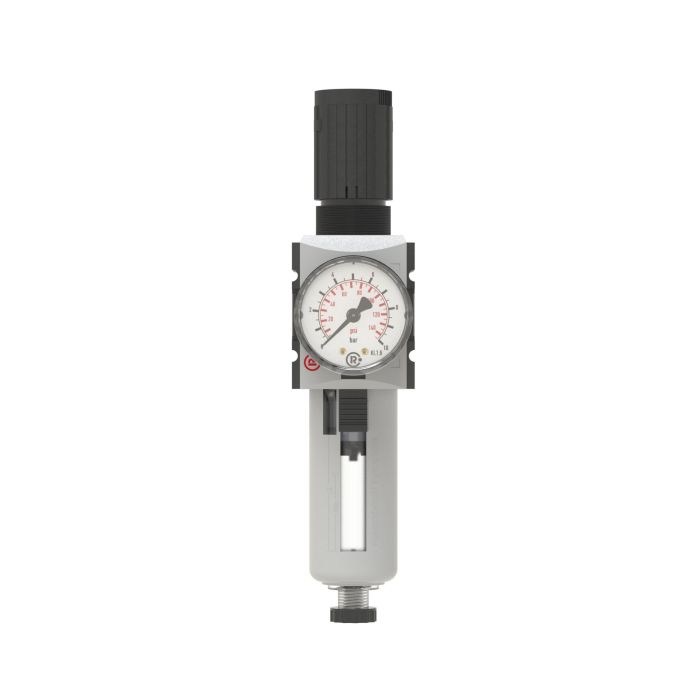

Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.1-1 bar, Semi a.
Type number: FU 813-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "FUTURA" made of PA66 GF60, for compressed air treatment, 0.1 bar - Type FU 813-1
The RIEGLER filter regulator "FUTURA", PC, SK, Mano, BG 2, G 3/8, 0.1-1 bar, HA combines compressed air filtration and pressure regulation in one compact device. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.1 bar to 1 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air, neutral gases. Filter fineness 5 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Control range min. | 0.1 bar |
| Control range max. | 1 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 1.6 bar |
| BG | 2 |

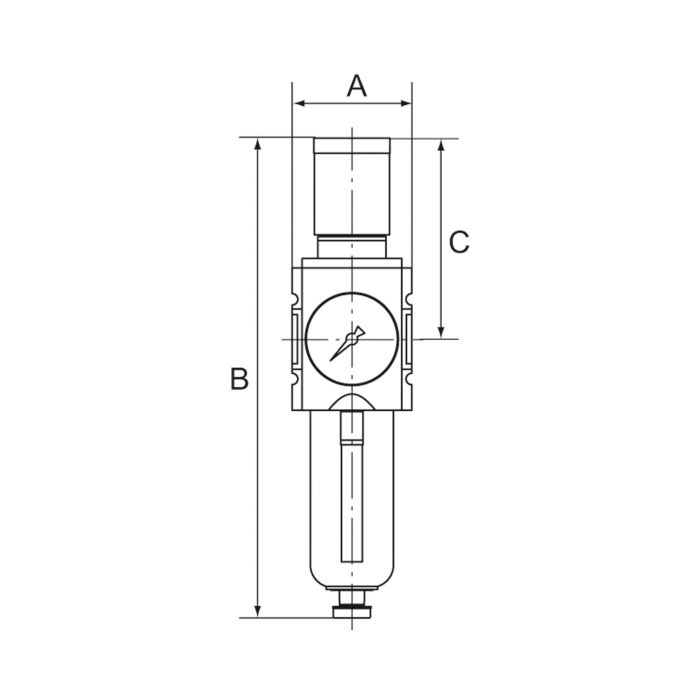

| A | 63 mm |
| B | 257 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 4500 l/min |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

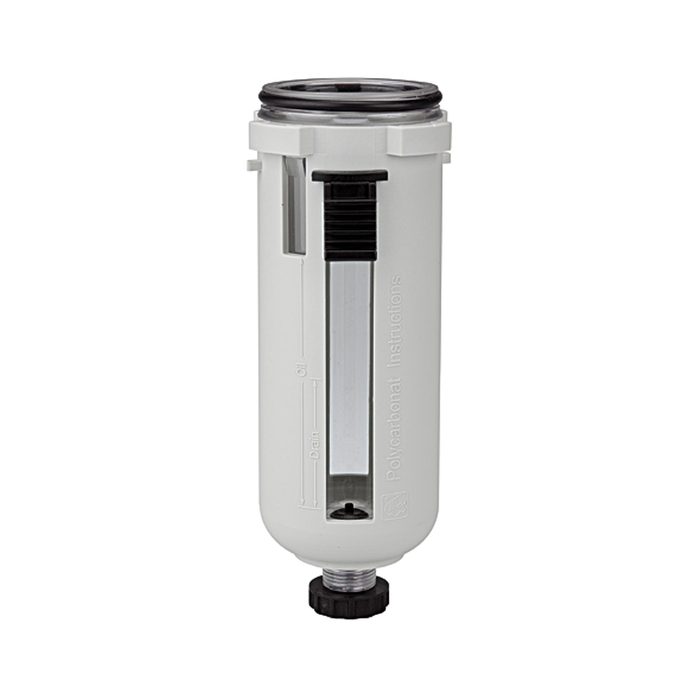

![[100135] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 2, Ablass: HA](/web/image/product.template/123200/image_128/%5B100135%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%202%2C%20Ablass:%20HA?unique=7d265d3)
|
Type number: BSF 12 |
10.33 € | |
![[142533] RIEGLER Standard Mano, plastic, G 1/4 rear, 0 - 1.6 bar/23 psi, Ø 50](/web/image/product.template/277781/image_128/%5B142533%5D%20RIEGLER%20Standard%20Mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%201.6%20bar-23%20psi%2C%20%C3%98%2050?unique=8dbb304)
|
Type number: 202-KD |
6.25 € | |

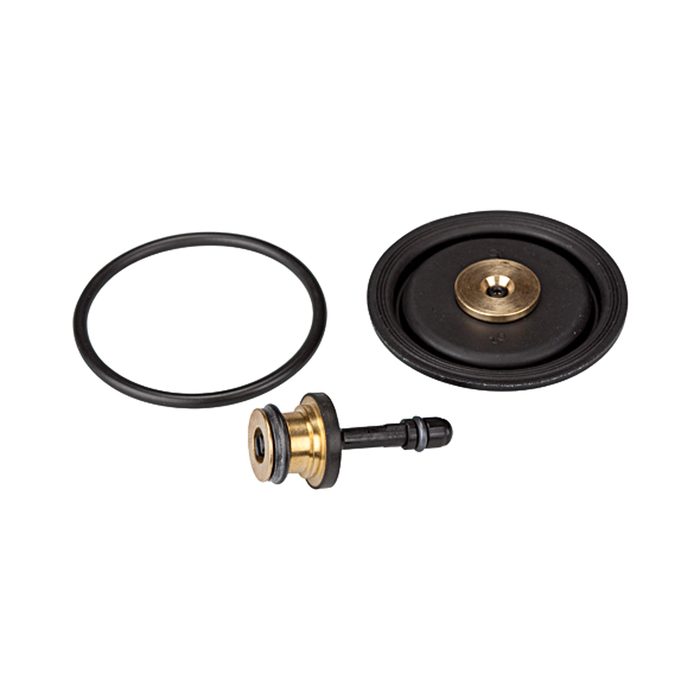

![[100047] Riegler Wear part set for »FUTURA«, size 2, G 3/8 and G 1/2](/web/image/product.template/118209/image_128/%5B100047%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%202%2C%20G%203-8%20and%20G%201-2?unique=73a0674)
|
Type number: 22.7180.4 |
12.57 € | |
