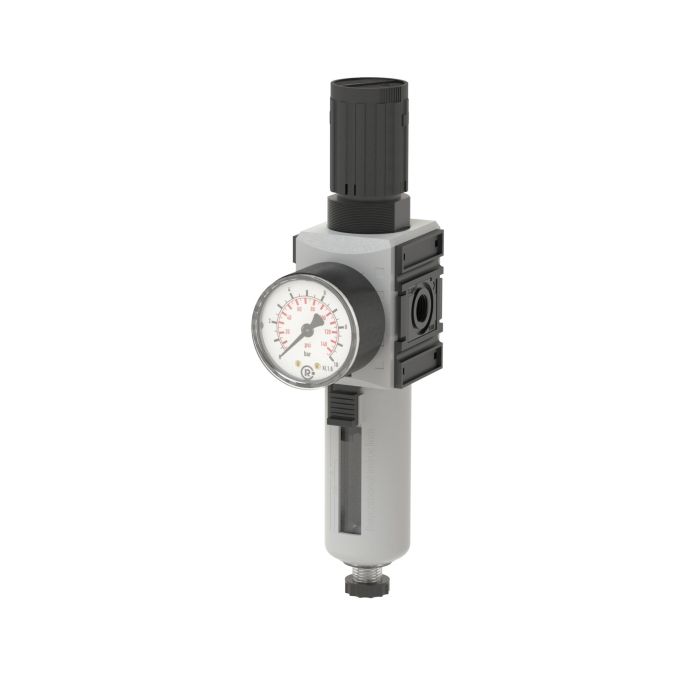

Filterregler FUTURA, Polycarbonatbehälter, Schutzkorb, Manometer, BG 2, G 3/8, 0,2-4 bar, HA
Typennummer: 351.956-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filterregler »FUTURA« mit PC-Behälter, Schutzkorb u. Mano., 5 µm, BG 2, G 3/8, PE 1,5 - 16 bar, Regelbereich 0,2-4 bar, Ablass HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Control range min. | 0.2 bar |
| Control range max. | 4 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 2 |
| A | 63 mm |
| B | 257 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
| Stand Material Compliance | 44621 |
| Flow 1 | 4500 l/min |
