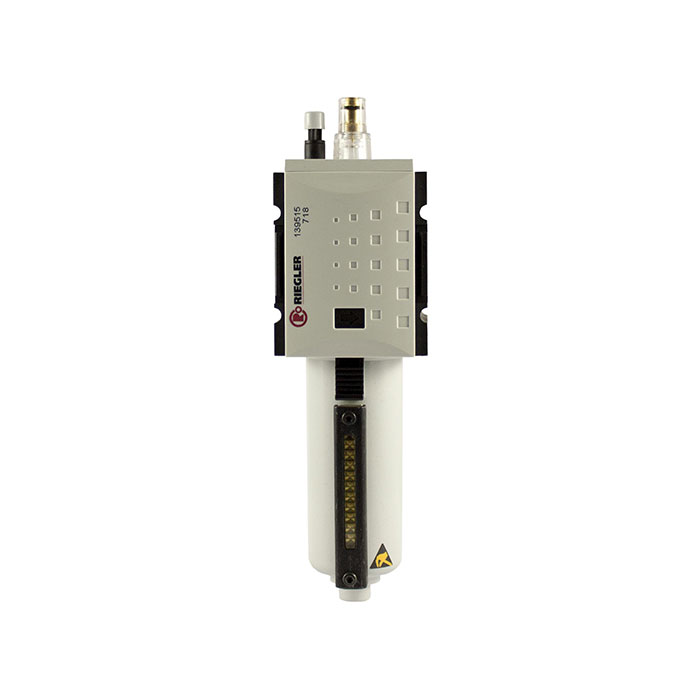

RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 2, G 3/8
Type number: FU 903-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fog oiler "FUTURA" with metal container and made of PA66 GF60, for compressed air treatment, G 3/8 - type FU 903-M
The RIEGLER "FUTURA" mist lubricator with metal container and sight tube, BG 2, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 8000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Metal container with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Dropper attachment | PC |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Thread | G 3/8 |
| Flow rate | 8000 l/min |
| BG | 2 |
| A | 63 mm |
| B | 215 mm |
| C | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156650] RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 1, G 1/4](/web/image/product.template/213386/image_128/%5B156650%5D%20RIEGLER%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%201-4?unique=0d76474)
|
Typennummer: FU 901-M |
50.61 € | |
![[156651] RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 1, G 3/8](/web/image/product.template/213387/image_128/%5B156651%5D%20RIEGLER%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%203-8?unique=beedaa5)
|
Typennummer: FU 902-M |
50.61 € | |
![[139515] RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 2, G 1/2](/web/image/product.template/207995/image_128/%5B139515%5D%20RIEGLER%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%202%2C%20G%201-2?unique=153a338)
|
Type number: FU 904-M |
72.34 € | |
![[156653] RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 4, G 1](/web/image/product.template/213389/image_128/%5B156653%5D%20RIEGLER%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%201?unique=7caa40c)
|
Typennummer: FU 6202-M |
111.10 € | |
![[156652] RIEGLER Mist oiler »FUTURA«, Metal container, Viewing tube, Size 4, G 3/4](/web/image/product.template/213388/image_128/%5B156652%5D%20RIEGLER%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%203-4?unique=3e38c8e)
|
Typennummer: FU 6201-M |
111.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=e7dc313)
|
Type number: H 852 |
10.22 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=b539a84)
|
Type number: WK 102 |
5.13 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=aa62f47)
|
Type number: KP 200 |
2.58 € | |
![[100215] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, f. Nebelöler FUTURA BG 2](/web/image/product.template/123262/image_128/%5B100215%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20f.%20Nebel%C3%B6ler%20FUTURA%20BG%202?unique=c88acd7)
|
Type number: BSL 12 |
14.42 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=0c66b6b)
|
Type number: WK 102-38 |
42.36 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=7f92ced)
|
Type number: WK 102-12 |
42.36 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=953d316)
|
Type number: WK 102-34 |
42.36 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

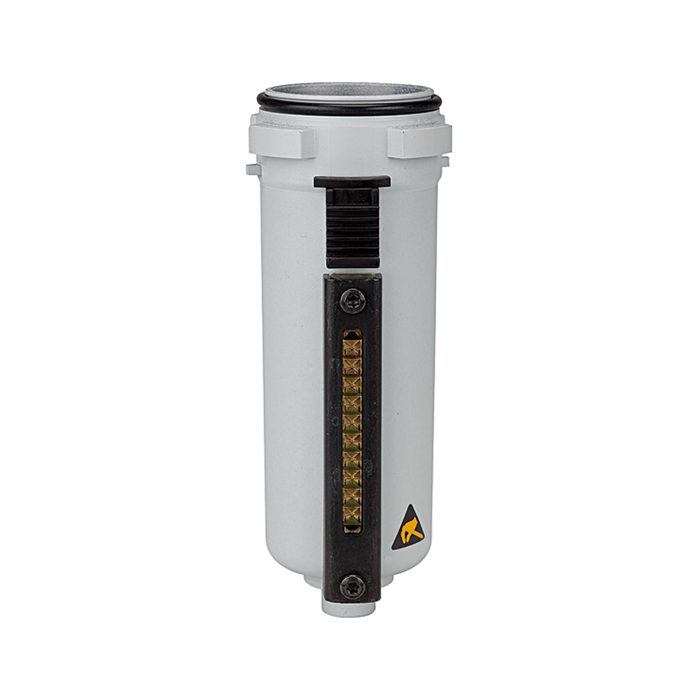

![[100216] Riegler Metal container incl. viewing tube, mist oiler »FUTURA«, Size 2](/web/image/product.template/123263/image_128/%5B100216%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=3f321a6)
|
