RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...2 bar, without mano.
Type number: 5620R100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator "SYNTESI", BG 2, without sockets, p1 = max. 13 bar, p2 = 0 ? 2 bar, T = -10 ? 50 °C, without pressure gauge
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 2 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 139 mm |
| D | 70.5 mm |
| Flow_1 | 4700 Nl/min |
| Flow_2 | 7600 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[139434] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...12 bar, without mano.](/web/image/product.template/278588/image_128/%5B139434%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.12%20bar%2C%20without%20mano.?unique=2a342e7)
|
Type number: 5612R162 |
33.03 € | |
![[139366] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...2 bar, o. Mano.](/web/image/product.template/278584/image_128/%5B139366%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.2%20bar%2C%20o.%20Mano.?unique=e252b01)
|
Type number: 5612R102 |
33.03 € | |
![[139381] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...4 bar, without mano.](/web/image/product.template/278585/image_128/%5B139381%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.4%20bar%2C%20without%20mano.?unique=e972d7f)
|
Type number: 5612R122 |
33.03 € | |
![[139386] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/4, 0...8 bar, without mano.](/web/image/product.template/278586/image_128/%5B139386%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%200--.8%20bar%2C%20without%20mano.?unique=03e0df2)
|
Type number: 5612R142 |
33.03 € | |
![[139354] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...12 bar, o. Mano.](/web/image/product.template/278583/image_128/%5B139354%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=e3edb3d)
|
Type number: 5611R161 |
33.03 € | |
![[139261] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...2 bar, o. Mano.](/web/image/product.template/278579/image_128/%5B139261%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=2b794d7)
|
Type number: 5611R101 |
33.03 € | |
![[139328] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...4 bar, o. Mano.](/web/image/product.template/278581/image_128/%5B139328%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=62cb696)
|
Type number: 5611R121 |
33.03 € | |
![[139351] RIEGLER Pressure regulator "SYNTESI", BG1, G 1/8, 0...8 bar, o. Mano.](/web/image/product.template/278582/image_128/%5B139351%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=eb14c07)
|
Type number: 5611R141 |
33.03 € | |
![[139638] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...12 bar, o. Mano.](/web/image/product.template/278592/image_128/%5B139638%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.12%20bar%2C%20o.%20Mano.?unique=0f4820d)
|
Type number: 5613R163 |
33.03 € | |
![[139476] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/278589/image_128/%5B139476%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=0e33f7d)
|
Type number: 5613R103 |
33.03 € | |
![[139477] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/278590/image_128/%5B139477%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=d9d084c)
|
Type number: 5613R123 |
33.03 € | |
![[139595] RIEGLER Pressure regulator "SYNTESI", BG1, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/278591/image_128/%5B139595%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=51f5970)
|
Type number: 5613R143 |
33.03 € | |
![[139255] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...12 bar, without mano.](/web/image/product.template/278578/image_128/%5B139255%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=a54ebe7)
|
Type number: 5610R160 |
30.81 € | |
![[139220] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...2 bar, without mano.](/web/image/product.template/278575/image_128/%5B139220%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.2%20bar%2C%20without%20mano.?unique=9d8fca5)
|
Type number: 5610R100 |
30.81 € | |
![[139250] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...4 bar, without mano.](/web/image/product.template/278576/image_128/%5B139250%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.4%20bar%2C%20without%20mano.?unique=0131273)
|
Type number: 5610R120 |
30.81 € | |
![[139253] RIEGLER Pressure regulator "SYNTESI", BG1, without sockets, 0...8 bar, without mano.](/web/image/product.template/278577/image_128/%5B139253%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=8e06306)
|
Type number: 5610R140 |
30.81 € | |
![[139830] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...12 bar, o. Mano.](/web/image/product.template/278613/image_128/%5B139830%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.12%20bar%2C%20o.%20Mano.?unique=9eba243)
|
Type number: 5626R166 |
61.44 € | |
![[139814] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...2 bar, o. Mano.](/web/image/product.template/278610/image_128/%5B139814%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.2%20bar%2C%20o.%20Mano.?unique=4405c32)
|
Type number: 5626R106 |
61.42 € | |
![[139828] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...4 bar, o. Mano.](/web/image/product.template/278611/image_128/%5B139828%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.4%20bar%2C%20o.%20Mano.?unique=3b730ca)
|
Type number: 5626R126 |
61.44 € | |
![[139829] RIEGLER Pressure regulator "SYNTESI", BG2, G 1, 0...8 bar, o. Mano.](/web/image/product.template/278612/image_128/%5B139829%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%200--.8%20bar%2C%20o.%20Mano.?unique=9b635e7)
|
Type number: 5626R146 |
61.44 € | |
![[139764] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...12 bar, without mano.](/web/image/product.template/278605/image_128/%5B139764%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.12%20bar%2C%20without%20mano.?unique=56888dc)
|
Type number: 5624R164 |
52.73 € | |
![[139748] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...2 bar, o. Mano.](/web/image/product.template/278601/image_128/%5B139748%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.2%20bar%2C%20o.%20Mano.?unique=e881de2)
|
Type number: 5624R104 |
52.73 € | |
![[139750] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...4 bar, o. Mano.](/web/image/product.template/278603/image_128/%5B139750%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.4%20bar%2C%20o.%20Mano.?unique=da62ea7)
|
Type number: 5624R124 |
52.73 € | |
![[139752] RIEGLER Pressure regulator "SYNTESI", BG2, G 1/2, 0...8 bar, without mano.](/web/image/product.template/278604/image_128/%5B139752%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%200--.8%20bar%2C%20without%20mano.?unique=ccf1478)
|
Type number: 5624R144 |
52.73 € | |
![[139805] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...12 bar, without mano.](/web/image/product.template/278609/image_128/%5B139805%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.12%20bar%2C%20without%20mano.?unique=fe5e321)
|
Type number: 5625R165 |
61.44 € | |
![[139786] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...2 bar, without mano.](/web/image/product.template/278606/image_128/%5B139786%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.2%20bar%2C%20without%20mano.?unique=f96746f)
|
Type number: 5625R105 |
61.42 € | |
![[139794] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...4 bar, o. Mano.](/web/image/product.template/278607/image_128/%5B139794%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.4%20bar%2C%20o.%20Mano.?unique=eea5efa)
|
Type number: 5625R125 |
61.44 € | |
![[139804] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/4, 0...8 bar, o. Mano.](/web/image/product.template/278608/image_128/%5B139804%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%200--.8%20bar%2C%20o.%20Mano.?unique=b06f74c)
|
Type number: 5625R145 |
61.44 € | |
![[139745] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...12 bar, without mano.](/web/image/product.template/278600/image_128/%5B139745%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.12%20bar%2C%20without%20mano.?unique=cf9748c)
|
Type number: 5623R163 |
52.73 € | |
![[139683] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...2 bar, o. Mano.](/web/image/product.template/278597/image_128/%5B139683%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.2%20bar%2C%20o.%20Mano.?unique=98a2c55)
|
Type number: 5623R103 |
52.73 € | |
![[139700] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...4 bar, o. Mano.](/web/image/product.template/278598/image_128/%5B139700%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.4%20bar%2C%20o.%20Mano.?unique=5fd98c1)
|
Type number: 5623R123 |
52.73 € | |
![[139705] RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...8 bar, o. Mano.](/web/image/product.template/278599/image_128/%5B139705%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%200--.8%20bar%2C%20o.%20Mano.?unique=6b4f997)
|
Type number: 5623R143 |
52.73 € | |
![[139673] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...12 bar, without mano.](/web/image/product.template/278596/image_128/%5B139673%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.12%20bar%2C%20without%20mano.?unique=5d0cd79)
|
Type number: 5620R160 |
41.52 € | |
![[139663] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...4 bar, without mano.](/web/image/product.template/278594/image_128/%5B139663%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.4%20bar%2C%20without%20mano.?unique=27d35d1)
|
Type number: 5620R120 |
41.52 € | |
![[139665] RIEGLER Pressure regulator "SYNTESI", BG2, without sockets, 0...8 bar, without mano.](/web/image/product.template/278595/image_128/%5B139665%5D%20RIEGLER%20Pressure%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%200--.8%20bar%2C%20without%20mano.?unique=0fb2a39)
|
Type number: 5620R140 |
41.52 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101222] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=9ba7c8f)
|
Type number: 214-KD |
6.25 € | |
![[101674] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/169646/image_128/%5B101674%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=bcf3362)
|
Type number: 203-KD |
6.25 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=62cef6e)
|
Type number: 9210011 |
5.77 € | |
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=1962fbf)
|
Type number: 9210012 |
5.77 € | |
![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=c5ebcce)
|
Type number: 9210013 |
10.13 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=d0d9255)
|
Type number: 9210014 |
10.13 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=1fd3200)
|
Type number: 9210010 |
6.79 € | |
![[145469] RIEGLER Mounting bracket, for "SYNTESI" BG 2, etc.](/web/image/product.template/279225/image_128/%5B145469%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%202%2C%20etc.?unique=8f780a8)
|
Type number: 9400701 |
4.47 € | |
![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=7ef949f)
|
Type number: 9900101 |
13.08 € | |
![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=dac068c)
|
Type number: 9210005 |
2.48 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=a0281fd)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=ab1dcc3)
|
Type number: 9210006 |
6.47 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=83ea627)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=f898abf)
|
Type number: 9062401 |
12.10 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=01d8a17)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=9f2feec)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=03d053e)
|
Type number: 233.03-N |
0.62 € | |
![[145645] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 2 bar](/web/image/product.template/279302/image_128/%5B145645%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%202%20bar?unique=97af60a)
|
Type number: 9210220 |
24.99 € | |
![[145637] RIEGLER SYNTESI" spring, BG 2, 0 - 2 bar](/web/image/product.template/279294/image_128/%5B145637%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%202%20bar?unique=c7e43ba)
|
Type number: 9210195 |
4.66 € | |

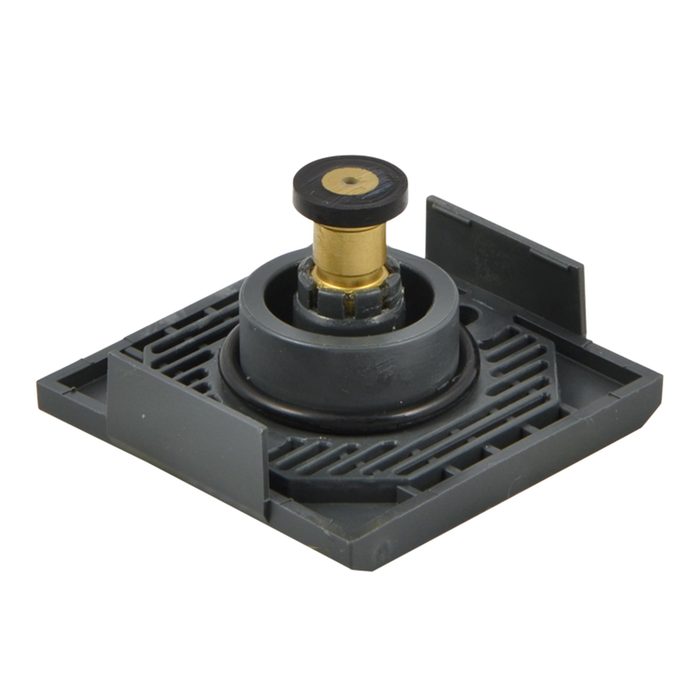

![[145650] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 2](/web/image/product.template/279307/image_128/%5B145650%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202?unique=70ed4af)
|
Type number: 9210230 |
9.04 € | |
