RIEGLER Battery regulator "SYNTESI", BG1, G 1/4, 0...12 bar, o. Mano.
Type number: 5612R262
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Battery regulator "SYNTESI", BG 1, G 1/4, p1 = max. 15 bar, p2 = 0 ? 12 bar, T = -10 ? 50 °C, without pressure gauge
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 12 bar |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 42 mm |
| B | 102 mm |
| D | 51.5 mm |
| Flow 1 | 330 Nl/min |
| Flow 2 | 500 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Spring cover | Technopolymer |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=cf2a69b)
|
Type number: 233.02-N |
0.42 € | |
![[145644] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 12 bar](/web/image/product.template/279301/image_128/%5B145644%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%2012%20bar?unique=c40e2cc)
|
Type number: 9210203 |
12.86 € | |
![[145636] RIEGLER SYNTESI" spring, BG 1, 0 - 12 bar](/web/image/product.template/279293/image_128/%5B145636%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%2012%20bar?unique=a010ec4)
|
Type number: 9210193 |
2.42 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=5a25002)
|
Type number: 9210002 |
1.86 € | |

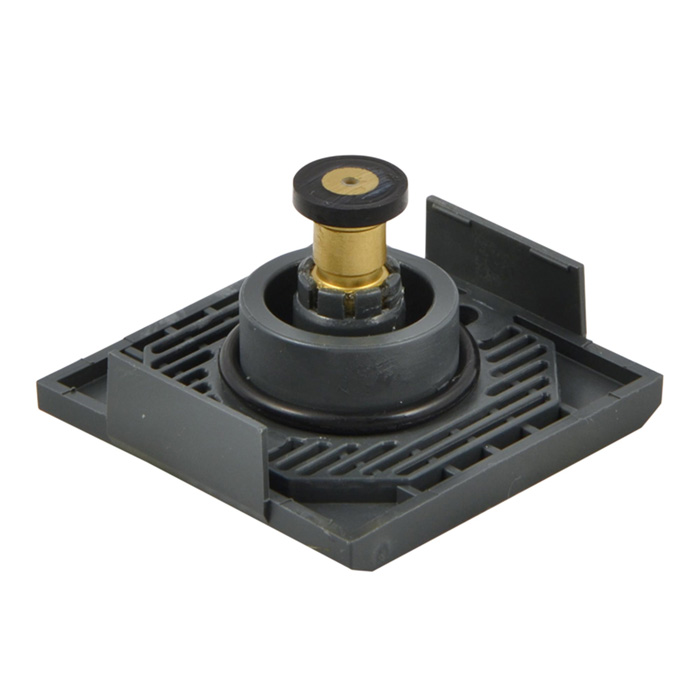

![[145649] RIEGLER Valve seat for pressure regulator "SYNTESI", BG 1](/web/image/product.template/279306/image_128/%5B145649%5D%20RIEGLER%20Valve%20seat%20for%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201?unique=37c792f)
|
Type number: 9210210 |
5.57 € | |
